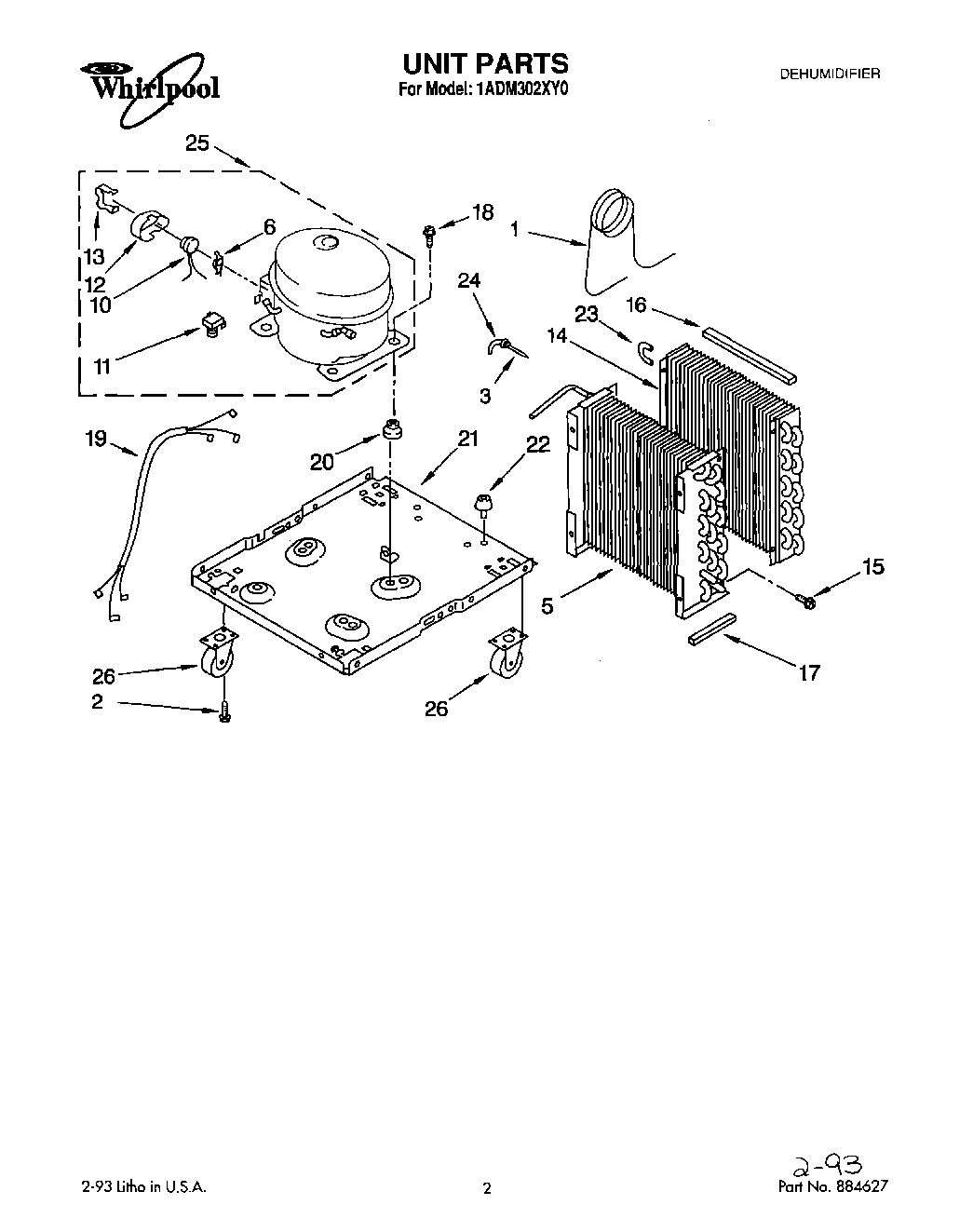

1ADM302XY0 01 – UNIT

Products

Position	Product
1	Tube, Restrictor (Length 35.0“)
2	WPW10141604 Whirlpool Screw
3	Strainer
5	Condenser
6	Spring, Overload
10	Overload (Production)
10	Overload (Service)
11	Relay, Start (Service)
11	Relay, Start (Production)
12	Cover, Terminal
12	Cover, Terminal (Production)
13	Cover, Spring
13	Strap
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Seal, Evaporator Top
17	Seal
18	Screw, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
22	Foot (2)
23	Bend, Return Evaporator (11)
24	Bend, Return Evaporator (4)
25	Compressor, Service (Complete Assembly)
26	Caster (4)
