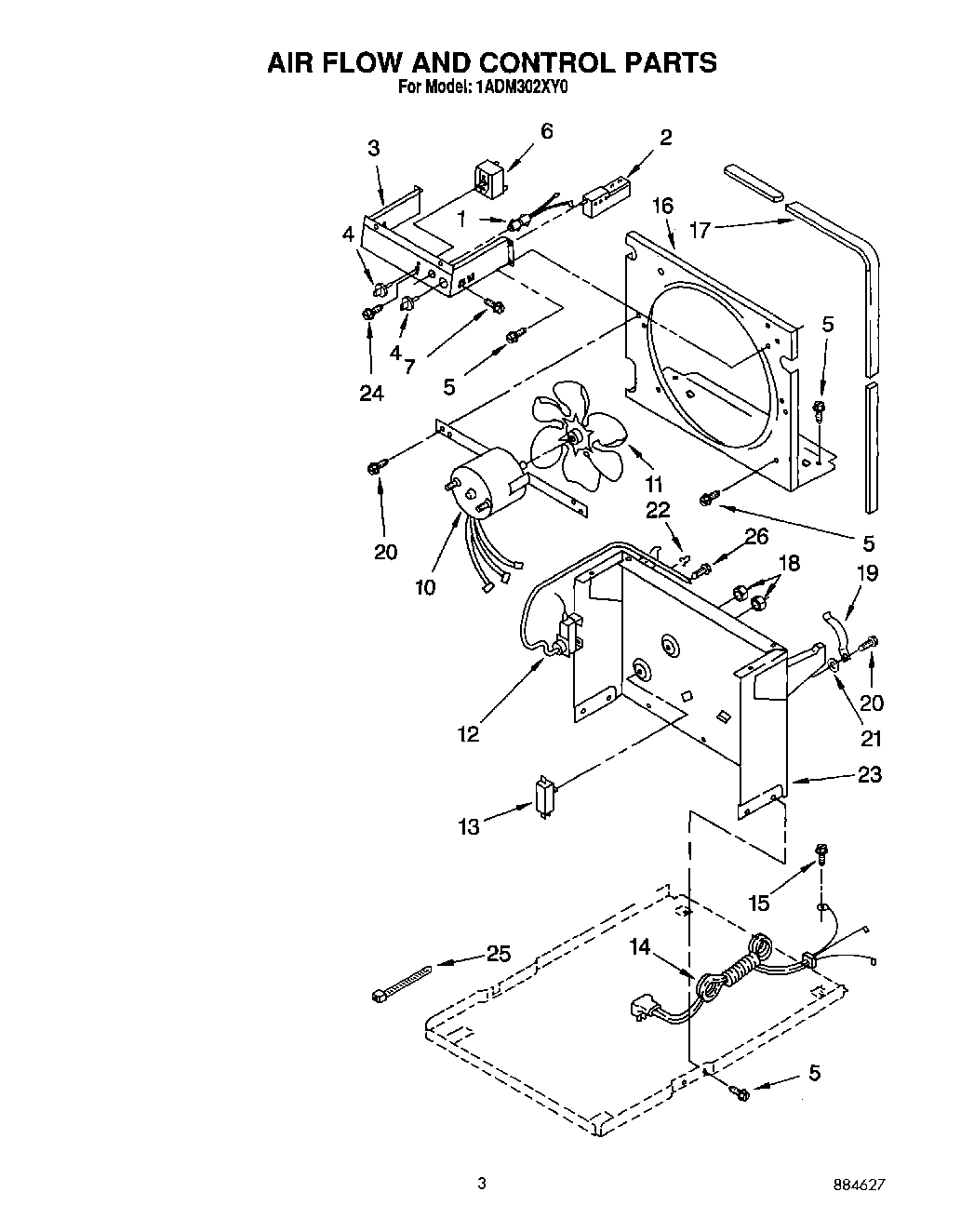

1ADM302XY0 02 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Control
4Knob, Humidistat Control
5Screw, 8 x 3/8
6Switch, Rotary
7WP3177991 Whirlpool Screw
10Motor, Fan
11Blade, Fan
12Thermostat, De-Icer
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.062 Thickness)
22Clamp, Tube To Evaporator Mtg (2)
23Support
24Screw
25WPW10339879 Whirlpool Wire Tie
26WP488234 Whirlpool Air Conditioner Screw
