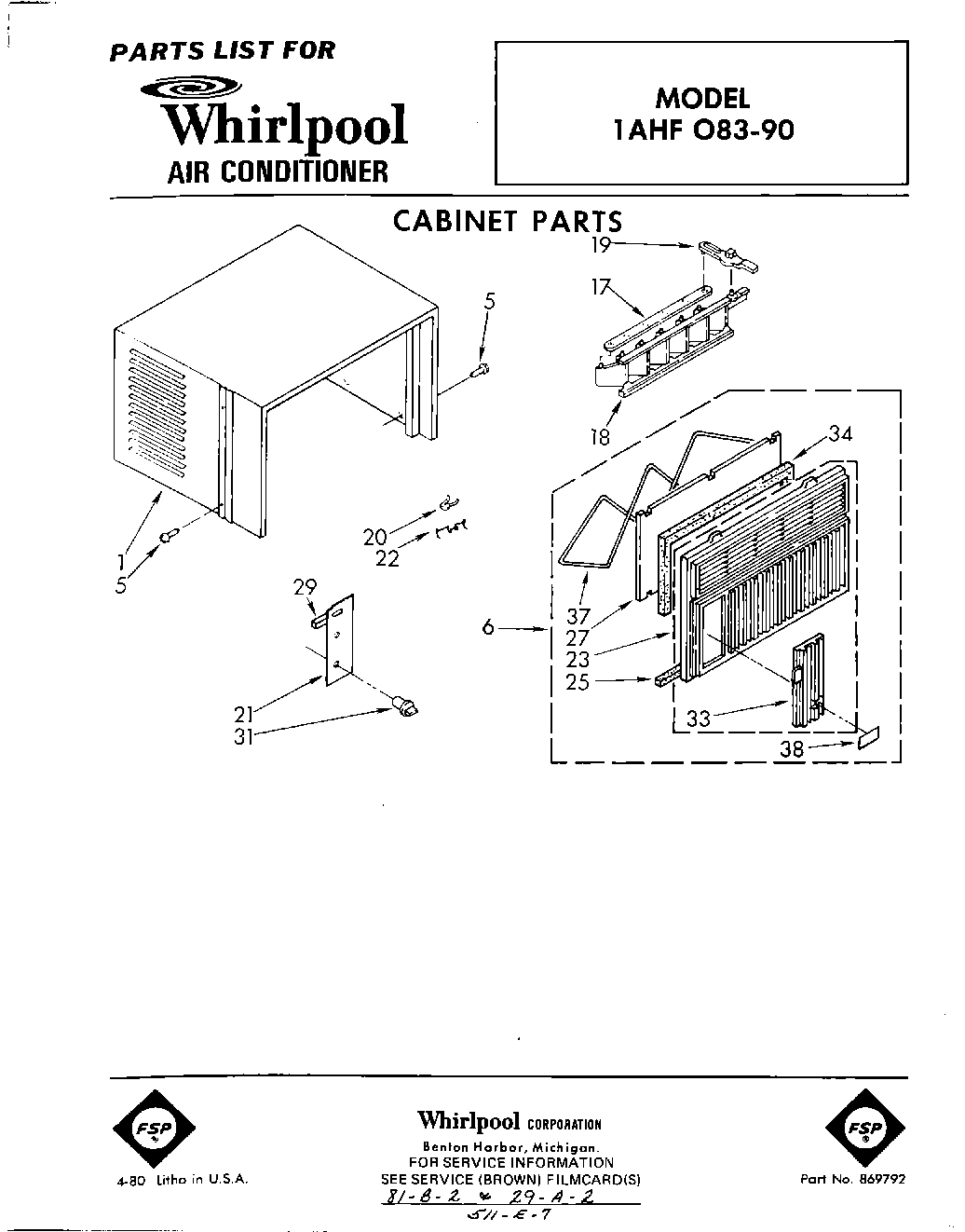

1AHF08390 01 – SECTION

Products

PositionProduct
1Cabinet
5WP489128 Whirlpool Refrigerator Screw
6Cabinet Assembly, Front
17Link, Louver
18Louver, Vertical
19Handle, Louver
20Detent Spring (2)
21Plate, Escutcheon
22Clip (2)
23Front, Frame (Includes Illus. 33)
25Seal, Front
27Filter
29Spacer, Escutcheon Plate (3)
31Knob, Control
33Door, Control
34Seal, Top & Sides
37Retainer, Filter
38Nameplate
