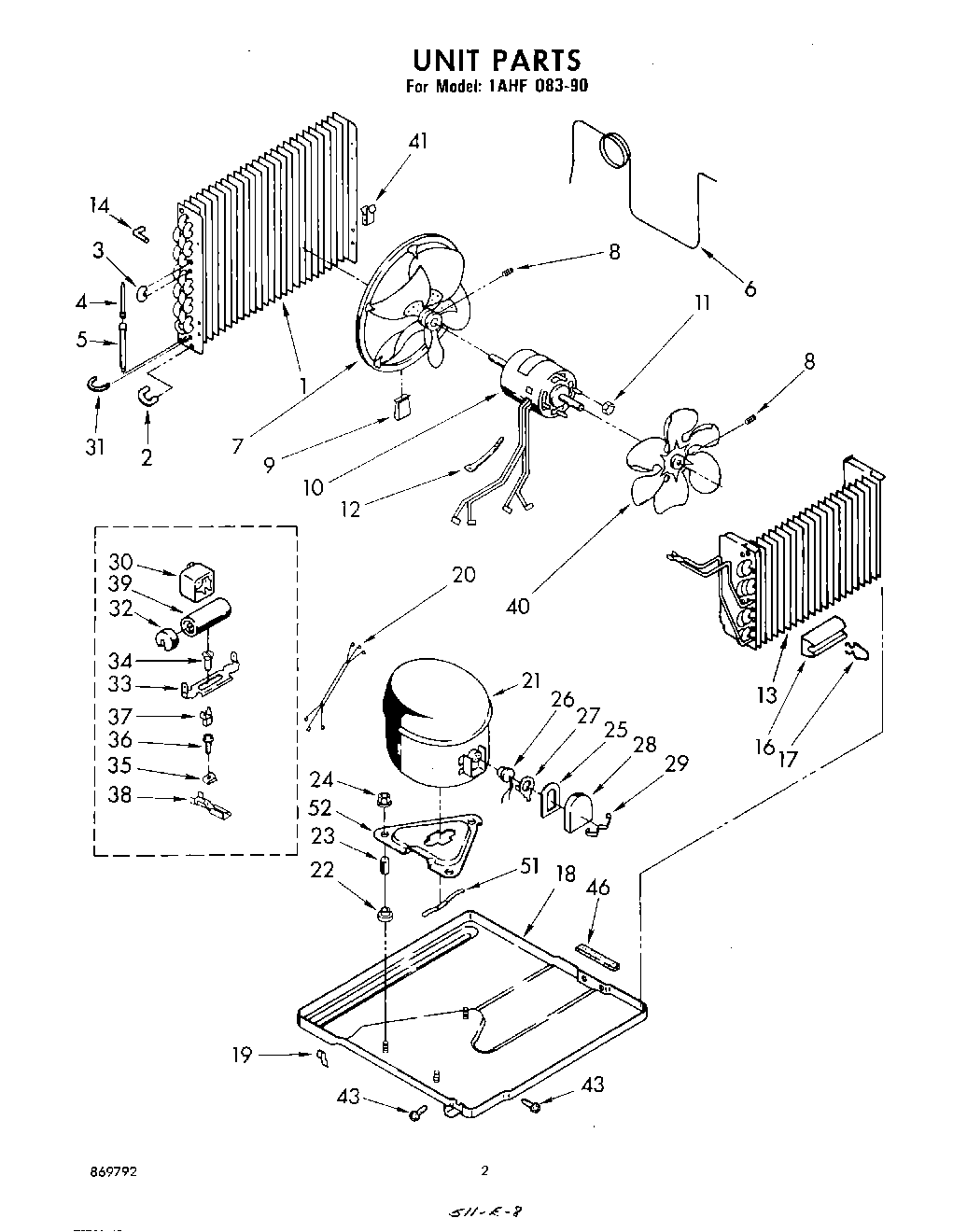

1AHF08390 02 – SECTION

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor
7	Blade, Condenser Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Tube, 90~ Bend
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Tube (2)
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	Relay (Component Of Start Kit)
31	Return Bend (2)
32	Cap, Capacitor (Component Of Start Kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
39	Capacitor, Start
40	Blade, Fan (Evaporator)
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
43	WP308685 Whirlpool Microwave Screw
46	WP854334 Whirlpool Air Conditioner Sealing Strip
51	Spring, Clip
52	WPL 485882
52	WPL 994740
52	WPL 994121
52	WPL 869792
52	WPL 857557
52	978030 Whirlpool Refrigerator Valve
52	212643 Whirlpool Refrigerator Permagum Sealer
52	978026 Whirlpool Refrigerator Primary Valve
52	978027 Whirlpool Refrigerator Primary Valve
52	WP978025 Whirlpool Refrigerator Valve
52	VALVE, ACCESS (1/2“)
52	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
52	Wire, 25“ Roll (Black 12 GA.)
52	Wire, 25“ Roll (White 12 GA.)
52	WPL 799351
52	Oil, Turbine 1 Fl. Oz.
52	Insulation, Fiberglass (1/4“ x 24“ x 48“)
52	Wire, Red, (25 Ft.)
52	Lacquer, Starlight Gray (1/2 Pt. Uncut)
52	No Drip Tape (For Sweating Tubes)
52	484184 Whirlpool Air Conditioner Winter Cover
52	WPL 484220
52	WPL 649939
52	VALVE, ACCESS (5/8“)
