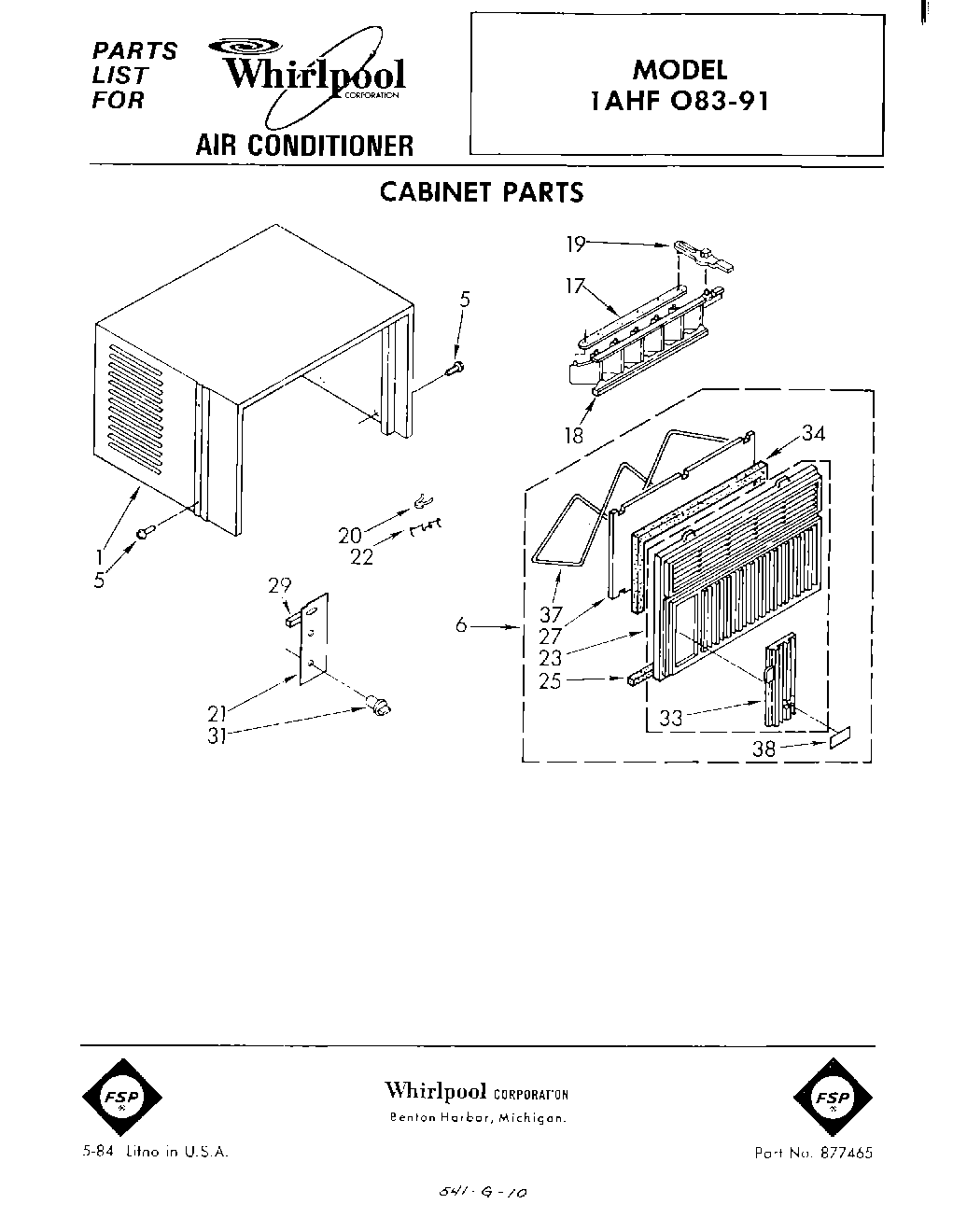

| 1 | Cabinet |
| 5 | WP489128 Whirlpool Refrigerator Screw |
| 6 | Cabinet Assembly, Front |
| 17 | Link, Louver |
| 18 | Louver, Vertical |
| 19 | Handle, Louver |
| 20 | Detent Spring (2) |
| 21 | Plate, Escutcheon |
| 22 | Clip, Mtg. (2) (Base to Front) |
| 23 | Front, Frame (Includes Illus. 33) |
| 25 | Seal, Front |
| 27 | Filter |
| 29 | Spacer, Escutcheon Plate (3) |
| 31 | Knob, Control |
| 33 | Door, Control |
| 34 | Seal, Top & Sides |
| 37 | Retainer, Filter |
| 38 | Nameplate |
