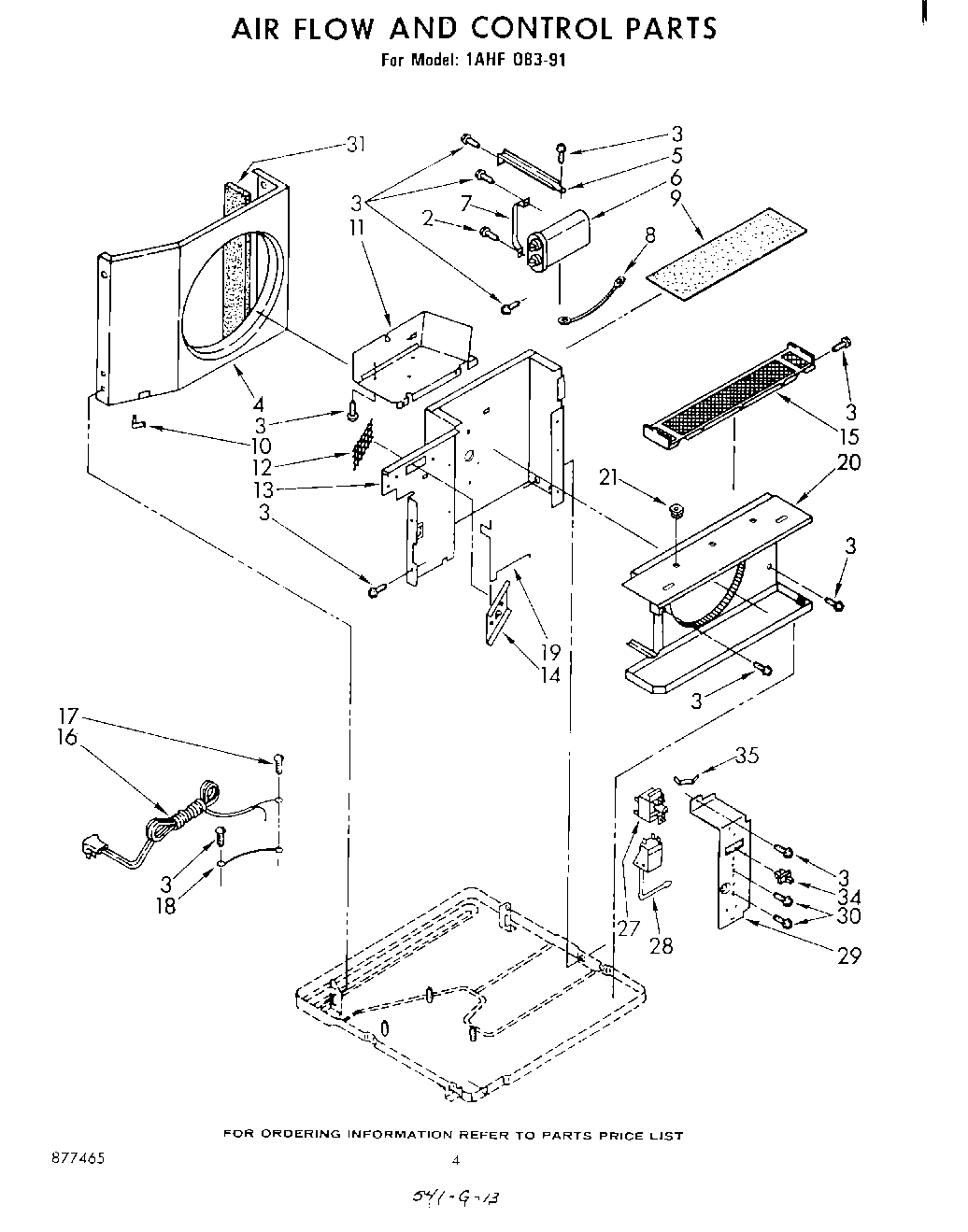

1AHF08391 03 – SECTION

Products

PositionProduct
2WP488163 Whirlpool Refrigerator Screw
3WP489069 Whirlpool Compactor Screw
3WP308685 Whirlpool Microwave Screw
4Shroud, Condenser
5support, unit (2)
6Capacitor, Running
7Bracket (Upper)
8Wire, Ground
9Insulation, Evaporator Cover
10Clip, Retainer
11Extension, Dividing Wall (Requires Insulation Part No. 469938)
12Screen, Exhaust Door
13Dividing Wall Assembly (Requires Insulation Part No. 469938)
14Door, Exhaust
15Guard, Evaporator Impeller
16Cord, Power
17WPW10141604 Whirlpool Screw
18Wire, Ground
19Arm, Door
20Shroud, Evaporator
21Fastener, snap (2)
27Switch, Rotary
28Control, Tempetature
29Panel, Control
30Screw, 6-32 x .175
31WP854334 Whirlpool Air Conditioner Sealing Strip
34Actuator, Exhaust Door
35Spring, Retainer
