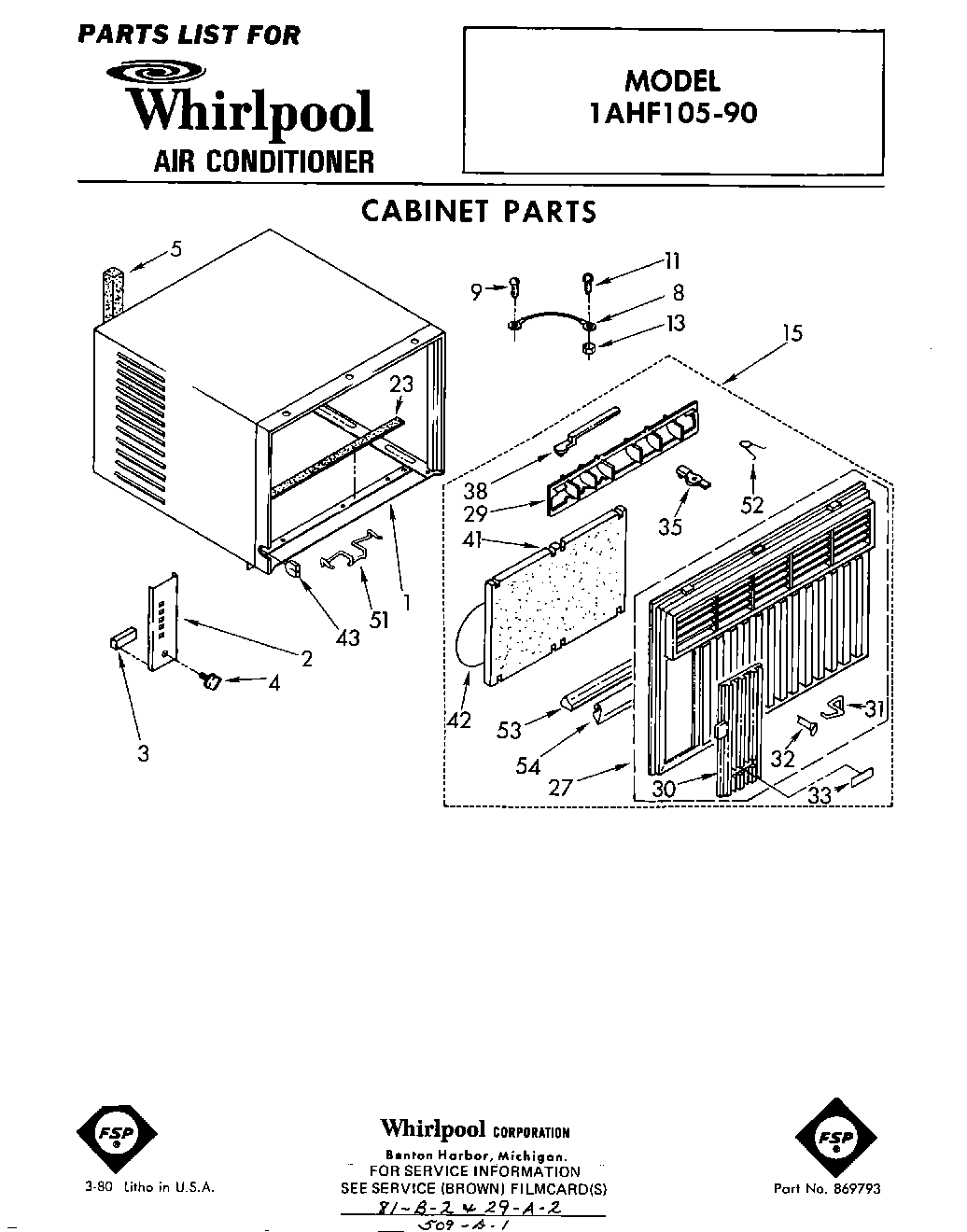

1AHF10590 01 – SECTION

Products

PositionProduct
1Cabinet
2Escutcheon
3Spacer, Escutcheon Plate (3)
4Knob, Control
8Wire, Ground
9Screw, 8 x 3/8
11Screw, 8 x 3/8
13WP486255 Whirlpool Air Conditioner Nut
15Cabinet Front (Complete)
23Seal
27Cabinet Cabinet Front (Includes Items 31, 31 & 32)
29Louver, Vertical
30Door, Control
31Pin, Hinge
32Spring, Catch
33Nameplate
35Handle, Vertical Louver (2)
38Link, Vertical Louver (2)
41Filter
42Retainer, Filter
43Grommet, Appliance Cable
51Clip (2)
52Detent Spring (2)
53WP854334 Whirlpool Air Conditioner Sealing Strip
54Seal
