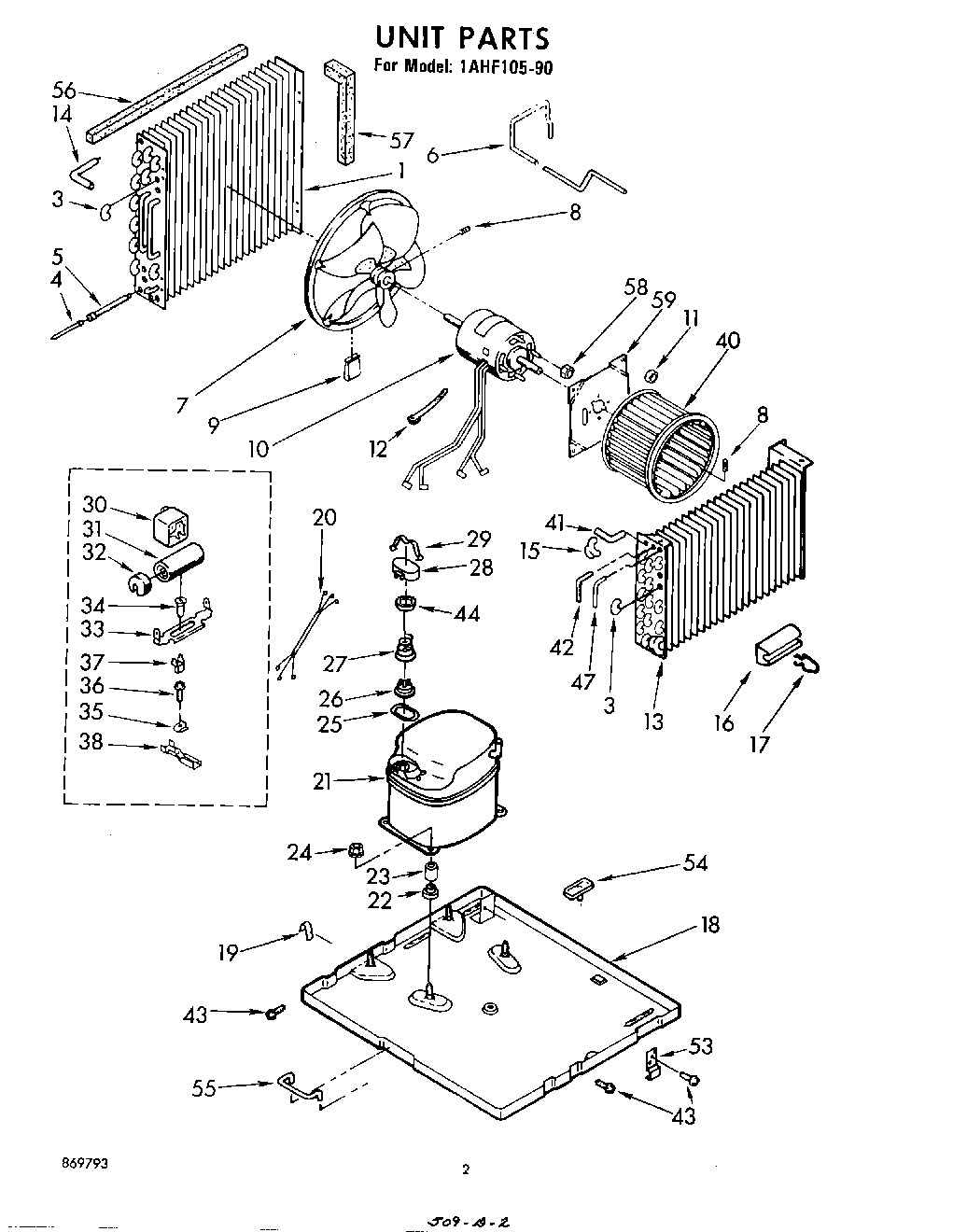

1AHF10590 02 – SECTION

Products

Position	Product
1	Condenser
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Tube, Restrictor
7	Blade, Fan
8	Setscrew, 5/16 x 1/4
9	Clip, Balancing
10	Fan Motor
11	Nut, Hex (4)
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Tube, Inlet
15	Bend, Return 3-Way
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	Clamp, Restrictor Tube
20	Harness, Wiring
21	Compressor
22	Grommet, Compressor (3)
23	Sleeve, Compressor (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	Cover, Terminal
29	Strap, Terminal Cover
30	xRelay
31	Capacitor (Component Of Start Kit)
32	Cap, Capacitor (Component Of Start Kit)
33	Bracket, Capacitor (Component Of Start Kit)
34	Screw, 10 x 5/8 (Component Of Start Kit)
35	488660 Whirlpool Refrigerator Nut
36	WP965173 Whirlpool Dishwasher Screw
37	Multiplier, Terminal (Component Of Start Kit)
38	Clip, Terminal (Component Of Start Kit)
40	Wheel, Blower
41	Tube, Inlet (90~ Bend)
42	Tube 90~ Bend
43	WP489069 Whirlpool Compactor Screw
43	WP308685 Whirlpool Microwave Screw
44	Adapter, Overload
47	Tube, Outlet (90~ Bend)
53	WPL 647824
54	WPL 647850
55	WPL 647971
56	WPL 649609
57	WPL 649610
58	WP488130 Whirlpool Air Conditioner Nut
59	Wire, 25“ Roll (Black 12 GA.)
59	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	978030 Whirlpool Refrigerator Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	WPL 484364
59	978026 Whirlpool Refrigerator Primary Valve
59	212643 Whirlpool Refrigerator Permagum Sealer
59	WPL 869793
59	WPL 947261
59	Wire, 25“ Roll (White 12 GA.)
59	WPL 799351
59	VALVE, ACCESS (5/8“)
59	WPL 647847
59	WPL 998024
59	WPL 649939
59	WPL 994121
59	WPL 647848
59	WPL 647846
59	WPL 484220
59	Cover, Winter (27 x 19 x 6 to 27“)
59	No Drip Tape (For Sweating Tubes)
59	Lacquer, Starlight Gray (1/2 Pt. Uncut)
59	Wire, Red, (25 Ft.)
59	Oil, Turbine 1 Fl. Oz.
59	WPL 994741
