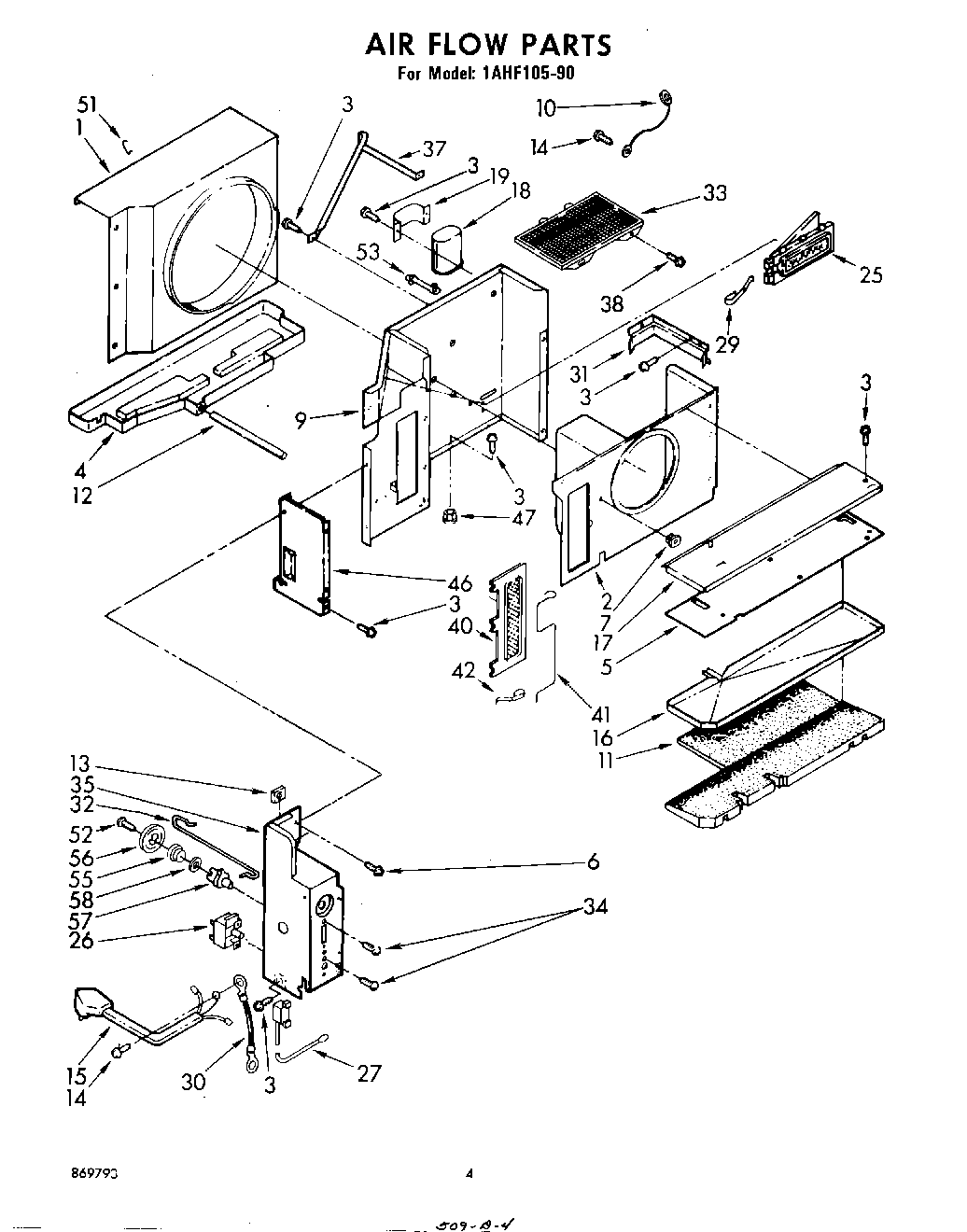

1AHF10590 03 – SECTION

Products

Position	Product
1	Shroud, Condenser
2	Housing, Blower Wheel
3	WP489069 Whirlpool Compactor Screw
3	WP308685 Whirlpool Microwave Screw
4	Pan, Condenser Condensate
5	Insulation, Evaporator Cover
6	WP965173 Whirlpool Dishwasher Screw
7	Fastener, snap (2)
9	Wall
10	Wire, Ground
11	Insulation, Condensate Pan
12	Tube, Condensate
13	Grommet
14	WPW10141604 Whirlpool Screw
15	Cable
16	Pan, Evaporator Condensate
17	Cover, Evaporator
18	Capacitor, Running
19	Bracket (Upper)
19	Bracket (Lower)
25	Door, Exhaust
26	Switch, Rotary
27	Control, Temperature
29	Spring, Door
30	Wire, Ground
31	Channel, Wiring
32	Wire, Fresh Air Control
32	Wire, C
33	Guard, Evaporator Impeller
34	Screw, 6-32 x .175
35	Box, Control
37	Support, Unit
38	WP488729 Whirlpool Refrigerator Door Screw
40	Door, Fresh Air
41	Actuator, Fresh Air Door
42	Spring, Fresh Air Door
46	Dividing Wall Assembly, L.S.
47	Clip, Speed
51	Clip, Shroud (3)
52	WP488787 Whirlpool Refrigerator Screw
53	Clamp, Cable
55	Bushing, Shaft
56	Cam, Exhaust
57	Shaft, Fresh Air & Exhaust
58	Washer
