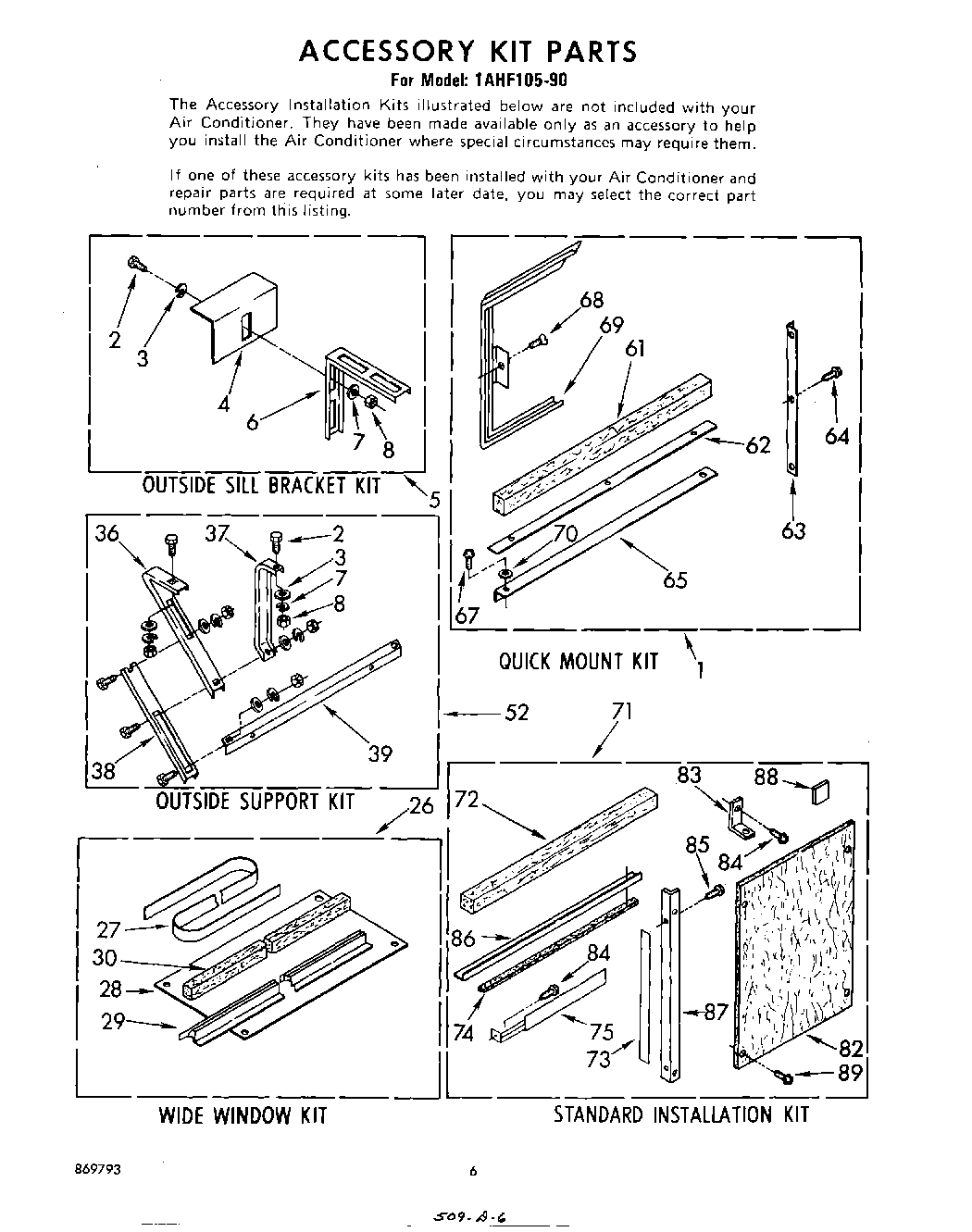

1AHF10590 04 – SECTION

Products

PositionProduct
1Kit, Quick Mount
2Bolt, 1/4 x 3/4 (6)
3WP120393 Whirlpool Washer Assembly
4Bracket, Sill Mounting (2)
5Kit, Outside Sill Bracket
6Bracket, Rail Support (2)
7Lockwasher (6)
8Nut, Hex (6)
26Kit, Wide Window
27Strip, Seal
28Board, Filler
29Bracket, Mounting (R.S.)
29Bracket, Mounting (L.S.)
30Gasket, Meeting Rail
36Support, Cabinet (2)
37Retainer, Cabinet (2)
38Extension, Support (2)
39Bracket, Support
52Kit, Outside Support
61Seal, Meeting Rail
62Strip, Seal
63Retainer, Curtain (2)
64Screw, 8 x 7/16
65Channel, Bottom
68Thumbscrew (2)
69Curtain Housing Assembly, L.S.
69Curtain Housing Assembly, R.S.
70Washer (2)
71Kit, Standard Installation
72Gasket, Meeting Rail
73Strip, Seal
74Strip, Seal
75Bracket, R.S.
75Bracket, L.S.
82Bracket, R.S.
83Bracket
84Screw, Wood 8-15 x .750
85WP308685 Whirlpool Microwave Screw
86Angle, Top
87Angle (2)
88Spacer, Block (4)
89Instructions, Installation (Kit, Quick Mount)
89Instructions, Installation (Outside Sill Kit)
89Instructions, Installation (Kit, Outside Support)
89Instructions, Installation (Kit, Standard Installa
89WP965173 Whirlpool Dishwasher Screw
89Instructions, Installation (Kit, Wide Window)
