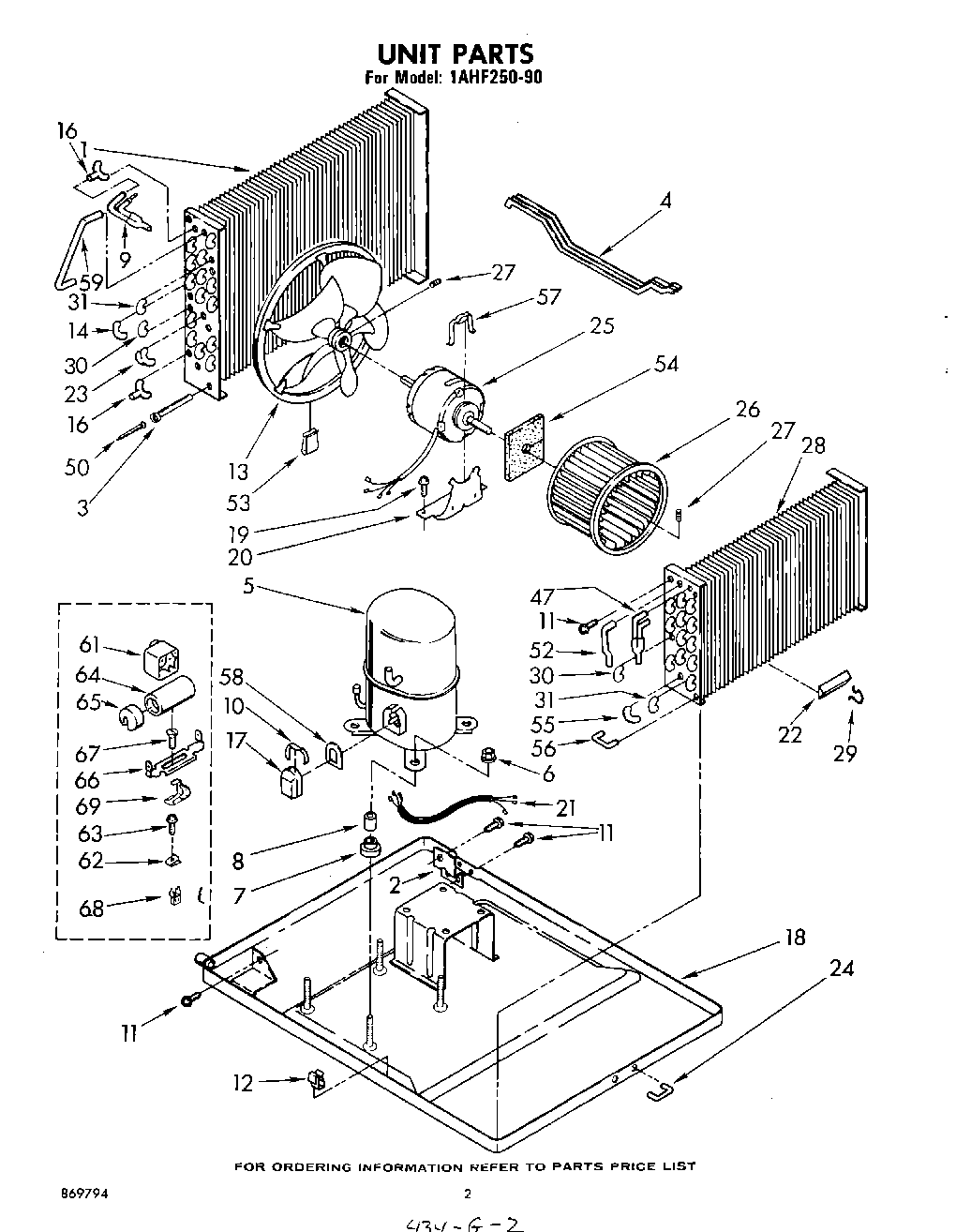

1AHF25090 02 – SECTION

1AHF25090 02 – SECTION

1AHF25090 02 – SECTION

Products

PositionProduct
1Condenser
2Support, Condenser (RS)
3Tube & Strainer (Includes Item 23)
4Tube, Restrictor (3)
5Compressor
6Locknut (3)
7Grommet (4)
8Sleeve (4)
9Tube, Inlet Assembly
10Strap, Terminal Cover
11Screw, Repair
11WP489069 Whirlpool Compactor Screw
12Clamp, Restrictor Tube
13Blade
14Bend, Return Evaporator (4)
16Bend, Return (3-Way)
17Cover, Terminal
18Base
19Screw, 1/4 x 5/8
20Cradle, Motor (2)
21Harness, Wiring
22Anticipator
23Bend, Return 3-Way
24WPL 647971
25Fan Motor
26Wheel, Blower
27Setscrew, 5/16 x 1/4
28Evaporator Assembly
29Clip (2)
30Bend, Return Evaporator (11)
31Bend, Return Evaporator (4)
47Outlet Tube Assembly
50Strainer
52Tube, Outlet (Rear)
53Clip, Balancing
54Seal, Shaft
55Bend, Return
56Bend, Return
57WPY015825 Whirlpool Motor Clip
58Gasket, Term Cover
59Tube, Crossover
61Relay (Component Of Start Kit)
62488660 Whirlpool Refrigerator Nut
63WP965173 Whirlpool Dishwasher Screw
64Capacitor (Component Of Start Kit)
65Cap, Capacitor (Component Of Start Kit)
66xMultiplier, Terminal
67Screw, 10 x 5/8 (Component Of Start Kit)
68Multiplier, Terminal (Component Of Start Kit)
69978027 Whirlpool Refrigerator Primary Valve
69Oil, Turbine 1 Fl. Oz.
69WPL 799351
69VALVE, ACCESS (1/2“)
69Wire, 25“ Roll (White 12 GA.)
69Wire, 25“ Roll (Black 12 GA.)
69WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
69212643 Whirlpool Refrigerator Permagum Sealer
69978026 Whirlpool Refrigerator Primary Valve
69WP978025 Whirlpool Refrigerator Valve
69978030 Whirlpool Refrigerator Valve
69Insulation, Fiberglass (1/4“ x 24“ x 48“)
69Wire, Red, (25 Ft.)
69Kit, Evaporator Repair (Aluminum Epoxy)
69Clip, Terminal (Component Of Start Kit)
69WPL 485883
69WPL 869794
69WPL 993377
69WPL 994202
69WPL 649939
69WPL 484220
69Cover, Winter (28 x 19 x 31“)
69WPL 994741
69No Drip Tape (For Sweating Tubes)
69Lacquer, Starlight Gray (1/2 Pt. Uncut)
69VALVE, ACCESS (5/8“)
