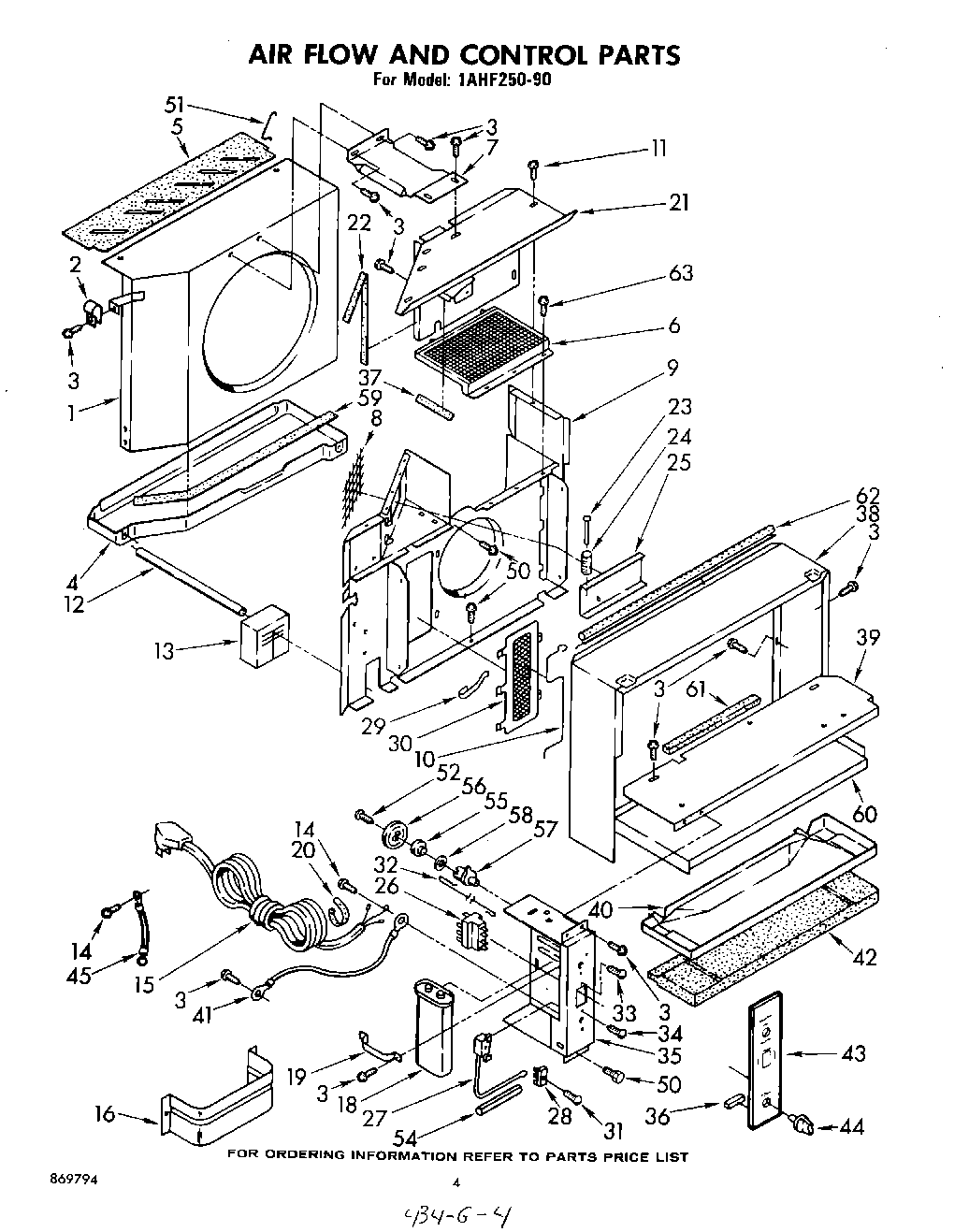

1AHF25090 03 – SECTION

Written by

Products

Position	Product
1	xShroud
2	Clamp
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Pan, Condenser (Includes Illus. 59)
5	Insulation, Condensate Shroud
6	Guard, Evaporator Impeller
7	Support, Unit
8	Screen
9	Wall, Dividing
10	Actuator, Fresh Air Door
11	Screw, 8 x 3/8
12	Tube, Right
12	Tube, Left
13	Seal, Tube Line
14	WPW10141604 Whirlpool Screw
15	Cable, Appliance
16	Bracket (Upper)
18	Capacitor, Compressor Running
19	Bracket (Lower)
20	WPW10339879 Whirlpool Wire Tie
21	Plate, Back
22	Seal, Top (L.S.)
22	Seal, Lower (R.S.)
23	Pin
24	Spring, Hinge
25	Door
26	Switch
27	Control, Temperature
28	Board, Terminal
29	Spring, Fresh Air Door
30	Fresh Air Door Assembly
31	WPL 488966
32	Wire, Exhaust Control
32	Wire, Fresh Air Control
33	Screw, 6-20 x .362
34	Screw, 6-32 x .175
35	Box, Control
36	Spacer, Escutcheon Plate (2)
37	WP854334 Whirlpool Air Conditioner Sealing Strip
38	Cover, Air Duct
39	Cover, Evaporator
40	Pan, Evaporator
41	Wire, Ground
42	Insulation
43	Plate, Escutcheon
44	Knob, Control
45	Ground Wire
50	WP489128 Whirlpool Refrigerator Screw
51	Clip, Shroud (2)
52	WP488787 Whirlpool Refrigerator Screw
54	Insulation, Sleeve
55	Bushing, Shaft
56	Cam, Fresh Air & Exhaust
57	Shaft, Fresh Air & Exhaust
58	Washer
59	Seal (2)
60	Cover (Includes Illus. 61)
61	Seal, Strip
62	Seal, Cabinet Top
63	WP488729 Whirlpool Refrigerator Door Screw
