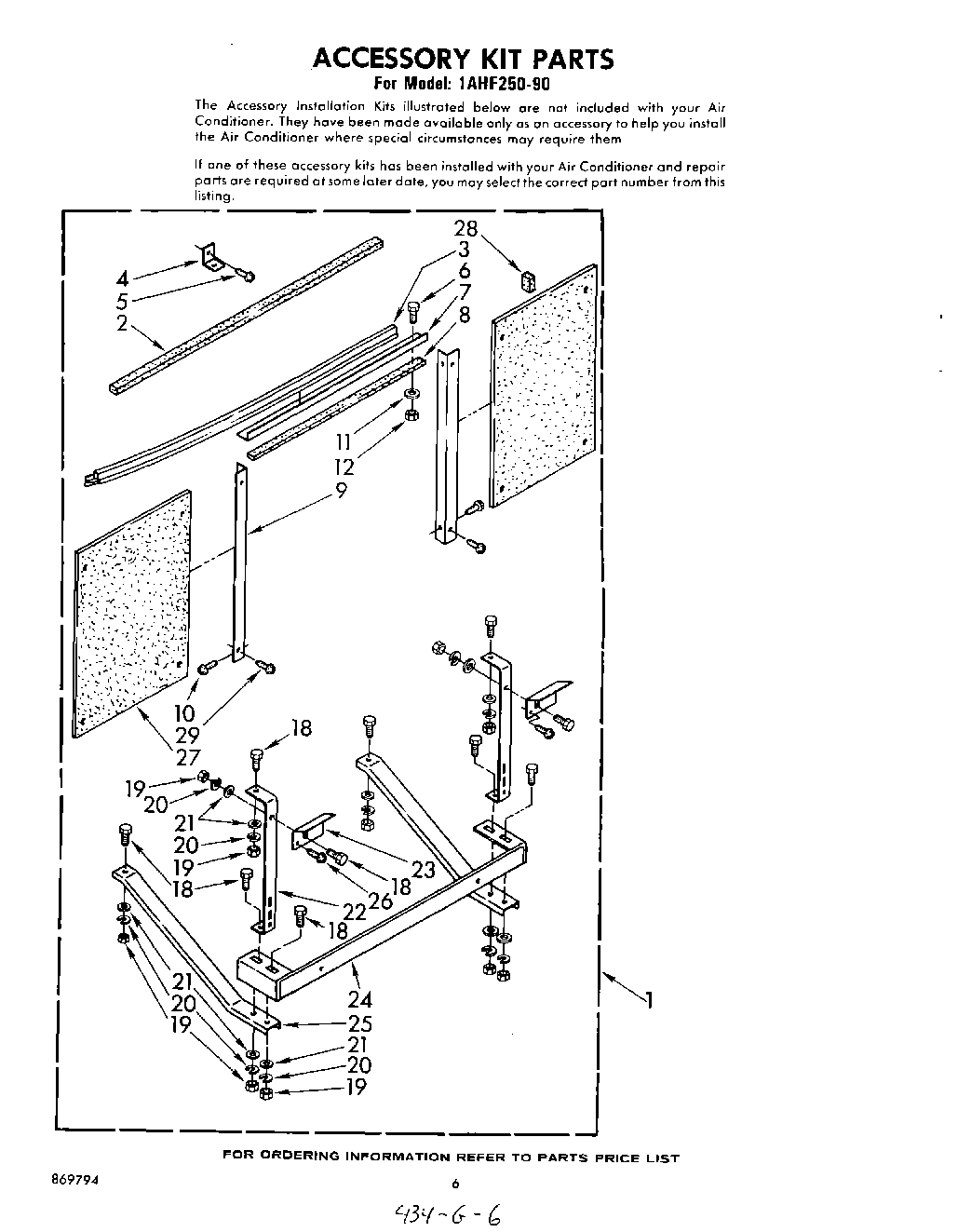

1AHF25090 04 – SECTION

Products

Position	Product
1	Standard Installation Kit
2	Gasket, Meeting Rail
3	Gasket, Sash
4	Bracket
5	Screw, Wood 8-15 x .750
6	Bolt, 10 x 3/8
7	Angle, Top
8	Strip, Seal
9	Angle (2)
10	Screw, Repair
11	Washer (3)
12	Nut, Hex
18	Bolt, 1/4 x 3/4 (6)
19	Nut, Hex (6)
20	Lockwasher (6)
21	WP120393 Whirlpool Washer Assembly
22	Support, Extension (2)
23	Bracket, Sill Mounting (2)
24	Bracket, Support
25	Support, Caninet (2)
26	Wood Screw, 10 x 1
27	Board, Filler
28	Spacer, Block (4)
29	Instructions, Installation (Standard Kit)
29	WP965173 Whirlpool Dishwasher Screw
