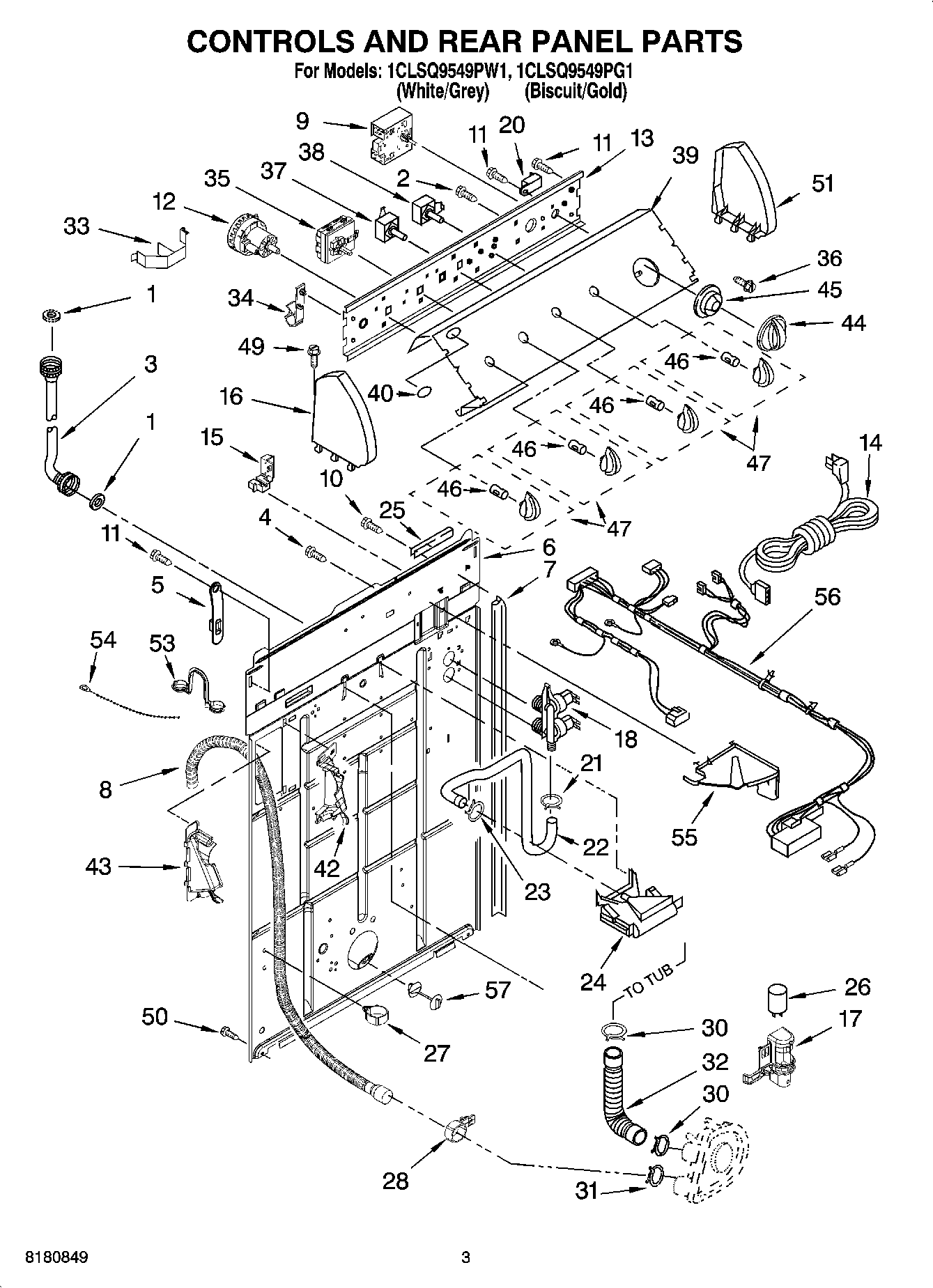

1CLSQ9549PG1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8557301 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17Clip, Capacitor
18WP3979346 Whirlpool Water Inlet Valve
20WP694419 Whirlpool Buzzer Adjuster
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26CAPACITOR
27Clamp, Hose
288541668 Whirlpool Washer Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34Retainer, Harness
35Switch, Water Temperature (ATC)
36WP3400818 Whirlpool Screw
37WPW10168257 Whirlpool Cycle Switch
38W10851055 Whirlpool Cycle Switch
39Panel, Console (Includes Illus. 40) (Gold)
39Panel, Console (Includes Illus. 40) (Silver)
40WPL 3400985
42(Left Half)
43(Right Half)
43WPW10096921 Whirlpool Hose
44WPL 8544946
44Kn
45WP8544947 Whirlpool Dial
45Dial, Timer (Biscuit)
46WP8536939 Whirlpool Spring Clip
47WPL 8544938
47WPL 8544937
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
51WPL 8271362
53WP8577378 Whirlpool Retainer
54WPW10339879 Whirlpool Wire Tie
55WPL 8539874
56WPL 3957274
57Miscellaneous Parts Bag
57WPL ARI139630A
57WP8519200 Whirlpool Support Assembly
