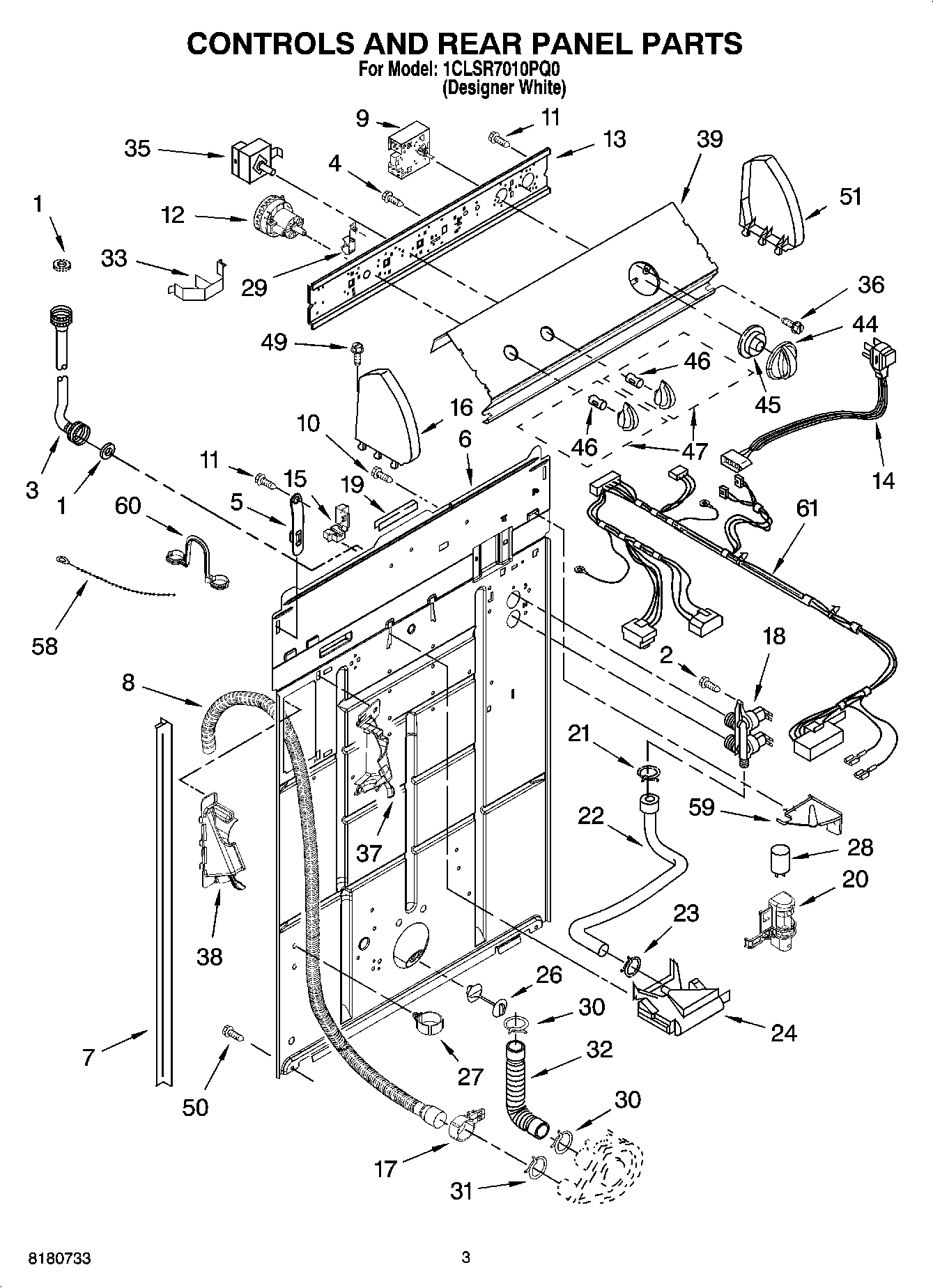

1CLSR7010PQ0 02 – CONTROLS AND REAR PANEL PARTS

1CLSR7010PQ0 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

1CLSR7010PQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
43400073 Whirlpool Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8546685 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
178541668 Whirlpool Washer Clamp
18285805 Whirlpool Washer Water Inlet Valve
19Edge Protector
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28CAPACITOR
29Retainer, Harness
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37(Left Half)
38WPW10096921 Whirlpool Hose
38(Right Half)
39Panel, Console
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
46WP8536939 Whirlpool Spring Clip
47WPL 8544935
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
58WPW10339879 Whirlpool Wire Tie
59WPL 8539874
60WP8577378 Whirlpool Retainer
61Wiring Harness (For Detail See
