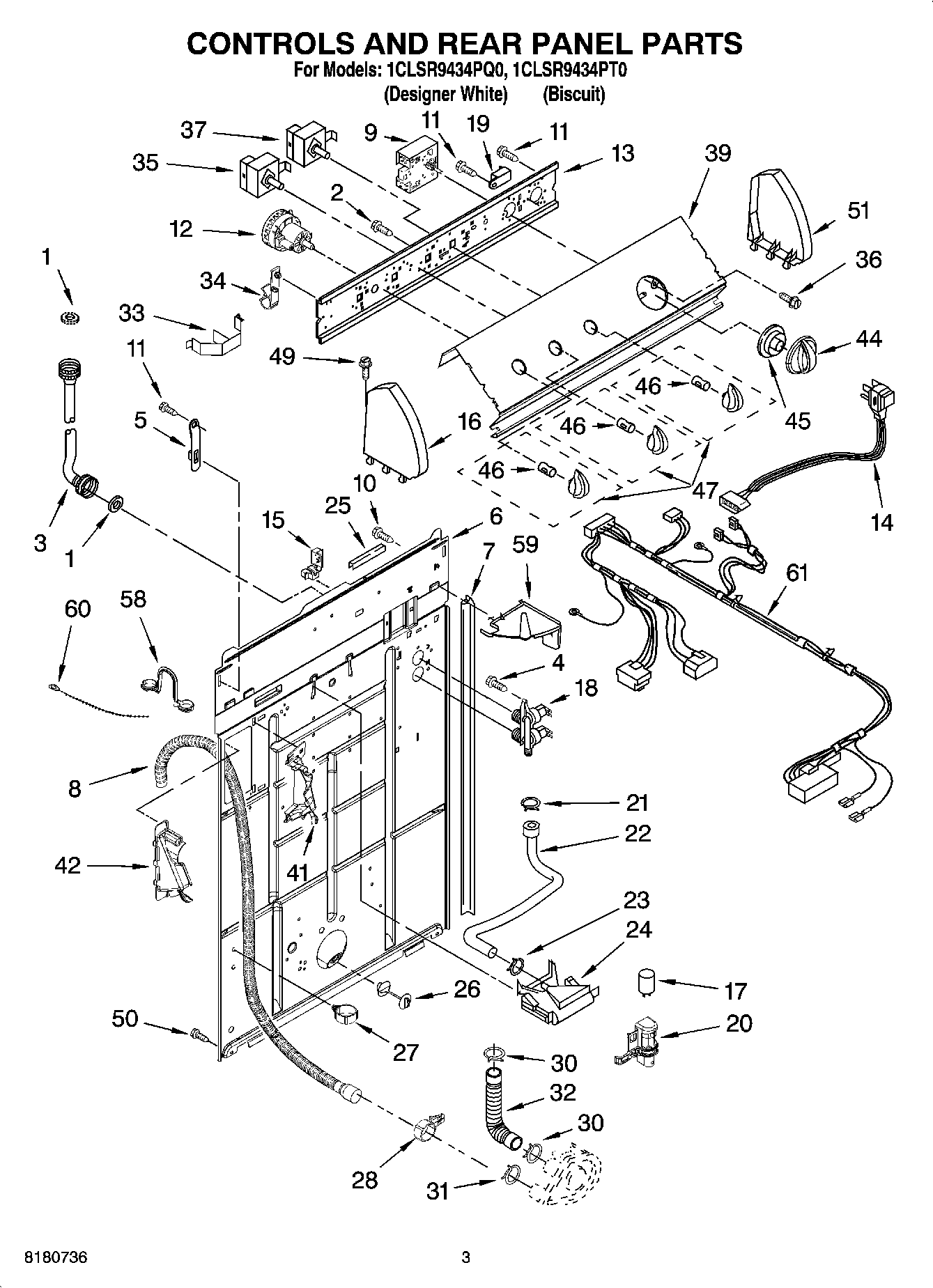

1CLSR9434PT0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP9740848 Whirlpool Dishwasher Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8541942 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	CAPACITOR
18	285805 Whirlpool Washer Water Inlet Valve
19	WP694419 Whirlpool Buzzer Adjuster
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	Retainer, Harness
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	WPW10168257 Whirlpool Cycle Switch
39	Panel, Console (White)
39	Panel, Console (Biscuit)
41	(Left Half)
42	WPW10096921 Whirlpool Hose
42	(Right Half)
44	Knob, Timer (White)
44	Knob, Timer (Biscuit)
45	Dial, Timer (Biscuit)
45	WP8544947 Whirlpool Dial
46	WP8536939 Whirlpool Spring Clip
47	WPL 8544936
47	WPL 8544935
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
58	WP8577378 Whirlpool Retainer
59	WPL 8539874
60	WPW10339879 Whirlpool Wire Tie
61	WPL 3957015
