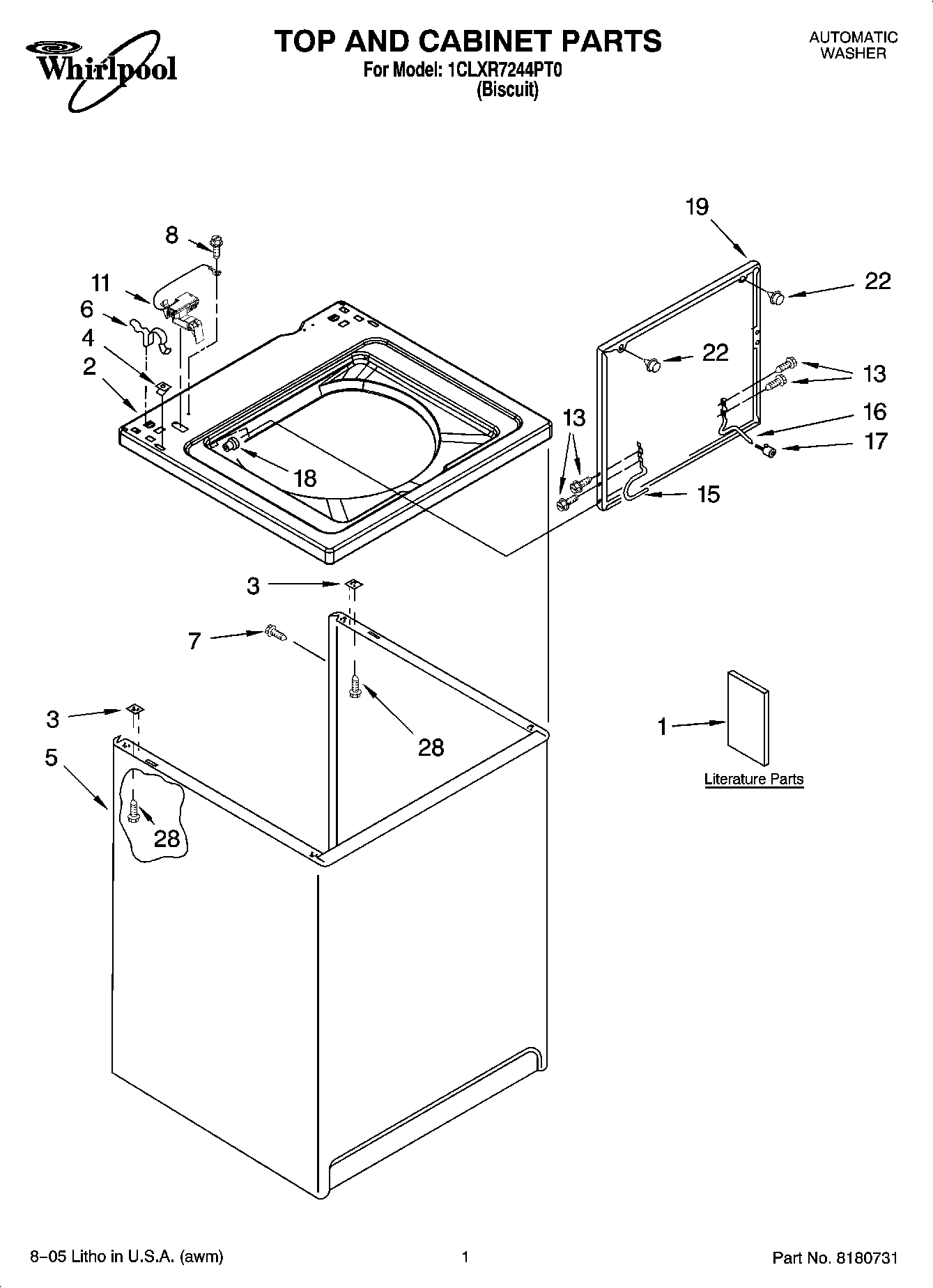

1CLXR7244PT0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Manual, Washer Do-It-Yourself
1	Installation Instructions
1	Feature Sheet
1	Energy Guide
1	Wiring Diagram
1	Following May Be Purchased
1	DO-IT-YOURSELF REPAIR MANUALS
2	Top (Biscuit)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	LID
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
