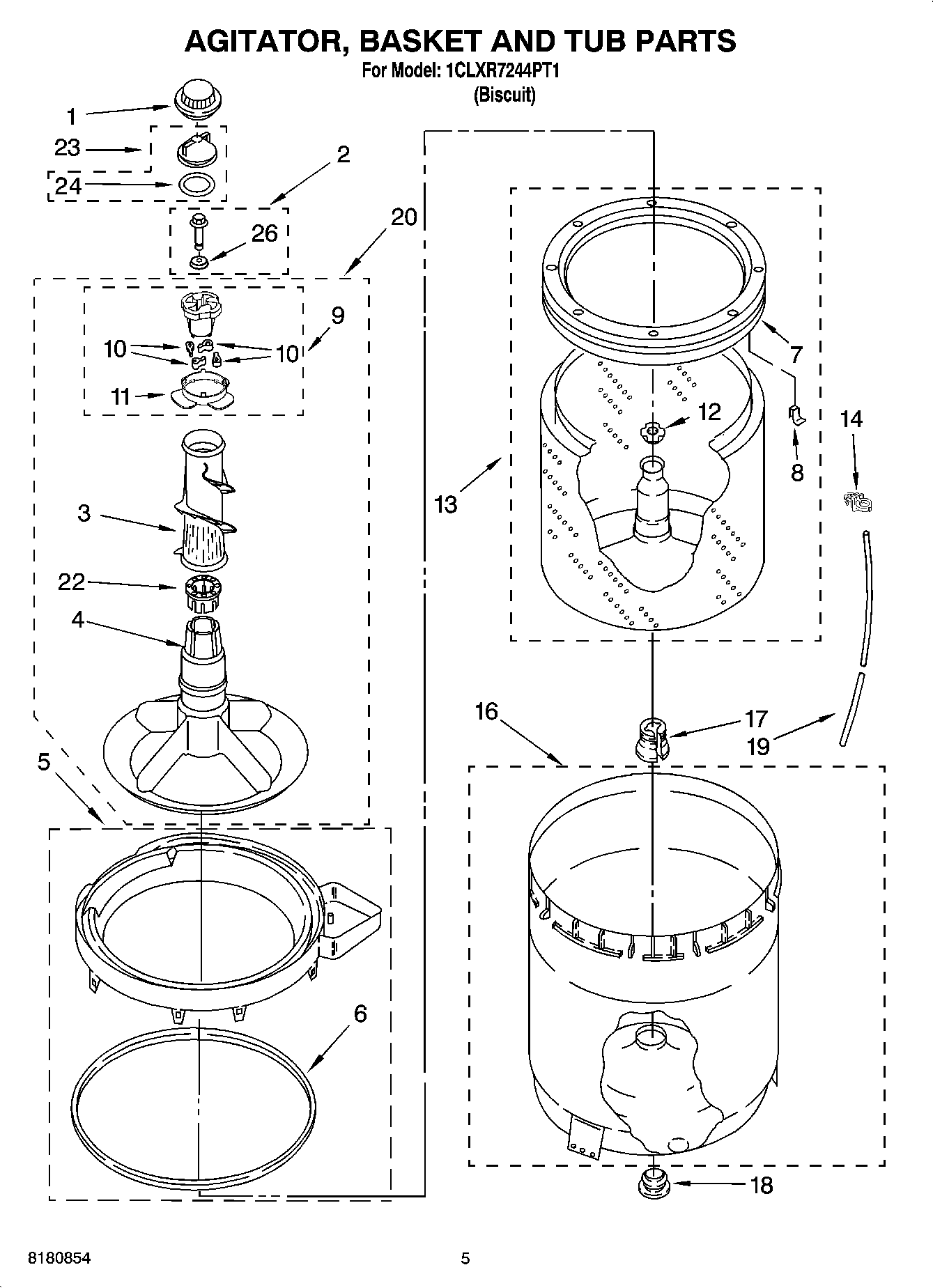

1CLXR7244PT1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP3349019 Whirlpool Upper Agitator
4	WP3350830 Whirlpool Agitator Assembly
5	Tub Ring & Gasket Assembly
6	WP3359586 Whirlpool Tub Seal
7	WP3956205 Whirlpool Balance Ring
8	WP8519815 Whirlpool Washer Balance Ring Clip
9	285811 Whirlpool Washer Agitator Repair Kit
10	80040 Whirlpool Washer Agitator Dog Kit
11	WP3363661 Whirlpool Bearing Cam
12	WP21366 Whirlpool Spanner Nut
13	Basket & Balance Ring
14	2219077 Whirlpool Refrigerator Clip
16	Tub
17	WP389140 Whirlpool Drive Block or Bell
18	W10814296 Whirlpool Washer Center Post Seal Gasket
19	WP353244 Whirlpool Hose
20	Agitator (Complete)
22	285587 Whirlpool Thrust Washer
23	WPW10074580 Whirlpool Agitator Inner Cap and Seal
24	WPW10072840 Whirlpool Seal Assembly
26	WP3949550 Whirlpool Gasket Assembly
