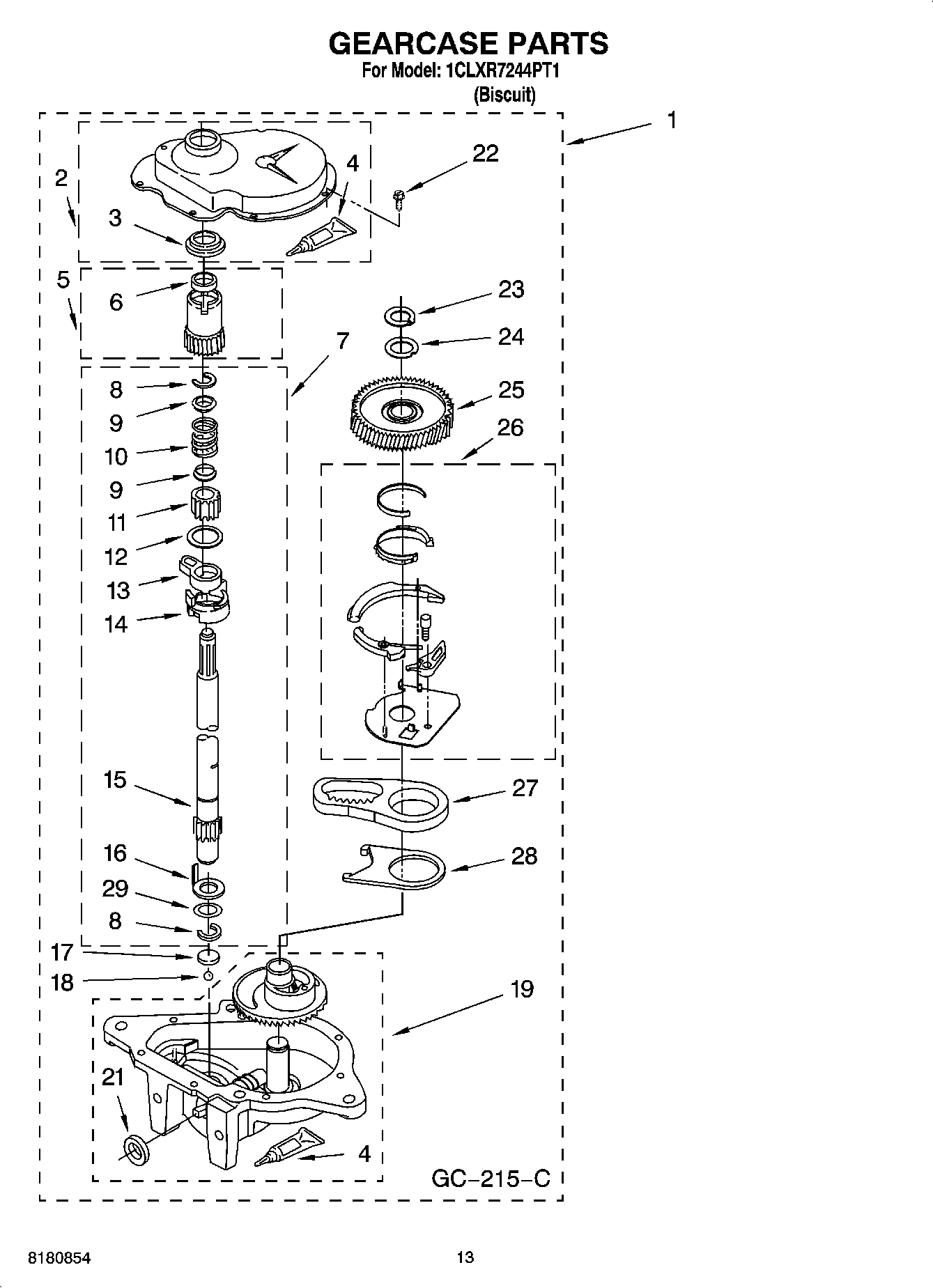

1CLXR7244PT1 09 – GEARCASE PARTS, OPTIONAL PARTS

Products

Position	Product
	350938 Whirlpool Spray Gun
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	OIL
	LUBRICANT
	SEALER
	63580 Whirlpool Washer Fabric Softener Dispenser
	350572 Whirlpool Oil Transmission 15 Oz
	ACCESSORY PARTS
	285320 Whirlpool Washer Siphon Break Kit
	Drain Protector (Not Included)
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
6	WP356427 Whirlpool Shaft Seal
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	WP389387 Whirlpool Agitator Shaft
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Bottom and Pinion, Gearcase
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	WP3351614 Whirlpool Screw
23	Ring, Retaining
24	Washer Kit, Thrust
26	NEUTRL-PAK
27	3360629 Whirlpool Washer Gearcase Transmission
29	WP388815 Whirlpool Washer
