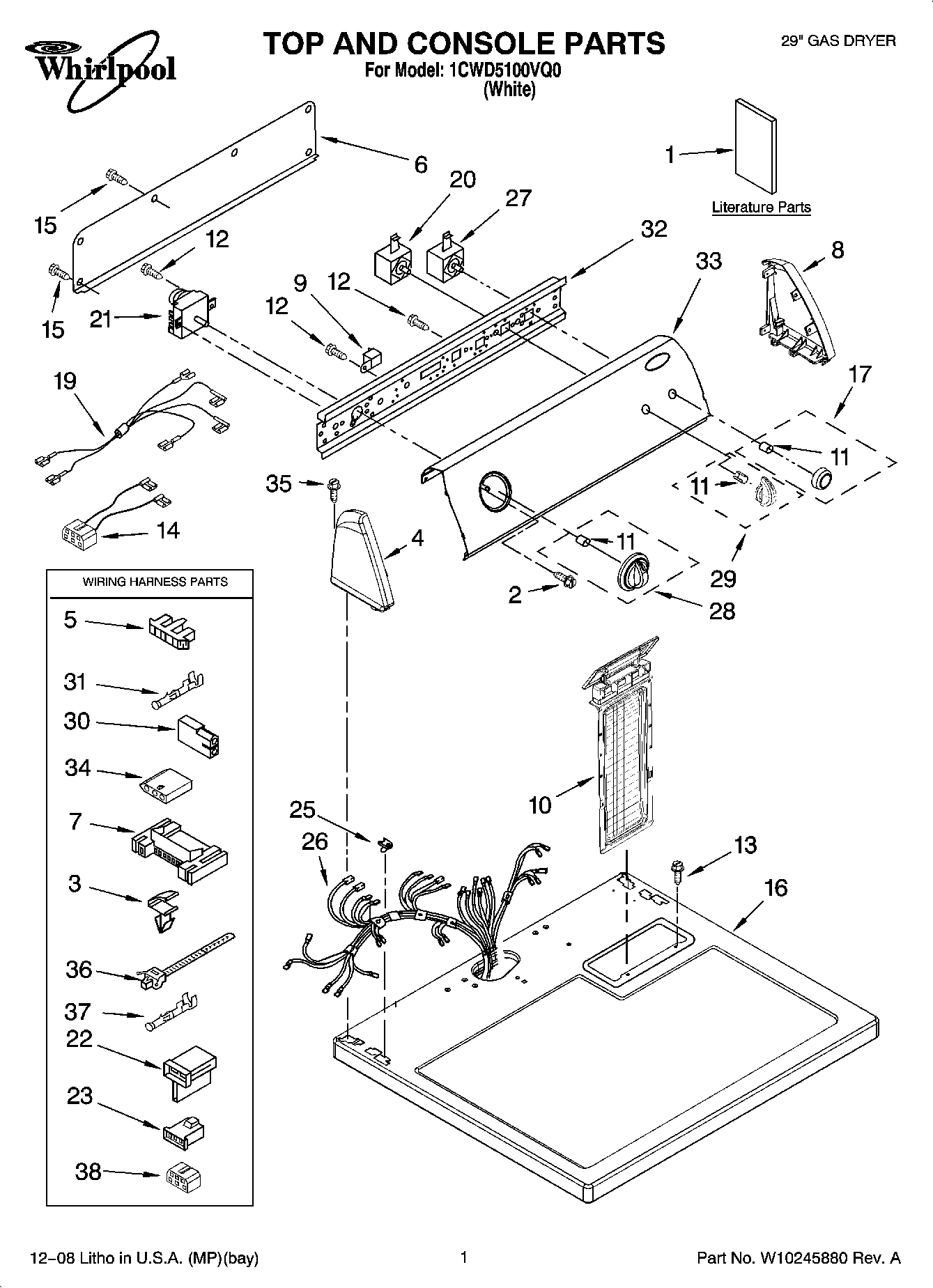

1CWD5100VQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Wiring Diagram
2	3400859 Whirlpool Screw
3	WP3394427 Whirlpool Clip
5	Connector, Timer
6	W10103406 Whirlpool Rear Panel
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
9	WP694419 Whirlpool Buzzer Adjuster
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	8539893 Whirlpool Wire Harness
15	WP693995 Whirlpool Screw
16	Top
17	WP8566073 Whirlpool Appliance Knob
19	Wire, Jumper (Black)
20	WP3399639 Whirlpool Switch
21	WP8299765 Whirlpool Timer
22	WP3403499 Whirlpool Connector
23	WP3403498 Whirlpool Connector
25	WP357213 Whirlpool Hinge Stopper
26	8299879 Whirlpool Wire Harness
27	WP3398095 Whirlpool Dryer Start Relay
28	WP8566061 Whirlpool Knob
29	Knob, Control
30	Receptacle, Latching (2-Way) (Uses Terminal 94614)
31	WP94614 Whirlpool Terminal
32	Bracket, Control
33	Panel, Control
34	3936144 Whirlpool Connector
35	WP388326 Whirlpool Screw
36	Tie, Cable
37	3401144 Whirlpool Connector
38	Block, Disconnect
