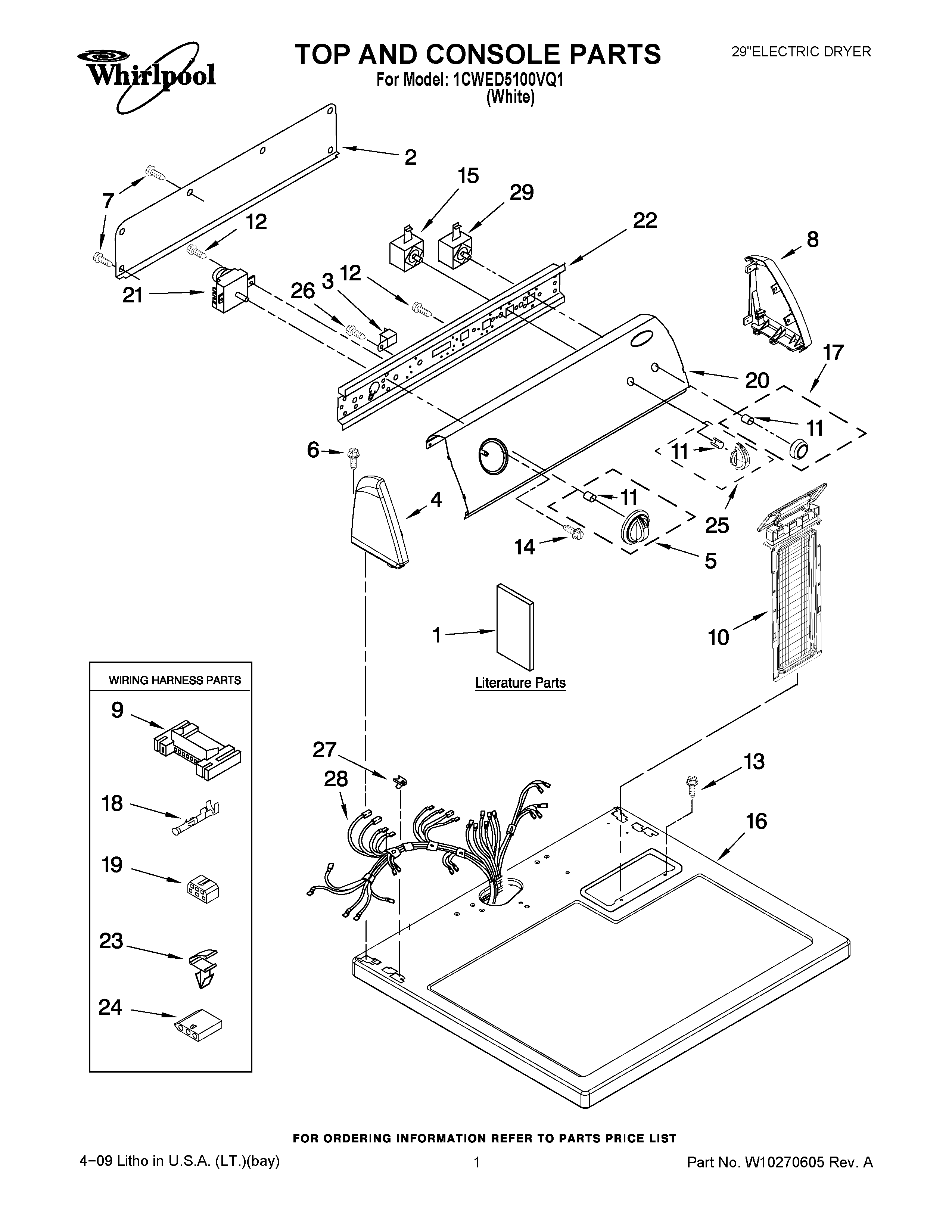

1CWED5100VQ1 01 – TOP AND CONSOLE PARTS

1CWED5100VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

1CWED5100VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1INSTALLATION, INSTRUCTION
1Sheet, Cycle Feature
2W10103406 Whirlpool Rear Panel
3WP694419 Whirlpool Buzzer Adjuster
5WP8566061 Whirlpool Knob
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3399639 Whirlpool Switch
16Top
17WP8566073 Whirlpool Appliance Knob
18WP94614 Whirlpool Terminal
19Block, Disconnect
20Panel, Control
21WPW10185982 Whirlpool Timer
22Bracket, Control
23WP3394427 Whirlpool Clip
243936144 Whirlpool Connector
25Knob, Control
26WP90767 Whirlpool Screw
27WP357213 Whirlpool Hinge Stopper
28W10740200 Whirlpool Wire Harness
29WP3398095 Whirlpool Dryer Start Relay
