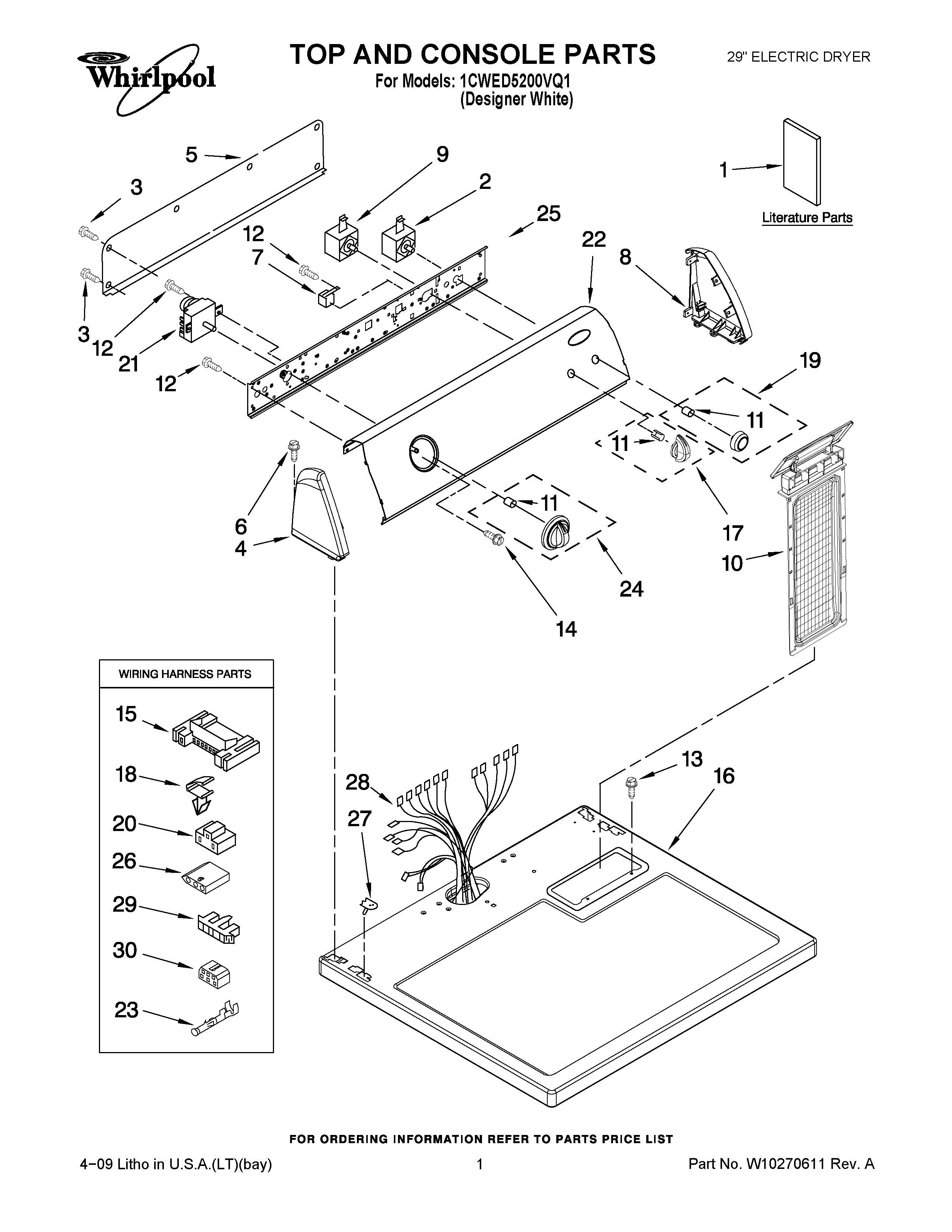

1CWED5200VQ1 01 – TOP AND CONSOLE PARTS

1CWED5200VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

1CWED5200VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Sheet, Cycle Feature
1Use & Care Guide
1INSTALLATION, INSTRUCTION
2WP3398095 Whirlpool Dryer Start Relay
3WP693995 Whirlpool Screw
5W10103406 Whirlpool Rear Panel
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
9WP3399640 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Knob, Control
18WP3394427 Whirlpool Clip
19WP8566073 Whirlpool Appliance Knob
203401144 Whirlpool Connector
21WPW10185982 Whirlpool Timer
22Panel, Control
23WP94614 Whirlpool Terminal
24WP8566061 Whirlpool Knob
25Bracket, Control
263936144 Whirlpool Connector
27WP357213 Whirlpool Hinge Stopper
28HARNESS, WIRING
29Connector, Timer
30Block, Disconnect
