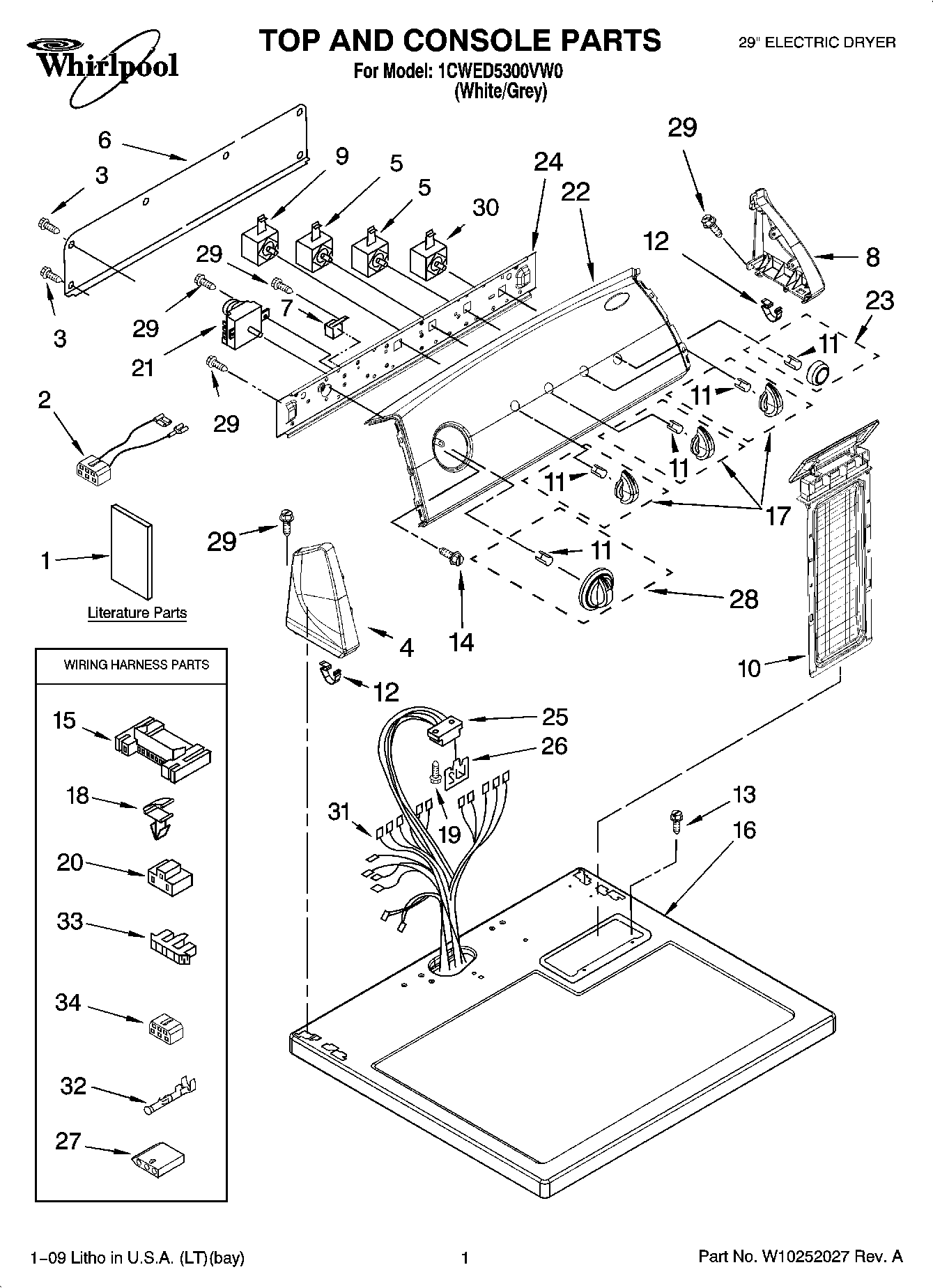

1CWED5300VW0 01 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1	Sheet, Cycle Feature
1	Use & Care Guide
1	INSTALLATION, INSTRUCTION
1	Wiring Diagram
2	W10113080 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
5	WP3405156 Whirlpool Switch
6	W10103406 Whirlpool Rear Panel
7	WP694419 Whirlpool Buzzer Adjuster
8	WP8565954 Whirlpool Endcap
9	WP8578352 Whirlpool Temperature Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	WP8563663 Whirlpool Top Assembly
17	Knob, Control (3)
18	WP3394427 Whirlpool Clip
19	SCREW
20	3401144 Whirlpool Connector
21	TIMER
22	Panel, Control
23	WPW10034790 Whirlpool Knob
24	8566052 Whirlpool Bracket
25	3391885 Whirlpool Connector
26	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
27	3936144 Whirlpool Connector
28	TIMER KNOB ASSEMBLY
29	WP90767 Whirlpool Screw
30	WP3398095 Whirlpool Dryer Start Relay
31	W10071280 Whirlpool Wiring Harness
32	WP94614 Whirlpool Terminal
33	Connector, Timer
34	Block, Disconnect
