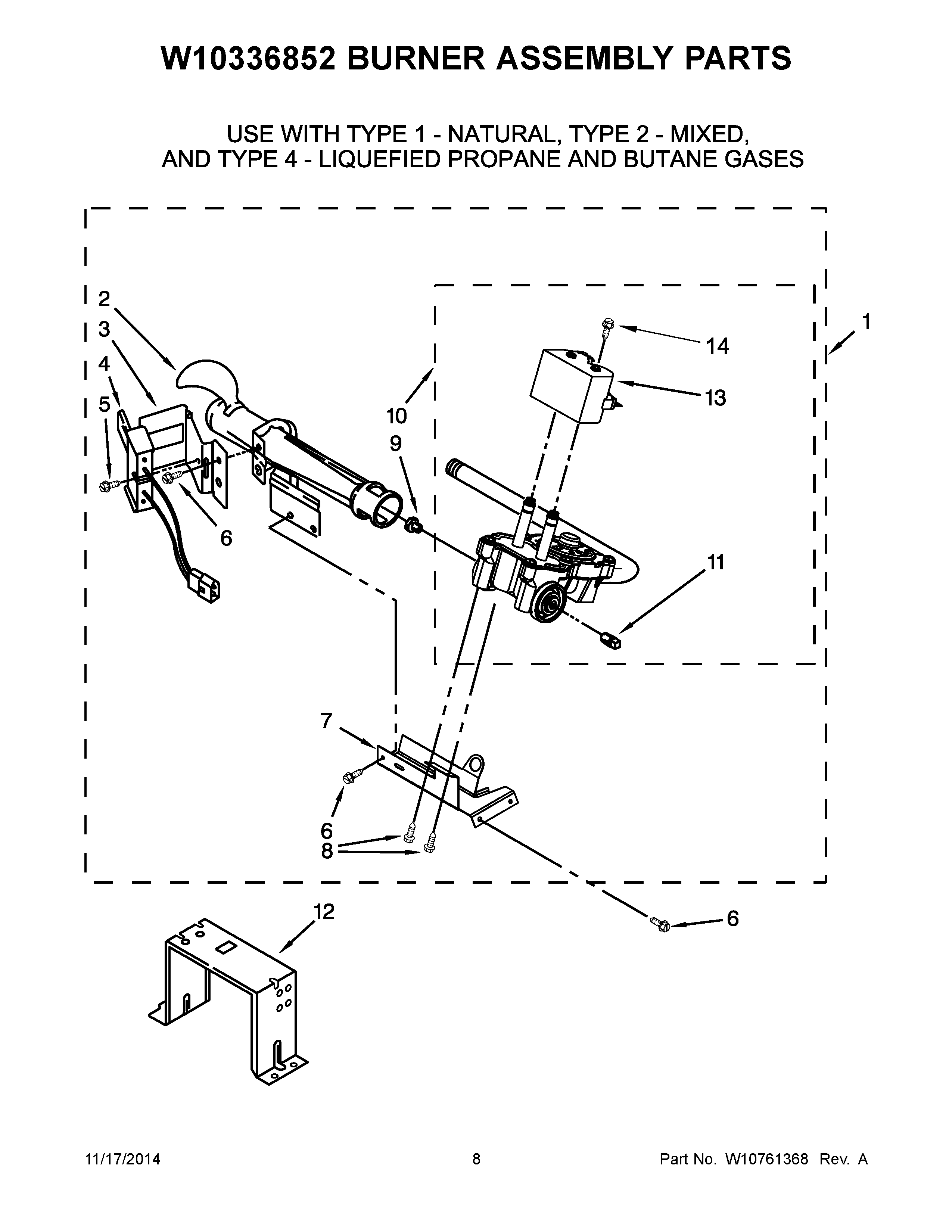

1CWGD4800DQ0 05 – W10336852 BURNER ASSEMBLY PARTS

Products

PositionProduct
NIW11581317 Whirlpool LP Gas Connector
NICABINET (NOT A SERVICEABLE PART)
1W10823508 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234826 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11W10295523 Whirlpool Plug
12Bracket, Support
13WPW10328463 Whirlpool Valve Coil
14326049536 Whirlpool Screw
