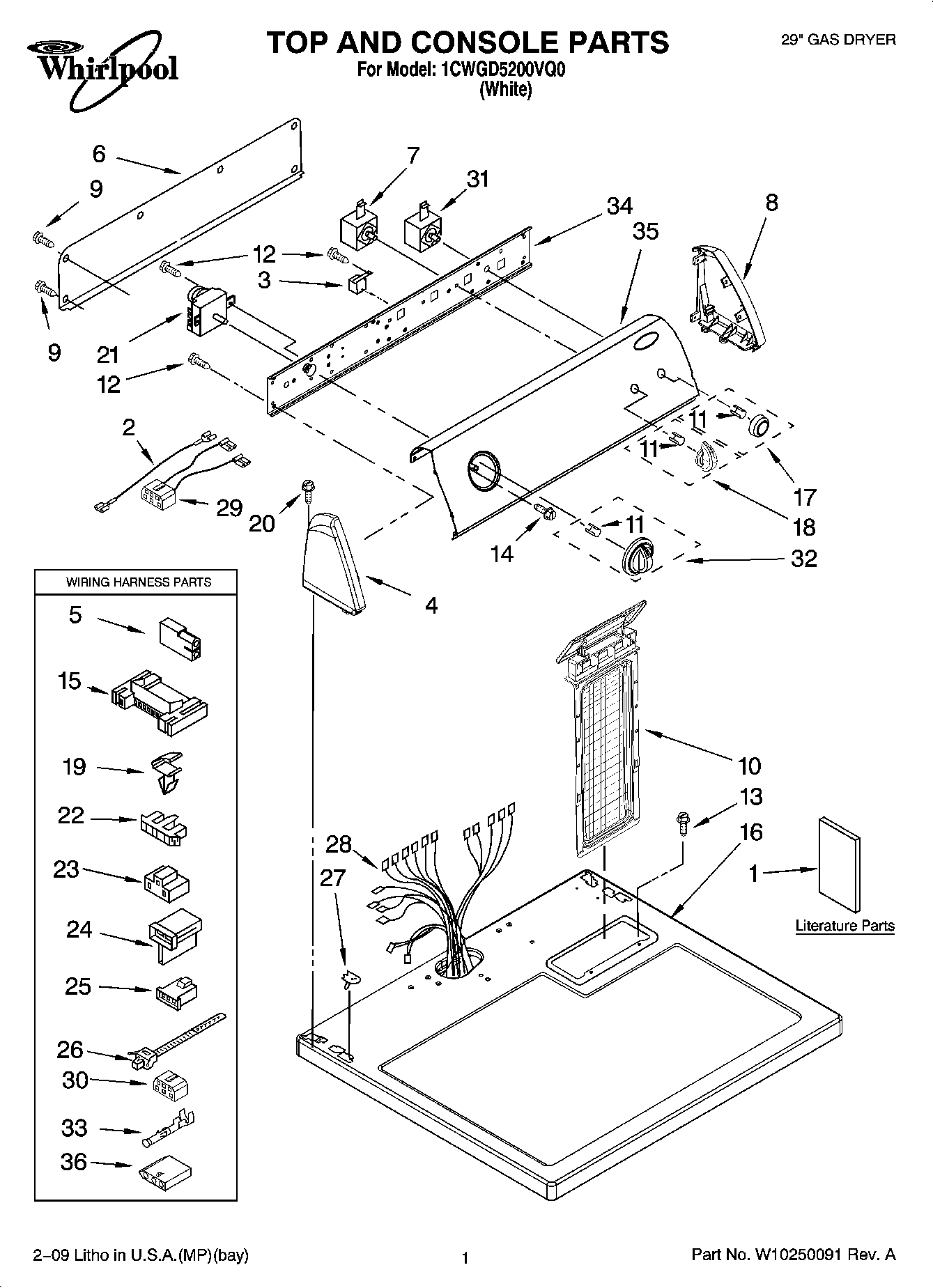

1CWGD5200VQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Instructions, Installation
1	Use & Care Guide
1	Sheet, Cycle Feature
1	Wiring Diagram
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399640 Whirlpool Switch
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP8566073 Whirlpool Appliance Knob
18	Knob, Control
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP8299765 Whirlpool Timer
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	Tie, Cable
27	WP357213 Whirlpool Hinge Stopper
28	8299879 Whirlpool Wire Harness
29	3976562 Whirlpool Wire Harness
30	Block, Disconnect
31	WP3398095 Whirlpool Dryer Start Relay
32	WP8566061 Whirlpool Knob
33	WP94614 Whirlpool Terminal
34	Bracket, Control
35	Panel, Control
36	3936144 Whirlpool Connector
