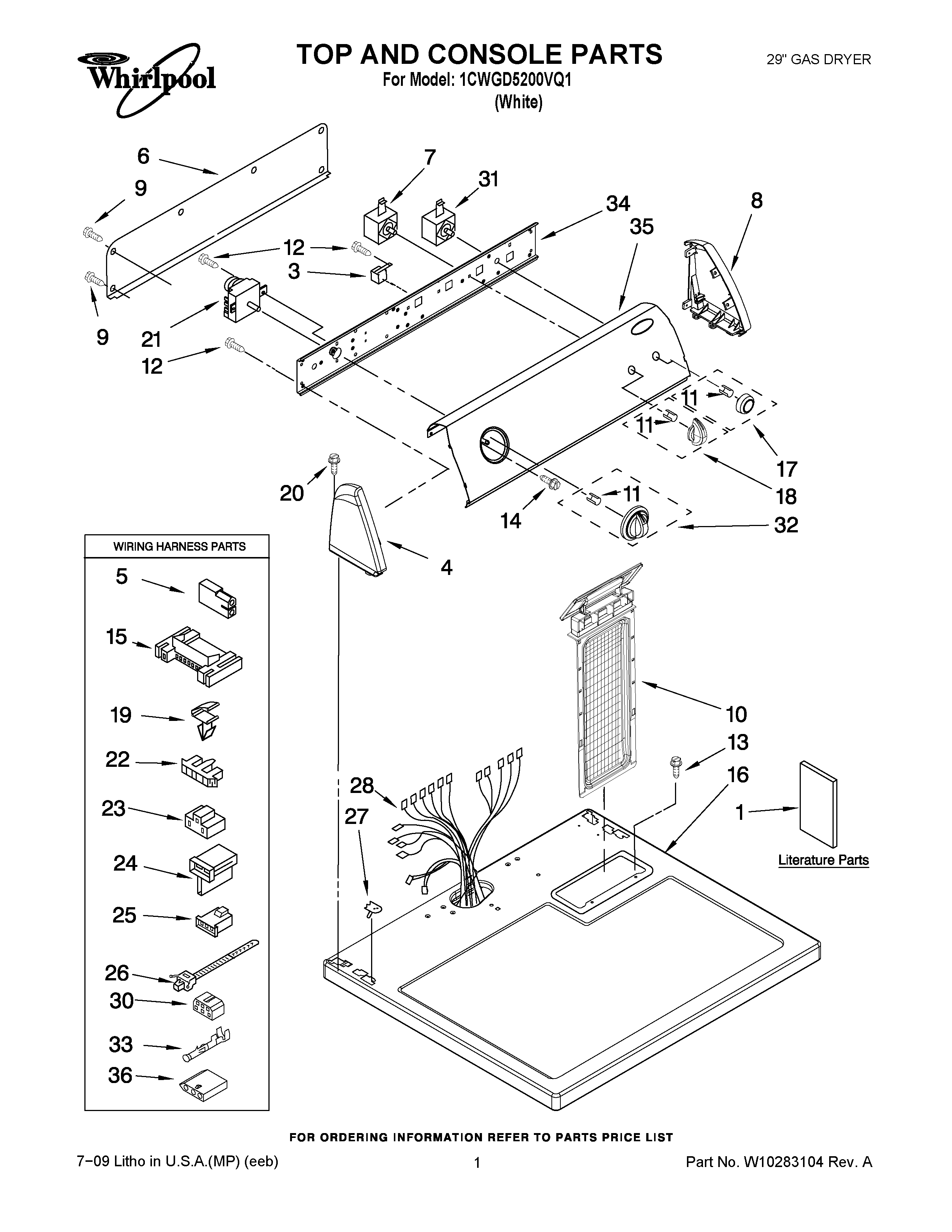

1CWGD5200VQ1 01 – TOP AND CONSOLE PARTS

1CWGD5200VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

1CWGD5200VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Wiring Diagram
1Use & Care Guide
1Instructions, Installation
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399640 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP8566073 Whirlpool Appliance Knob
18Knob, Control
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WPW10185981 Whirlpool Timer
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26Tie, Cable
27WP357213 Whirlpool Hinge Stopper
28W10186123 Whirlpool Wire Harness
30Block, Disconnect
31WP3398095 Whirlpool Dryer Start Relay
32WP8566061 Whirlpool Knob
33WP94614 Whirlpool Terminal
34Bracket, Control
35Panel, Control
363936144 Whirlpool Connector
