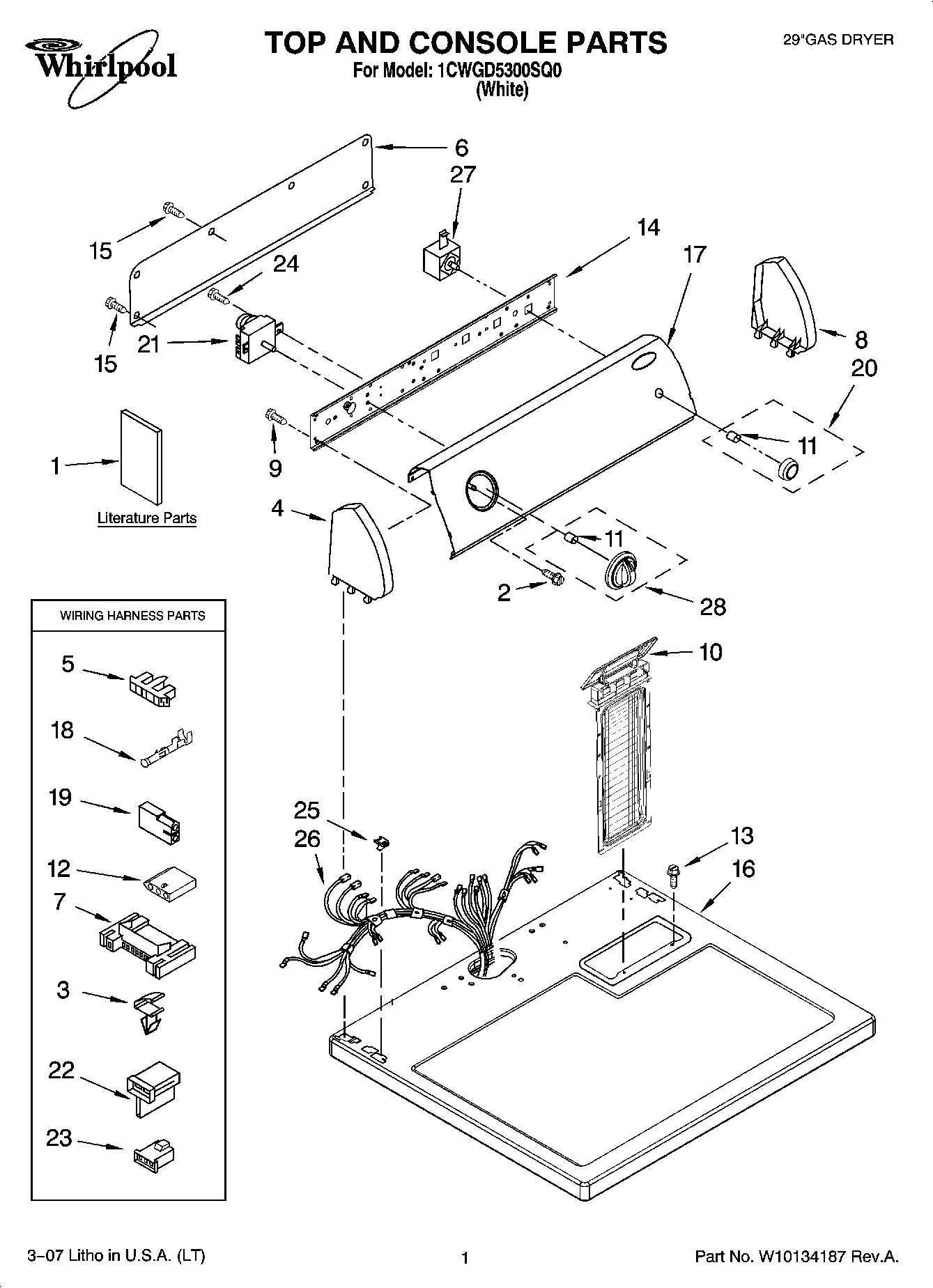

1CWGD5300SQ0 01 – TOP AND CONSOLE PARTS

1CWGD5300SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

1CWGD5300SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Use & Care Guide
1WPL 677818
1Wiring Diagram
1Instructions, Installation
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
6W10103406 Whirlpool Rear Panel
73395683 Whirlpool Connector
8W10820038 Whirlpool Endcap
9WP388326 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
123936144 Whirlpool Connector
13W11693756 Whirlpool Screw Assembly
14Bracket, Control
15WP693995 Whirlpool Screw
16Top
17Panel, Control
18WP94614 Whirlpool Terminal
19Receptacle, Latching (2-Way) (Uses Terminal 94614)
20341241 Whirlpool Dryer Drum Belt
21WP3976584 Whirlpool Timer Assembly
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
24WP90767 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26Harness, Wiring
27WP3977456 Whirlpool Start Switch
28WP8566061 Whirlpool Knob
