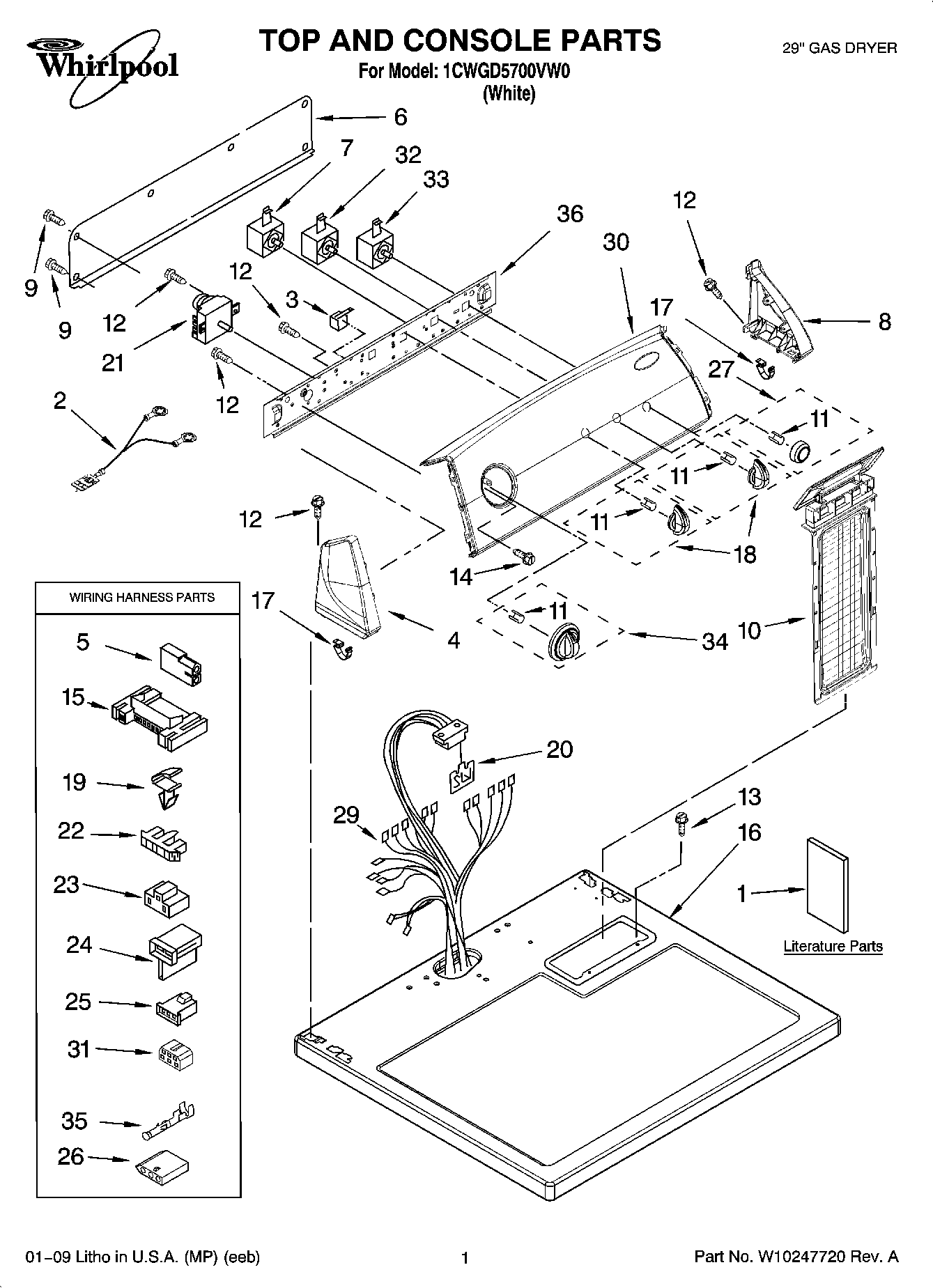

1CWGD5700VW0 01 – TOP AND CONSOLE PARTS

1CWGD5700VW0 01 – TOP AND CONSOLE PARTS

Written by

in

1CWGD5700VW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Instructions, Installation
1Wiring Diagram
1WPL 677818
1Use & Care Guide
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Tan)
3WP3398093 Whirlpool Buzzer Adjuster
4WP8565957 Whirlpool Endcap Assembly
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16WP8563663 Whirlpool Top Assembly
17WP8312709 Whirlpool Endcap Clip
18Knob, Control (3)
19WP3394427 Whirlpool Clip
20WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21WP3406725 Whirlpool Timer
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
263936144 Whirlpool Connector
27W10034770 Whirlpool Knob Assembly
29Harness, Wiring
30Panel, Control
31Block, Disconnect
323405154 Whirlpool Primary Switch
33WP3398094 Whirlpool Push To Start Switch
34TIMER KNOB ASSEMBLY
35WP94614 Whirlpool Terminal
368566052 Whirlpool Bracket
