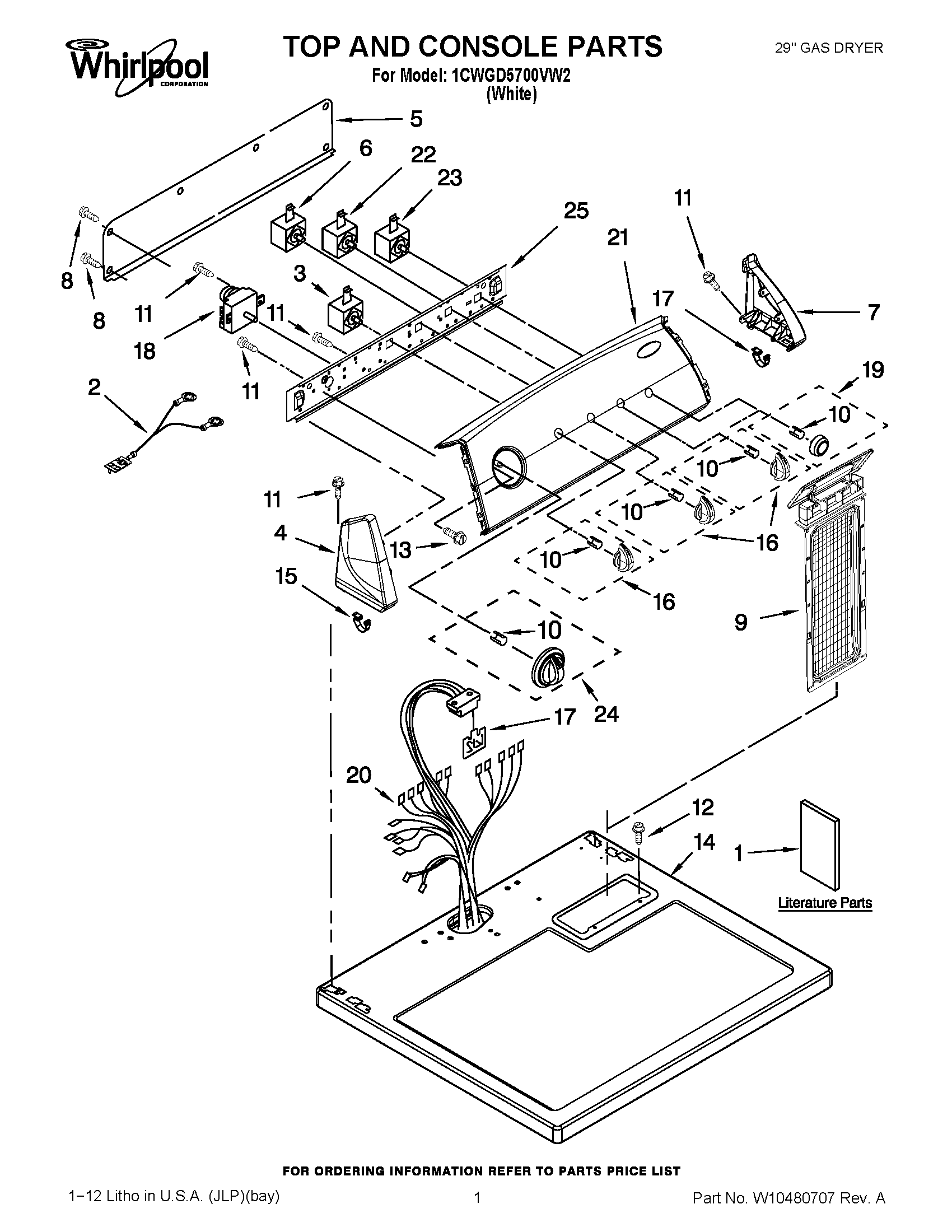

1CWGD5700VW2 01 – TOP AND CONSOLE PARTS

1CWGD5700VW2 01 – TOP AND CONSOLE PARTS

Written by

in

1CWGD5700VW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Instructions, Installation
1Use & Care Guide
1Sheet, Cycle Feature
2Wire, Jumper (Tan)
3W11106324 Whirlpool Switch
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
63405154 Whirlpool Primary Switch
7WP8565954 Whirlpool Endcap
8WP693995 Whirlpool Screw
9WPW10717210 Whirlpool Dryer Lint Screen Filter
10WP8536939 Whirlpool Spring Clip
11WP90767 Whirlpool Screw
12W11693756 Whirlpool Screw Assembly
133400859 Whirlpool Screw
14WP8563663 Whirlpool Top Assembly
15WP8312709 Whirlpool Endcap Clip
16Knob, Control (3)
17WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
18WP3406725 Whirlpool Timer
19W10034770 Whirlpool Knob Assembly
20Harness, Wiring
21PANEL, CONTROL
22WP3398093 Whirlpool Buzzer Adjuster
23WP3398094 Whirlpool Push To Start Switch
24TIMER KNOB ASSEMBLY
258566052 Whirlpool Bracket
