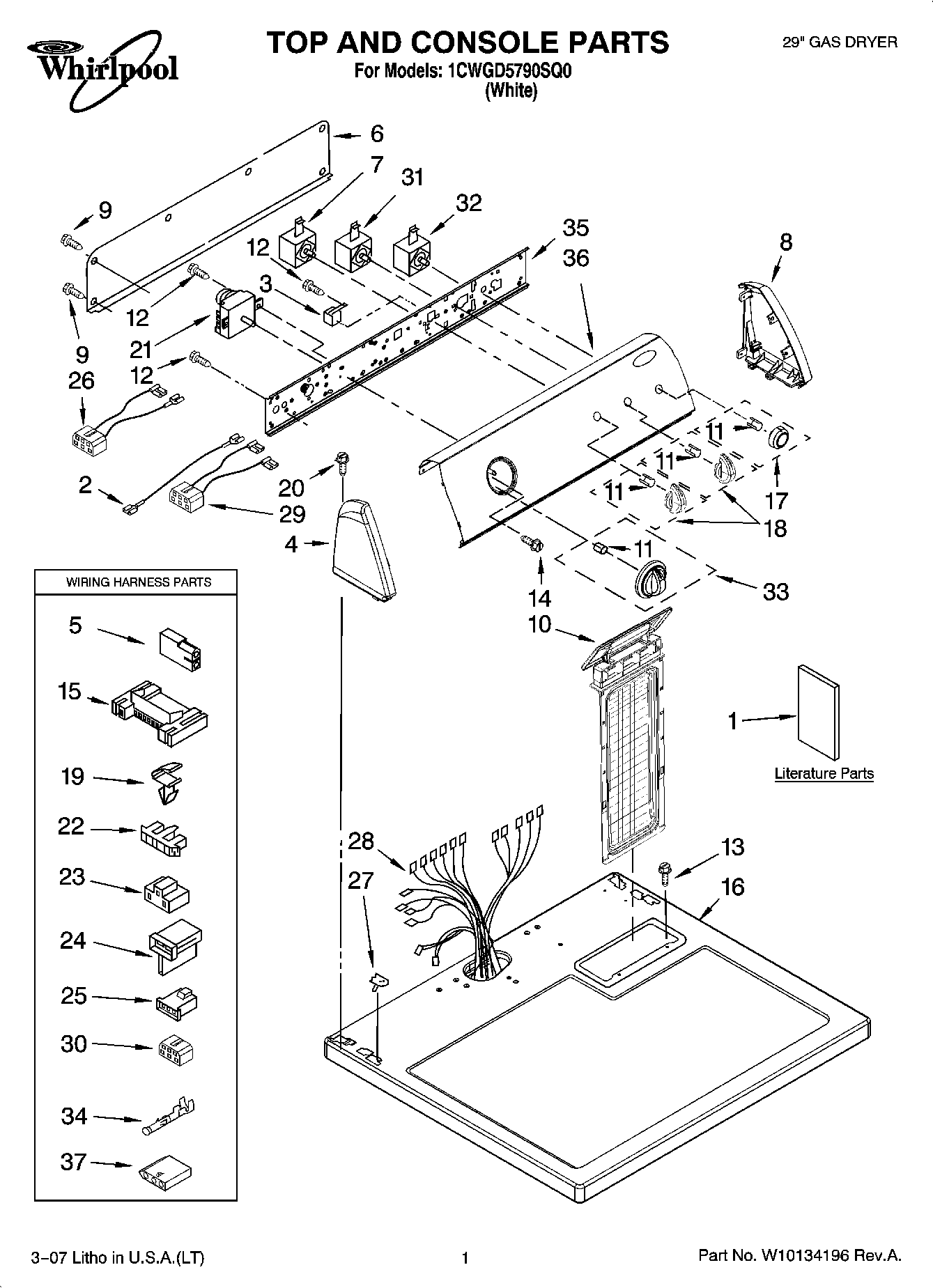

1CWGD5790SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Use & Care Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	WPL 677818
1	Instructions, Installation
1	Sheet, Cycle Feature
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP8566073 Whirlpool Appliance Knob
18	Knob, Control
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP8299766 Whirlpool Timer Assembly
22	Connector, Timer
23	3401144 Whirlpool Connector
24	WP3403499 Whirlpool Connector
25	WP3403498 Whirlpool Connector
26	3397695 Whirlpool Wire Harness
27	WP357213 Whirlpool Hinge Stopper
28	8299879 Whirlpool Wire Harness
29	8539893 Whirlpool Wire Harness
30	Block, Disconnect
31	WP3405156 Whirlpool Switch
32	WP3398095 Whirlpool Dryer Start Relay
33	WP8566061 Whirlpool Knob
34	WP94614 Whirlpool Terminal
35	Bracket, Control
36	Panel, Control (White)
36	Panel, Control (Biscuit)
37	3936144 Whirlpool Connector
