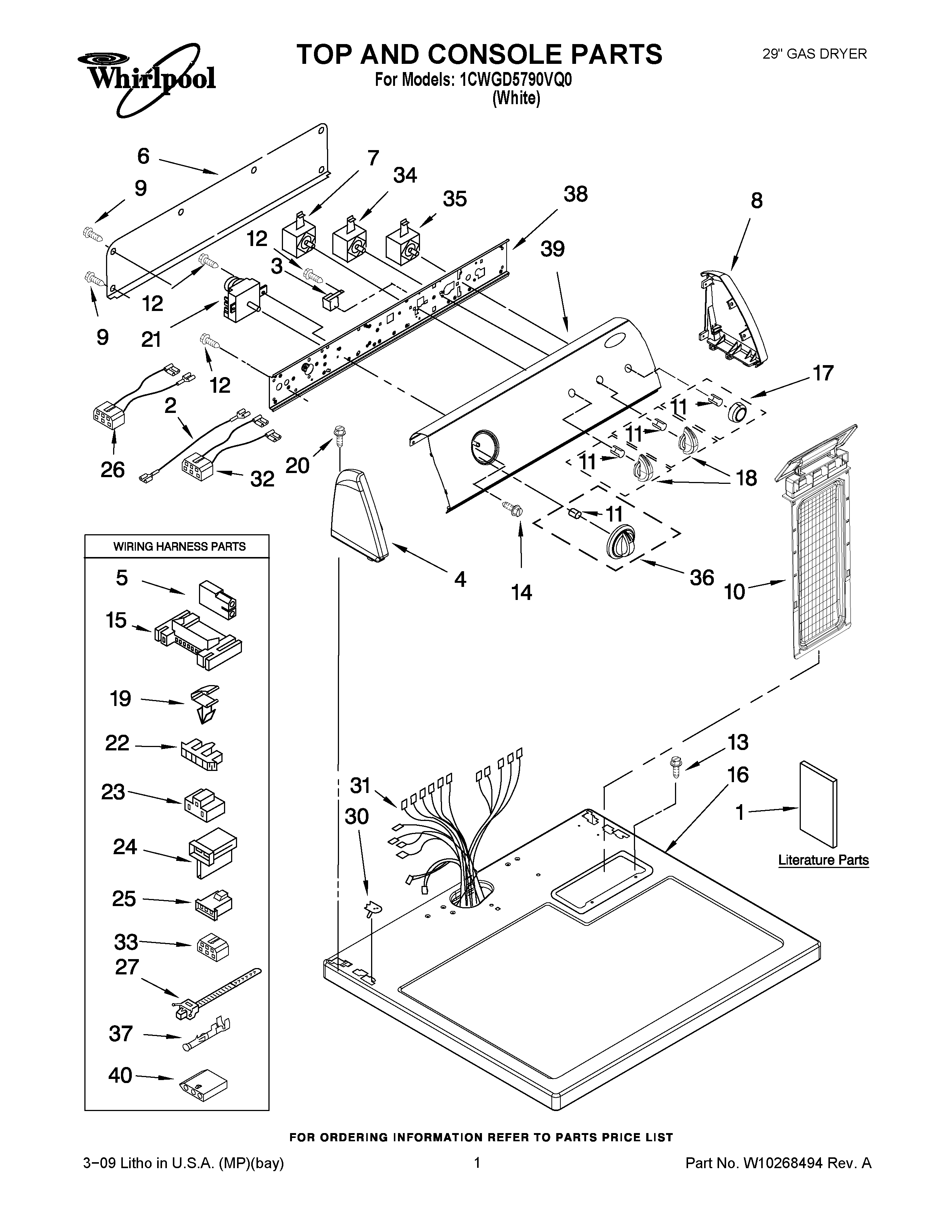

1CWGD5790VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
1Instructions, Installation
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP8566073 Whirlpool Appliance Knob
18Knob, Control
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
263397695 Whirlpool Wire Harness
27Tie, Cable
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
35WP3398095 Whirlpool Dryer Start Relay
36WP8566061 Whirlpool Knob
37WP94614 Whirlpool Terminal
38Bracket, Control
39Panel, Control
403936144 Whirlpool Connector
