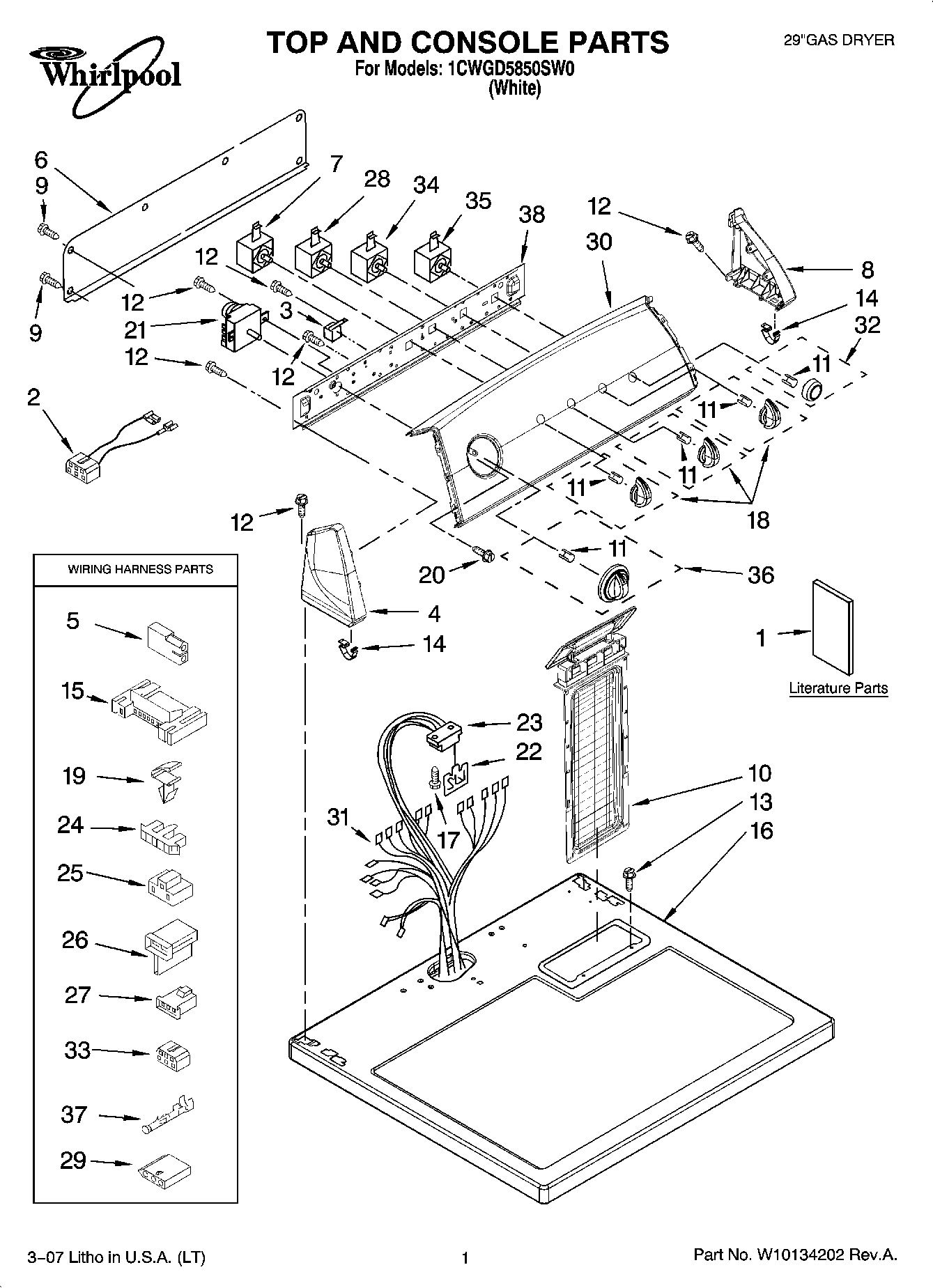

1CWGD5850SW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Sheet, Cycle Feature
1	WPL 677818
1	Use & Care Guide
1	Wiring Diagram
2	3401695 Whirlpool Wire Harness
3	WP694419 Whirlpool Buzzer Adjuster
4	WP8565957 Whirlpool Endcap Assembly
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	8530169 Whirlpool Switch
8	WP8565954 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
14	WP8312709 Whirlpool Endcap Clip
15	3395683 Whirlpool Connector
16	TOP
17	W11693756 Whirlpool Screw Assembly
18	Knob, Control (3)
19	WP3394427 Whirlpool Clip
20	3400859 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	3405152 Whirlpool Switch Assembly
29	3936144 Whirlpool Connector
30	Panel, Control
31	Harness, Wiring
32	W10034770 Whirlpool Knob Assembly
33	Block, Disconnect
34	3405154 Whirlpool Primary Switch
35	WP3398094 Whirlpool Push To Start Switch
36	TIMER KNOB ASSEMBLY
37	WP94614 Whirlpool Terminal
38	8566052 Whirlpool Bracket
