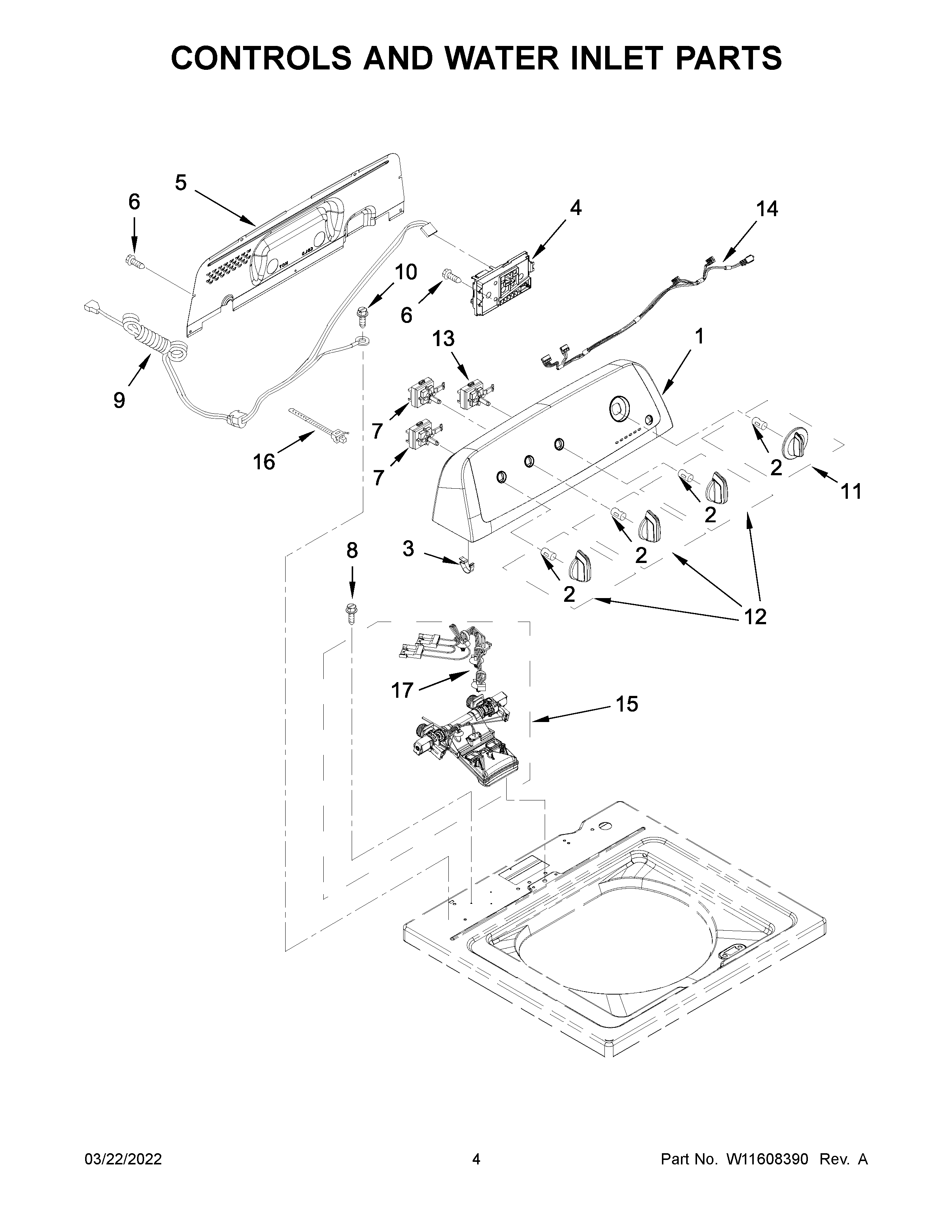

1CWTW4705GW1 03 – CONTROLS AND WATER INLET PARTS

1CWTW4705GW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

1CWTW4705GW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NIWPW10476822 Whirlpool Adapter
NIWPW10475423 Whirlpool Adapter
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11607632-includeCORE Whirlpool W11607632 Refrigerator Electronic Control Board + Core
5W10409320 Whirlpool Rear Panel
6W11685943 Whirlpool Screw
7WPW10414398 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W11168256 Whirlpool Cycle Switch
14W10694671 Whirlpool Wire Harness
15W11614511 Whirlpool Valve
16WPW10339879 Whirlpool Wire Tie
17W10701401 Whirlpool Wire Harness
