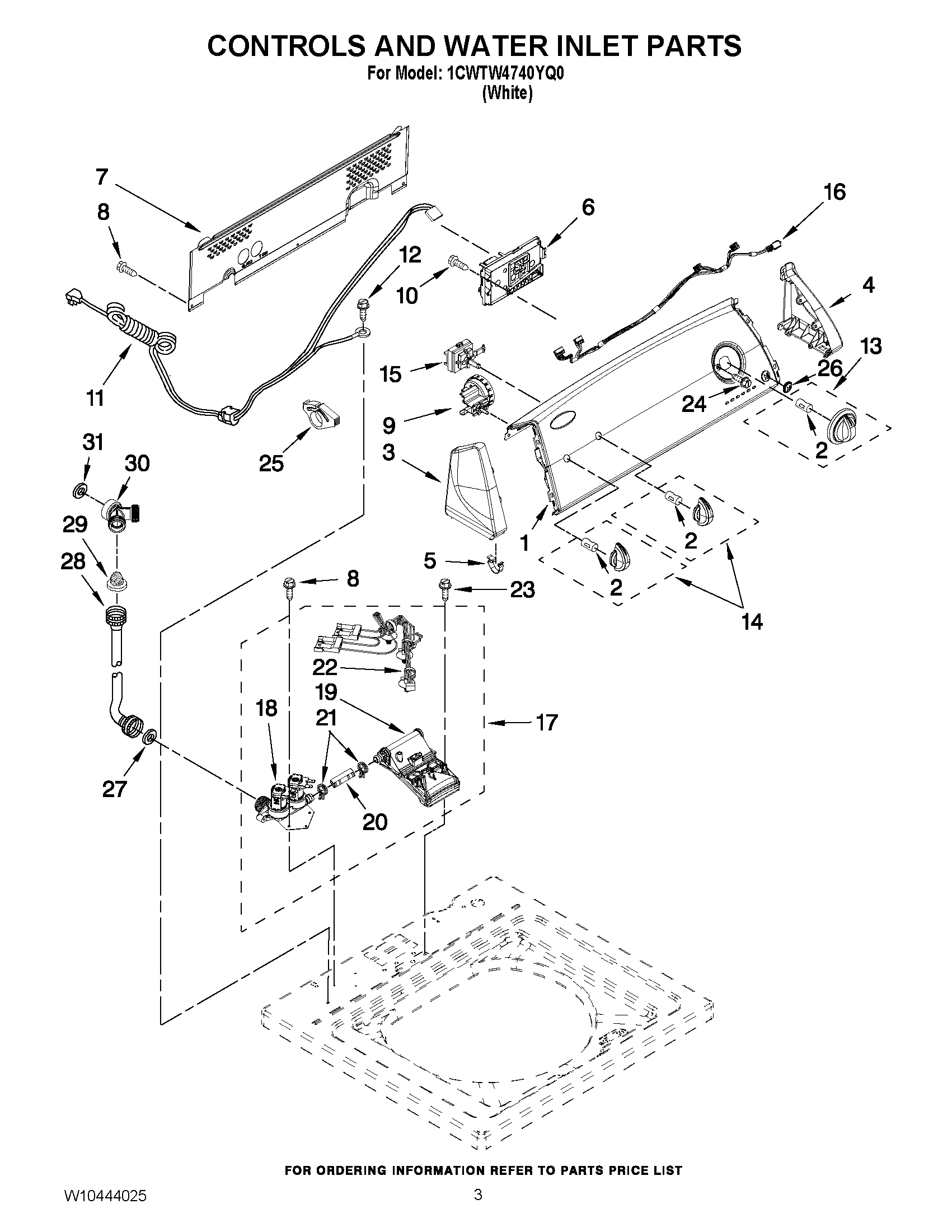

1CWTW4740YQ0 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10480614-includeCORE Whirlpool W10480614 Washer Electronic Control Board + Core
7	WPW10420985 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10268910 Whirlpool Washer Water Level Switch
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
15	WPW10285511 Whirlpool Cycle Switch
16	W10291178 Whirlpool Wire Harness
17	WPW10432360 Whirlpool Valve
18	WPW10352256 Whirlpool Valve
19	WPW10441423 Whirlpool Vacuum Breaker
20	W10238347 Whirlpool Hose Assembly
21	WP596669 Whirlpool Hose Clamp
22	WPW10344775 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	WP3400818 Whirlpool Screw
25	WPW10663966 Whirlpool Washer Water Level Switch
26	WPW10251309 Whirlpool Push Button
27	WP16123 Whirlpool Washer
28	WP89503 Whirlpool Washer Fill Hose
29	285452A Whirlpool Hose Seal and Screen
30	WPW10269488 Whirlpool Connector
31	WP3357450 Whirlpool Washer Assembly
