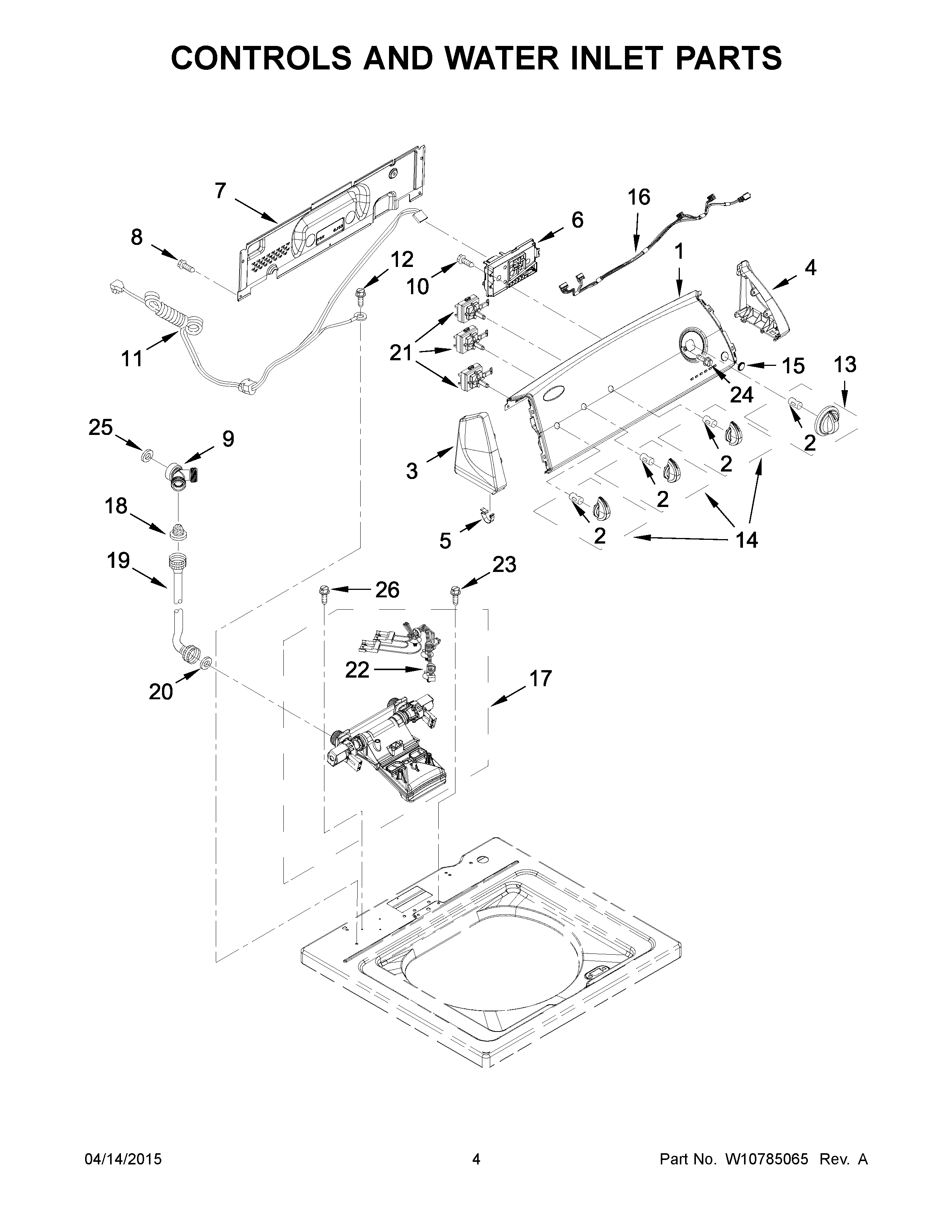

1CWTW4800YQ2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6WPW10754624-includeCORE Whirlpool WPW10754624 Washer Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10269488 Whirlpool Connector
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10251309 Whirlpool Push Button
16W10291183 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
18285452A Whirlpool Hose Seal and Screen
19WP89503 Whirlpool Washer Fill Hose
20WP16123 Whirlpool Washer
21WPW10285512 Whirlpool Cycle Switch
22W10876654 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WP3357450 Whirlpool Washer Assembly
26WPW10213953 Whirlpool Screw
