1CWTW4815EW1 04 – BASKET AND TUB PARTS

1CWTW4815EW1 04 – BASKET AND TUB PARTS

Written by

in

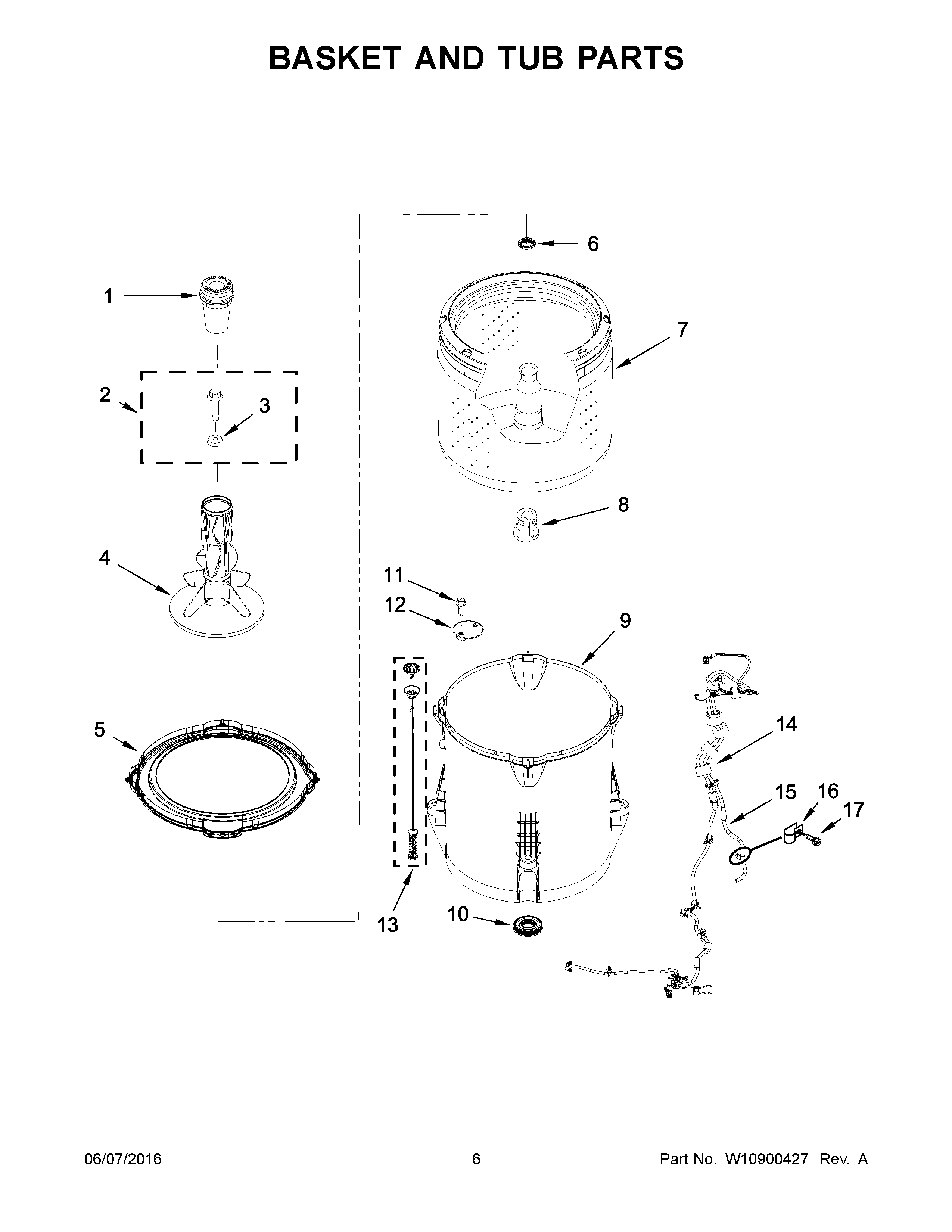

1CWTW4815EW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2W10772621 Whirlpool Washplate Screw
3WP3949550 Whirlpool Gasket Assembly
4WP63235 Whirlpool Agitator Assembly
5WPW10531289 Whirlpool Tub Ring
6WP21366 Whirlpool Spanner Nut
7W10554251 Whirlpool Basket
8WP389140 Whirlpool Drive Block or Bell
9W10371566 Whirlpool Outer Tub
10W10324647 Whirlpool Seal Tub
11WP8533928 Whirlpool Refrigerator Screw
12WPW10215093 Whirlpool Filter
13W10780045 Whirlpool Suspension Rod
14W10678684 Whirlpool Wire Harness
15WP353244 Whirlpool Hose
16W10005430 Whirlpool Clamp
17WPW10109200 Whirlpool Screw
