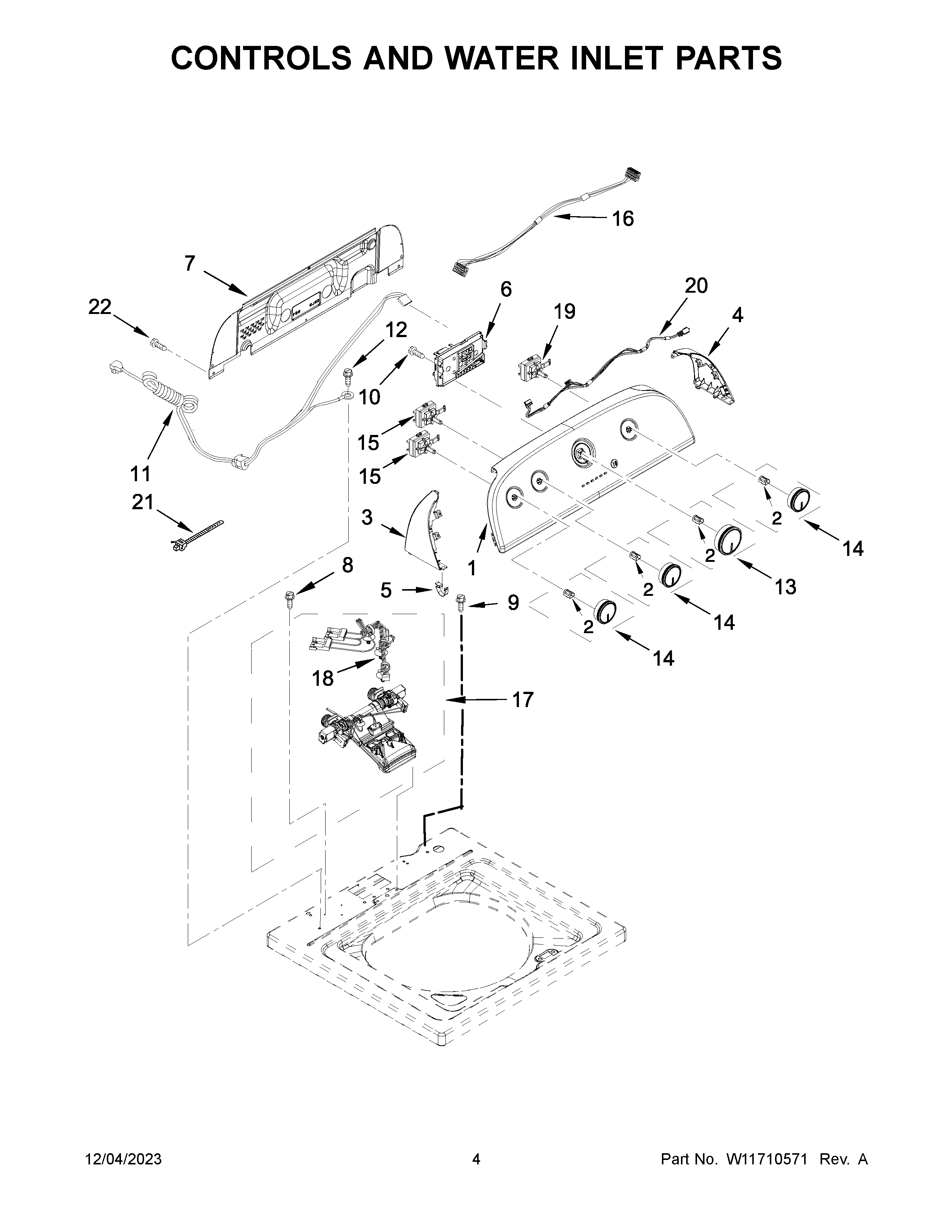

1CWTW4815EW3 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	WP688805 Whirlpool Spring Clip
3	WPW10520782 Whirlpool Panel
4	WPW10520780 Whirlpool Panel
5	WP8312709 Whirlpool Endcap Clip
6	W11607631-includeCORE Whirlpool W11607631 Washer Electronic Control Board + Core
7	W10552335 Whirlpool Rear Panel
8	W11685943 Whirlpool Screw
9	WPW10213953 Whirlpool Screw
10	WP90767 Whirlpool Screw
11	W10877409 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	W10756270 Whirlpool Dryer Timer Knob
15	WPW10285512 Whirlpool Cycle Switch
16	W10694682 Whirlpool Wire Harness
17	W11641117 Whirlpool Valve
18	W10701401 Whirlpool Wire Harness
19	WPW10285511 Whirlpool Cycle Switch
20	W10786100 Whirlpool Wire Harness
21	W10339680 Whirlpool Wire Tie
22	W11568617 Whirlpool Screw
