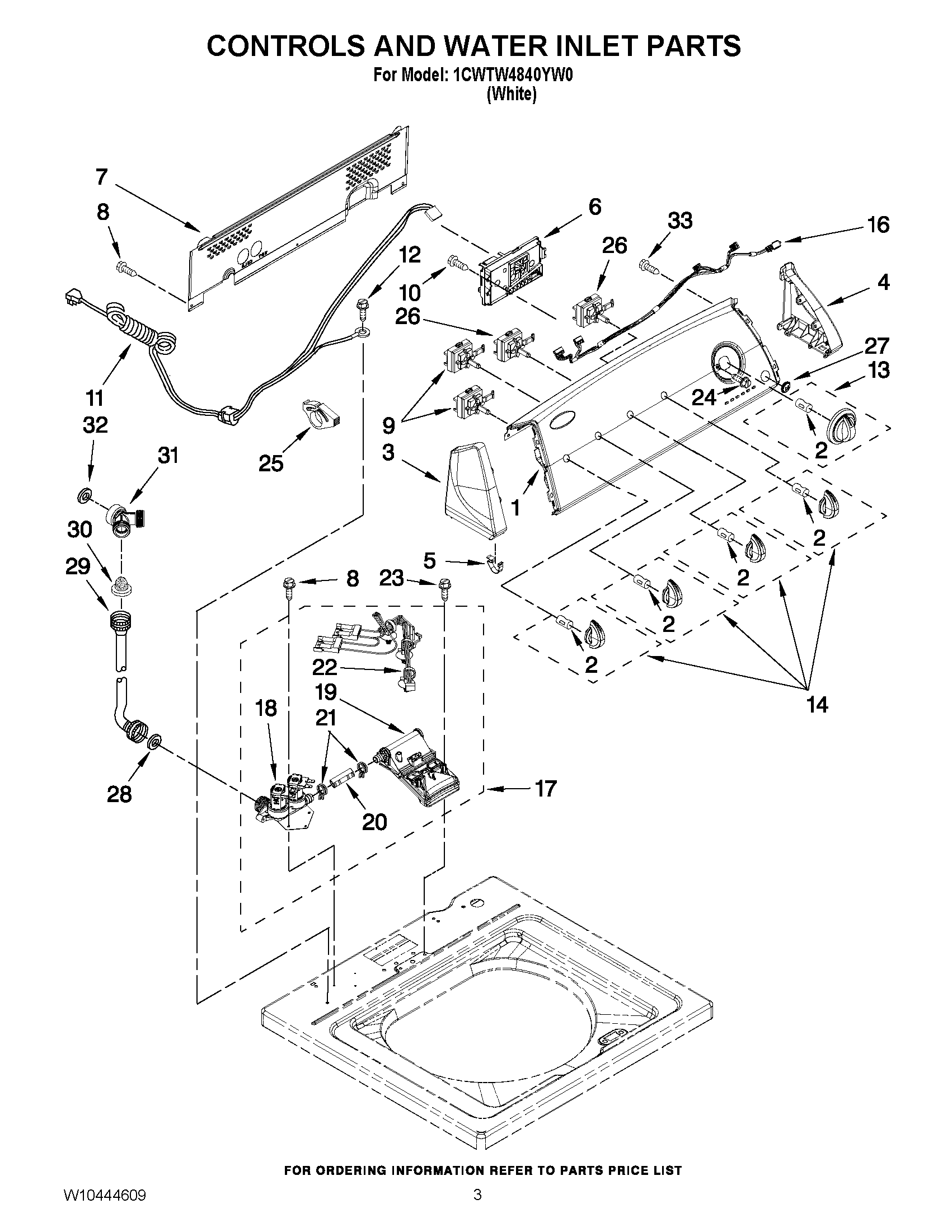

1CWTW4840YW0 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	WPW10420692 Whirlpool Control Panel
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10480621-includeCORE Whirlpool W10480621 Washer Electronic Control Board + Core
7	WPW10420985 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WPW10285512 Whirlpool Cycle Switch
10	WP90767 Whirlpool Screw
11	WPW10525194 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
16	WPW10291176 Whirlpool Wire Harness
17	WPW10432360 Whirlpool Valve
18	WPW10352256 Whirlpool Valve
19	WPW10441423 Whirlpool Vacuum Breaker
20	W10238347 Whirlpool Hose Assembly
21	WP596669 Whirlpool Hose Clamp
22	WPW10344775 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	WP3400818 Whirlpool Screw
25	WPW10663966 Whirlpool Washer Water Level Switch
26	WPW10285511 Whirlpool Cycle Switch
27	WPW10251309 Whirlpool Push Button
28	WP16123 Whirlpool Washer
29	WP89503 Whirlpool Washer Fill Hose
30	285452A Whirlpool Hose Seal and Screen
31	WPW10269488 Whirlpool Connector
32	WP3357450 Whirlpool Washer Assembly
33	3400073 Whirlpool Screw
