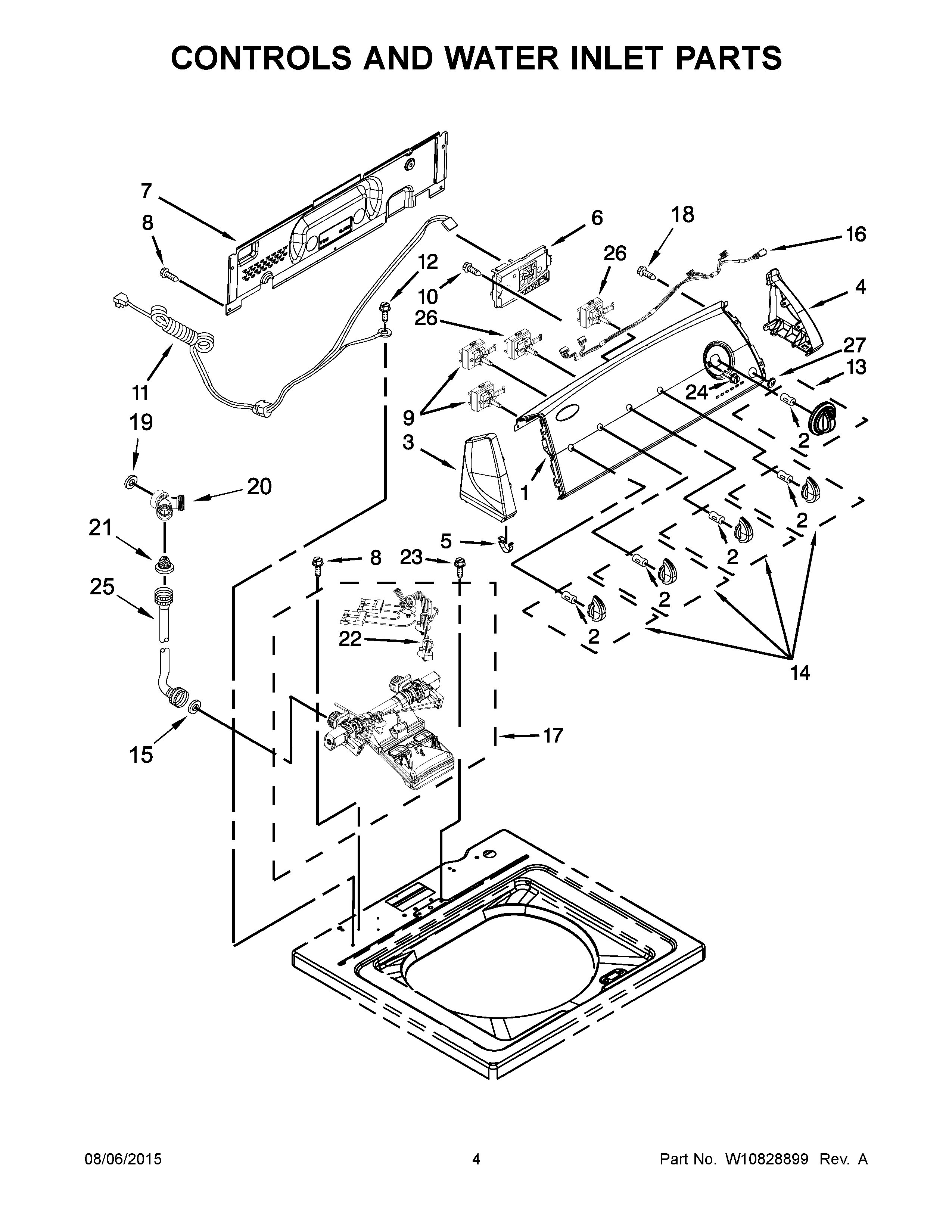

1CWTW4840YW2 03 – CONTROLS AND WATER INLET PARTS

1CWTW4840YW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

1CWTW4840YW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1WPW10420692 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10832727-includeCORE Whirlpool W10832727 Electronic Control Board with Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WP16123 Whirlpool Washer
16WPW10291176 Whirlpool Wire Harness
17WPW10683653 Whirlpool Valve Assembly
183400073 Whirlpool Screw
19WP3357450 Whirlpool Washer Assembly
20WPW10269488 Whirlpool Connector
21285452A Whirlpool Hose Seal and Screen
22W10876654 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WP3400818 Whirlpool Screw
25WP89503 Whirlpool Washer Fill Hose
26WPW10285511 Whirlpool Cycle Switch
27WPW10251309 Whirlpool Push Button
