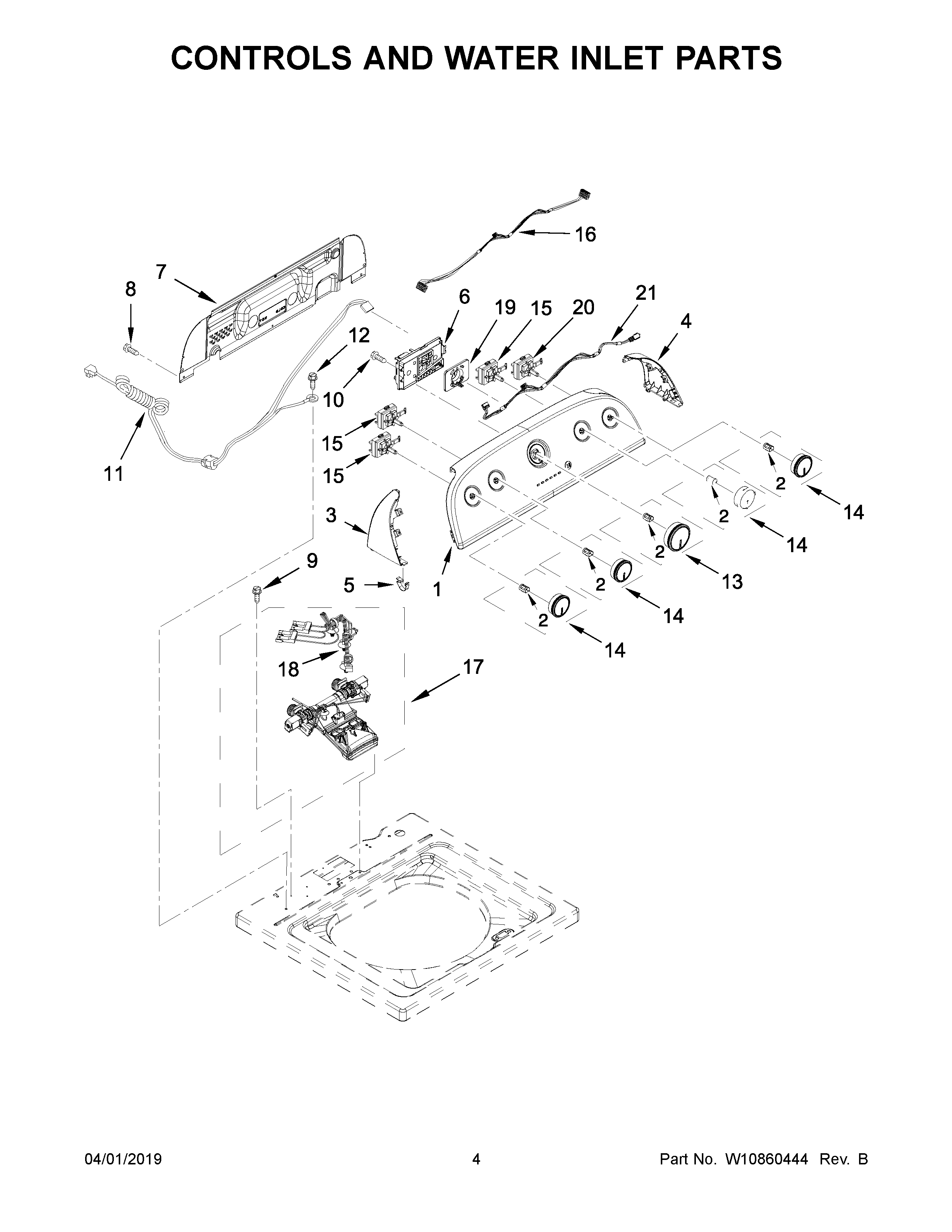

1CWTW4845EW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL-CNTL
2WP688805 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10916234 Whirlpool Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17W11210461 Whirlpool Valve
18W10868094 Whirlpool Wire Harness
19W11084340 Whirlpool Push Button
20WPW10285511 Whirlpool Cycle Switch
21W10786100 Whirlpool Wire Harness
