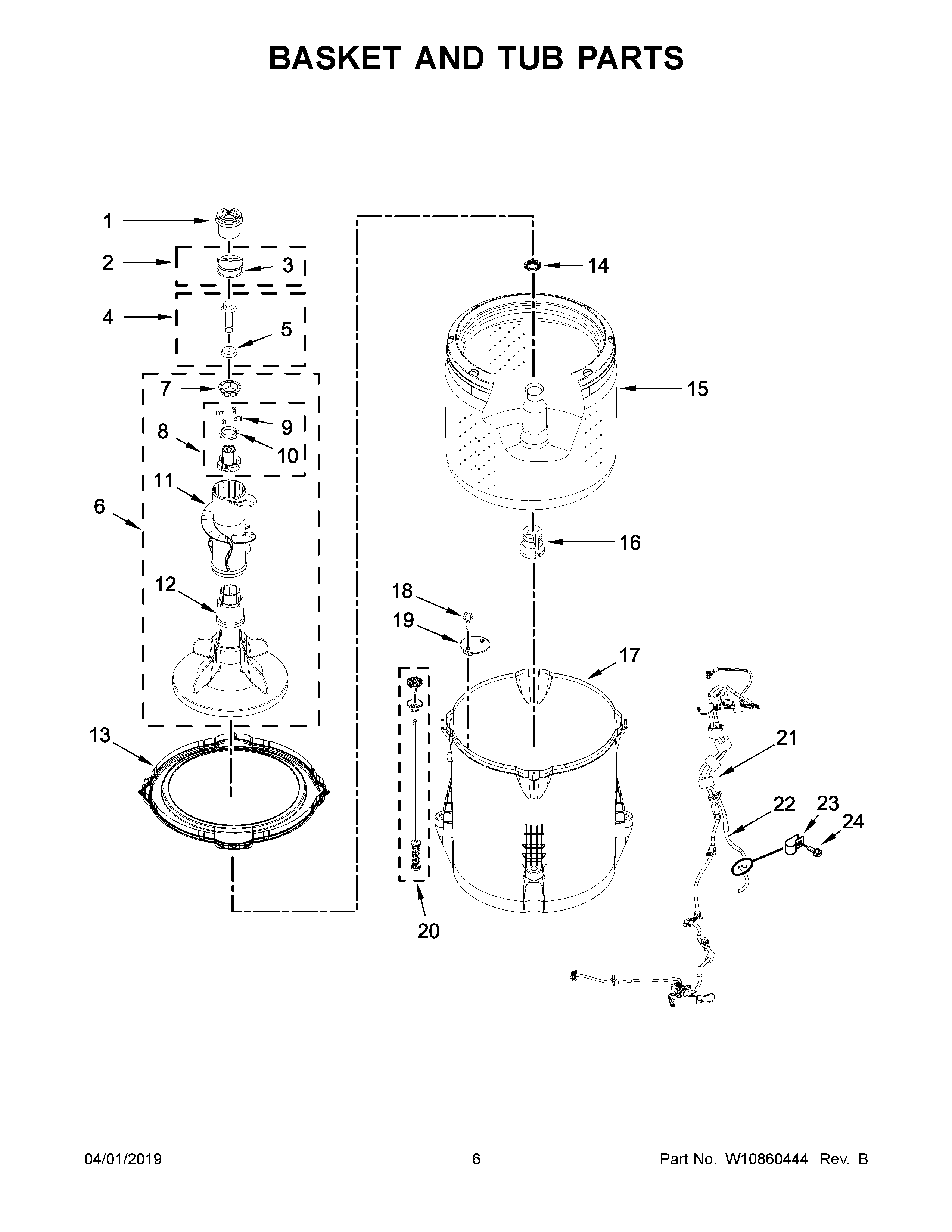

1CWTW4845EW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7285587 Whirlpool Thrust Washer
8285811 Whirlpool Washer Agitator Repair Kit
980040 Whirlpool Washer Agitator Dog Kit
10WP3363661 Whirlpool Bearing Cam
11WP3348752 Whirlpool Agitator Mover
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17W10371566 Whirlpool Outer Tub
18WP8533928 Whirlpool Refrigerator Screw
19WPW10215093 Whirlpool Filter
20W10780045 Whirlpool Suspension Rod
21W10678684 Whirlpool Wire Harness
22WP353244 Whirlpool Hose
23W10005430 Whirlpool Clamp
24WPW10109200 Whirlpool Screw
