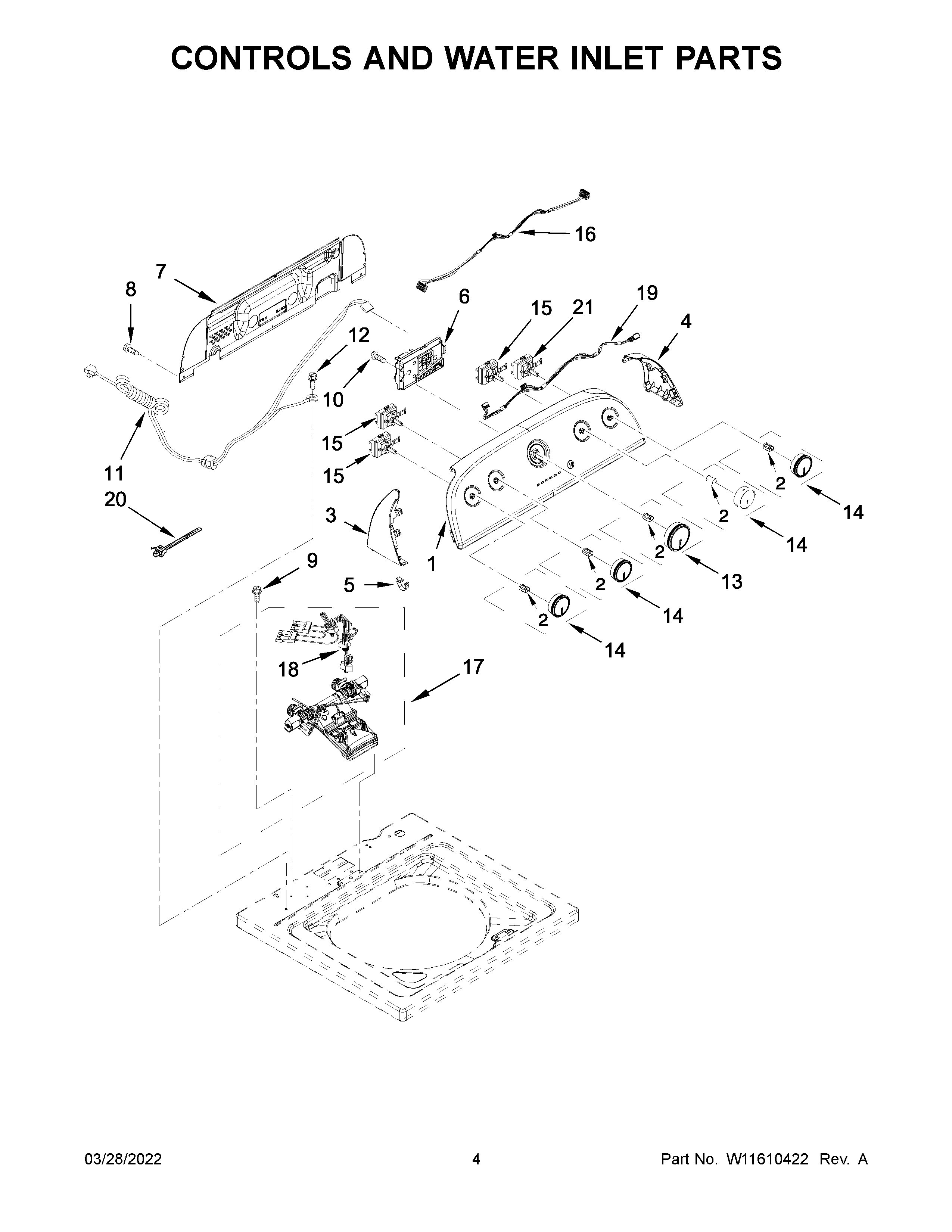

1CWTW4845EW2 03 – CONTROLS AND WATER INLET PARTS

1CWTW4845EW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

1CWTW4845EW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL-CNTL
2WP688805 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11607633-includeCORE Whirlpool W11607633 Refrigerator Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17W11614511 Whirlpool Valve
18W10701401 Whirlpool Wire Harness
19W10786100 Whirlpool Wire Harness
20W10339680 Whirlpool Wire Tie
21WPW10285511 Whirlpool Cycle Switch
