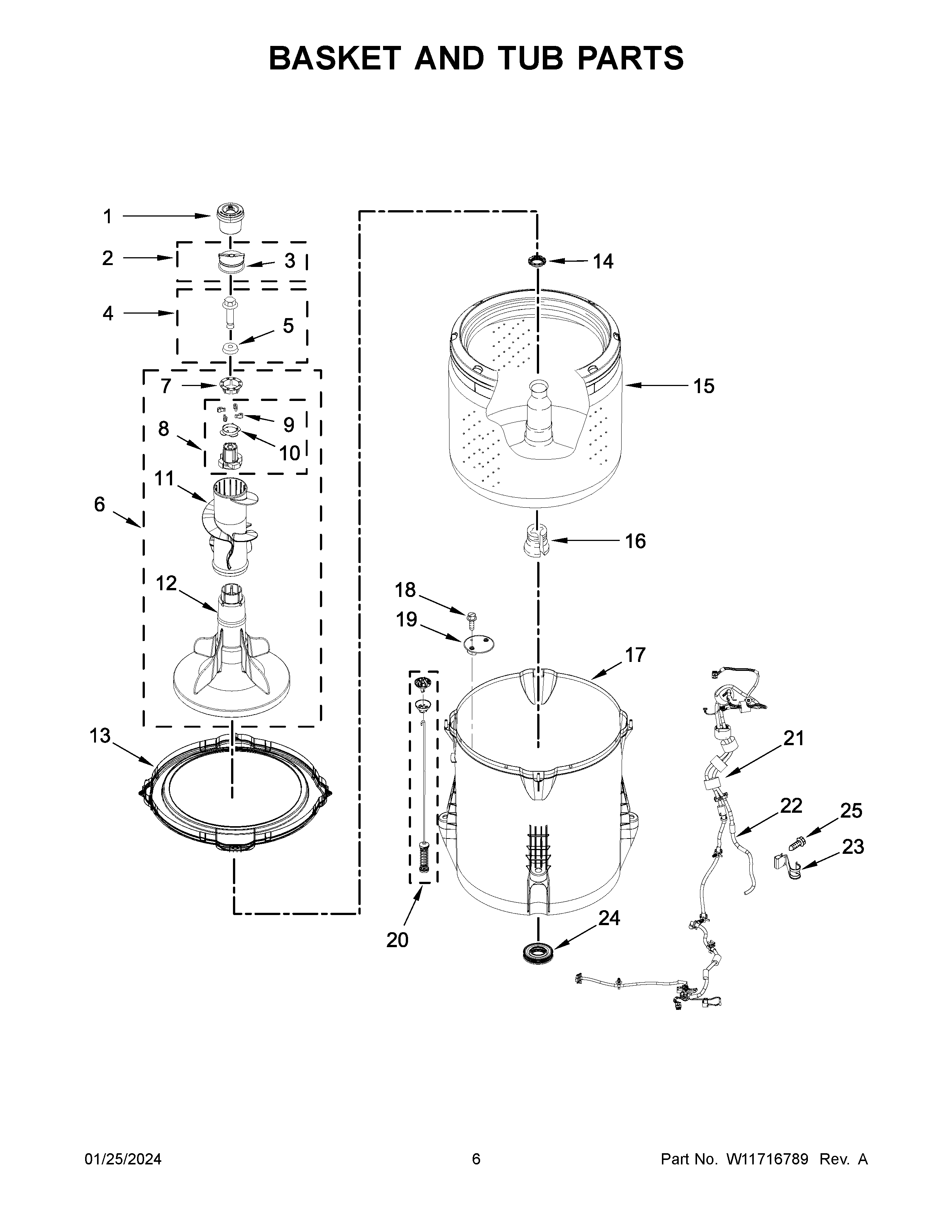

1CWTW4845EW3 04 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	285565 Whirlpool Agitator Assembly
7	285587 Whirlpool Thrust Washer
8	285811 Whirlpool Washer Agitator Repair Kit
9	80040 Whirlpool Washer Agitator Dog Kit
10	WP3363661 Whirlpool Bearing Cam
11	WP3348752 Whirlpool Agitator Mover
12	AGITATOR
13	WPW10531289 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10554251 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	W10371566 Whirlpool Outer Tub
18	WP8533928 Whirlpool Refrigerator Screw
19	WPW10215093 Whirlpool Filter
20	W10780045 Whirlpool Suspension Rod
21	HARNESS, LOWER (INCLUDES PRESSURE HOSE)
22	WP353244 Whirlpool Hose
23	CLIP
24	W10324647 Whirlpool Seal Tub
25	WPW10109200 Whirlpool Screw
