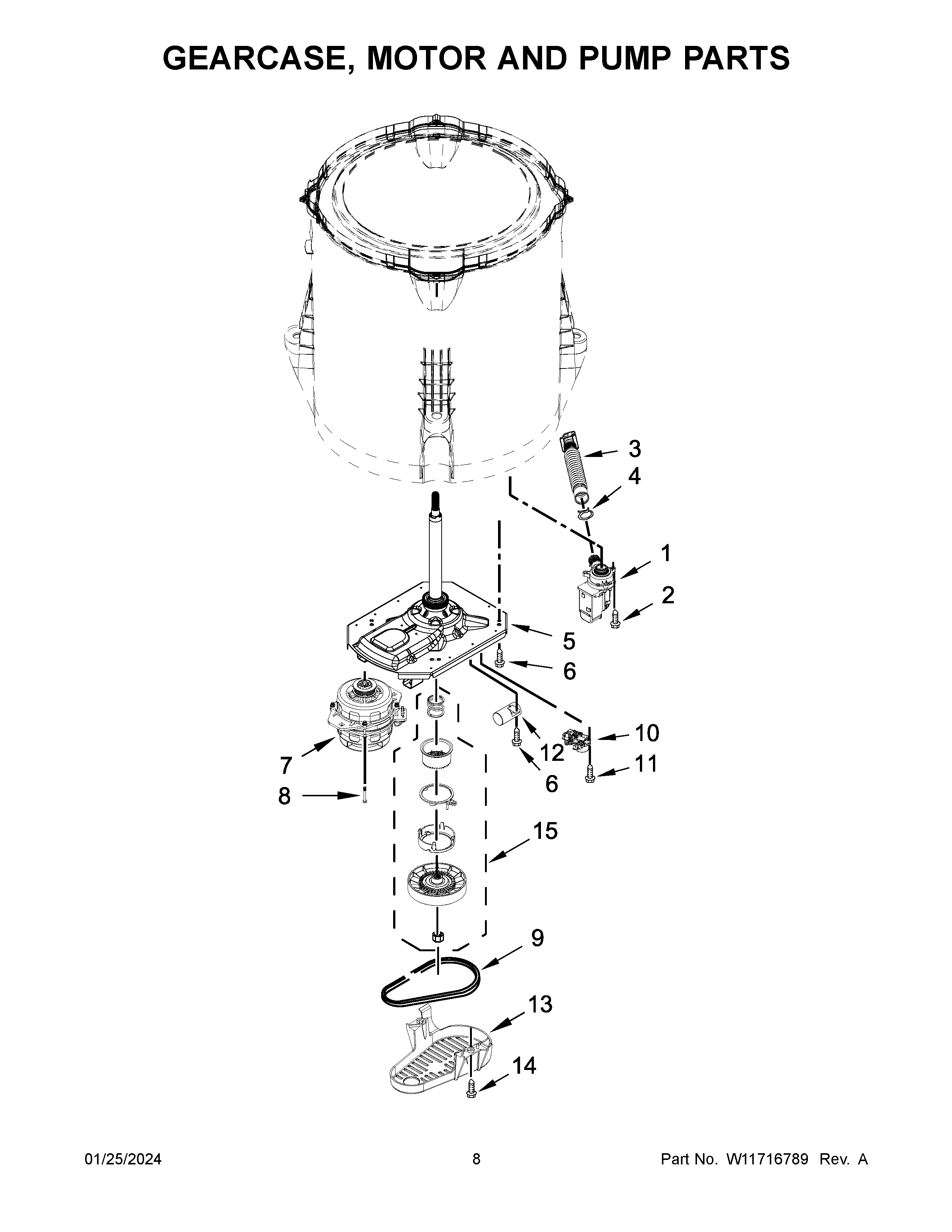

1CWTW4845EW3 05 – GEARCASE, MOTOR AND PUMP PARTS

1CWTW4845EW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

1CWTW4845EW3 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	WPW10465543 Whirlpool Water Pump
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	WPW10677715 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	W11239857 Whirlpool Washer Belt
10	ACTUATOR
11	W11596033 Whirlpool Microwave Screw
12	CAPACITOR, MOTOR RUN
13	WPW10427633 Whirlpool Belt Shield
14	W11573574 Whirlpool Screw
15	W10721967 Whirlpool Washer Cam Kit
