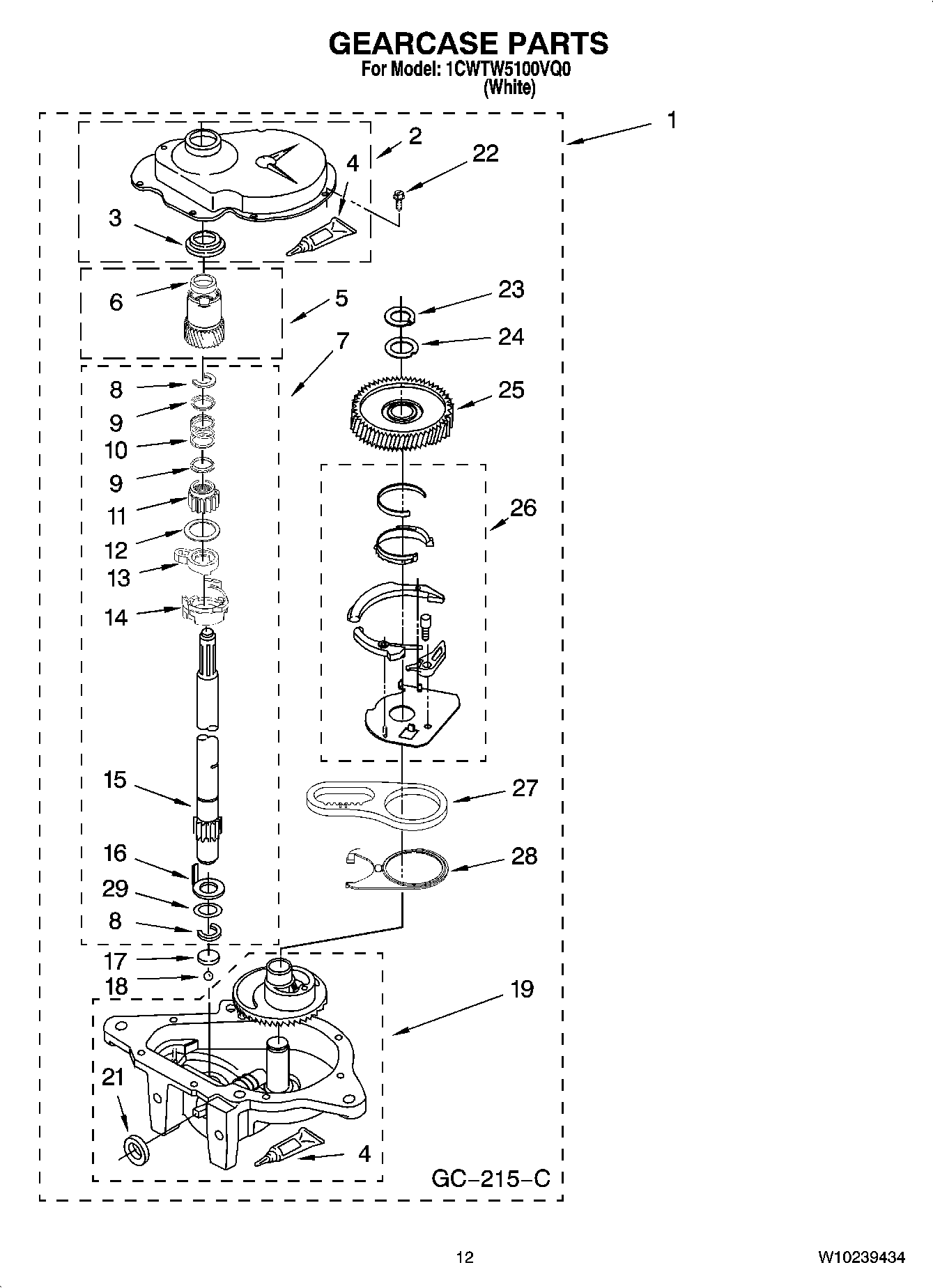

1CWTW5100VQ0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI139793A
	8212641RP Whirlpool 5' Black Epdm Rubber Washer Hose Kit – 2 Pack
	285452A Whirlpool Hose Seal and Screen
	Drain Hose Adapter Kit
	280129A Whirlpool Break Switch
	40922 Whirlpool Drain Hose Extension Kit
	285448A Whirlpool Washer
	8212487RP Whirlpool 5' Industrial Grade Nylon Braid Fill Hoses 2 Pack
	8212545RP Whirlpool Washer Commercial Grade 5' Red and Blue Fill Hoses, 2 Pack
	8212546RP Whirlpool Washer 4' Black Rubber Fill Hose Kit – 2 Pack
	8212638RP Whirlpool Fill Hose Assembly, 2 Pack
	8212656RP Whirlpool Fill Hose
	WPL ARI139790A
	WPL ARI139791A
	WPL ARI139792A
	WP285195 Whirlpool Sealer Assembly
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Drain Protector (Not Included)
	350572 Whirlpool Oil Transmission 15 Oz
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
6	WP356427 Whirlpool Shaft Seal
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	WP389387 Whirlpool Agitator Shaft
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Bottom and Pinion, Gearcase
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	WP3351614 Whirlpool Screw
23	Ring, Retaining
24	Washer Kit, Thrust
26	NEUTRL-PAK
27	3360629 Whirlpool Washer Gearcase Transmission
29	WP388815 Whirlpool Washer
