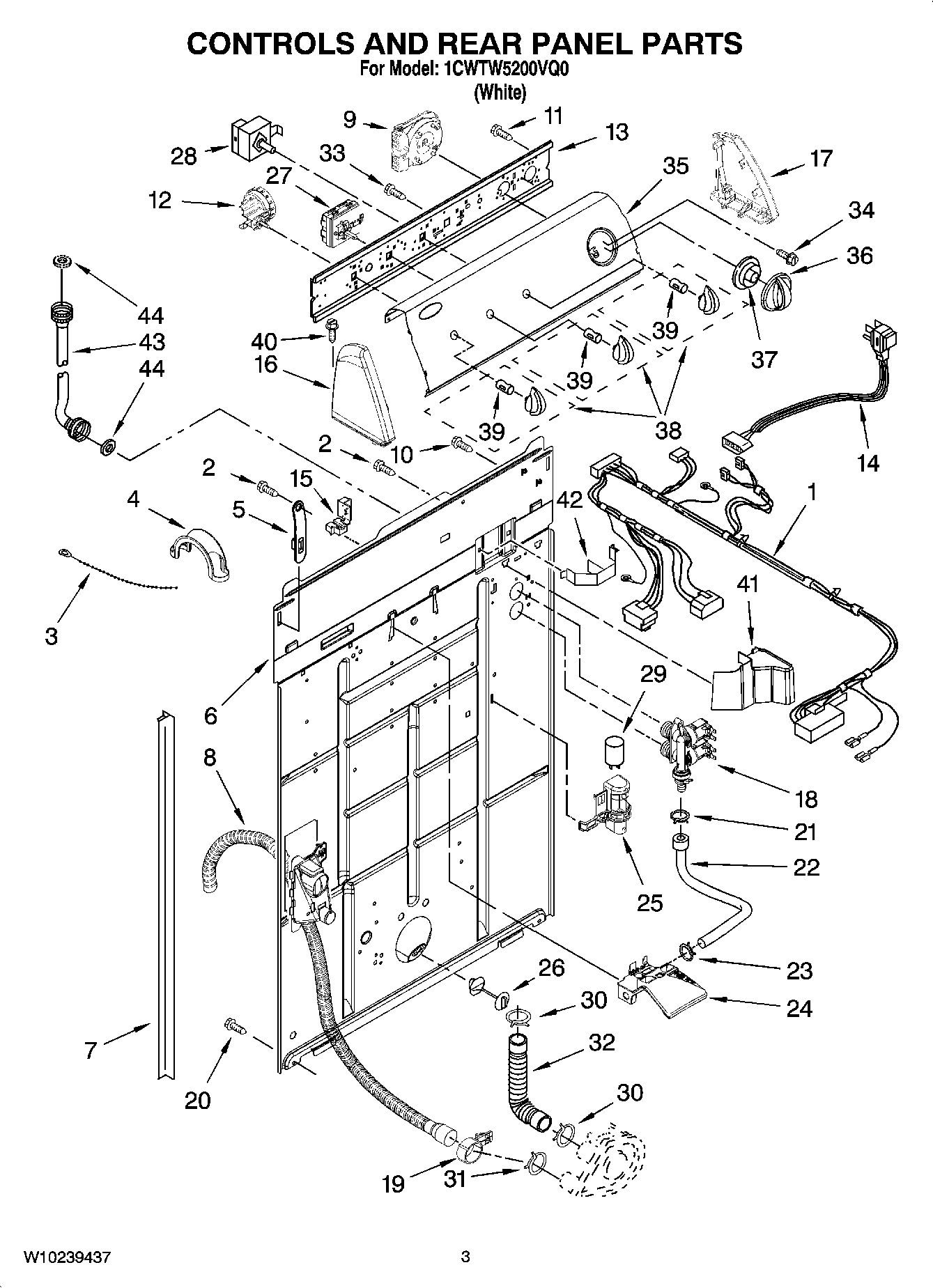

1CWTW5200VQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Harness, Wiring (For Detail See Pages 9 & 10)
2	WP9740848 Whirlpool Dishwasher Screw
3	WPW10339879 Whirlpool Wire Tie
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10189267 Whirlpool Drain Hose
9	WPW10175553 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10339334 Whirlpool Washer Water Level Control Switch
13	Bracket, Control
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	W10820038 Whirlpool Endcap
18	WP3979346 Whirlpool Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	WP3390631 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	WPW10190501 Whirlpool Hose
24	WPW10190514 Whirlpool Vacuum Break
25	Clip, Capacitor
26	WP8519200 Whirlpool Support Assembly
27	WPW10184148 Whirlpool Temperature Switch
28	W10851055 Whirlpool Cycle Switch
29	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	3400073 Whirlpool Screw
34	WP3400818 Whirlpool Screw
35	Panel, Console
36	Knob, Timer
37	WP8566018 Whirlpool Dial Assembly
38	Knob, Control
39	WP8536939 Whirlpool Spring Clip
40	WP388326 Whirlpool Screw
41	Shield, Suds
42	Clip, Harness & Pressure Hose
43	WP89503 Whirlpool Washer Fill Hose
43	FILL HOSE 5' W/WASHER
44	WP16123 Whirlpool Washer
