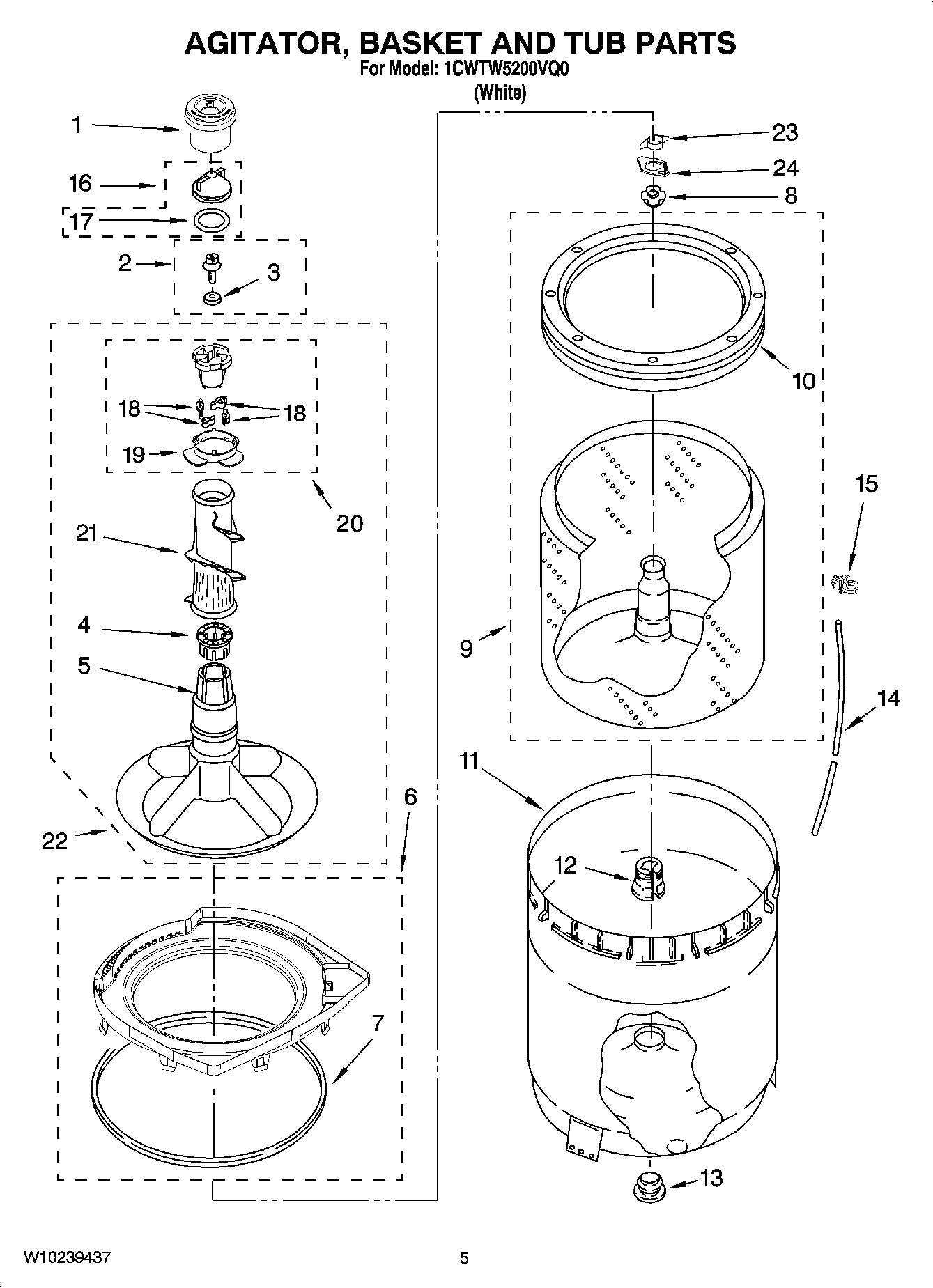

1CWTW5200VQ0 03 – AGITATOR, BASKET AND TUB PARTS

1CWTW5200VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

1CWTW5200VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3949550 Whirlpool Gasket Assembly
4WP3951608 Whirlpool Washer Agitator Thrust Spacer
5AGITATOR
6Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10WP387240 Whirlpool Balance Ring
1163849 Whirlpool Outer Tub Primary Assembly
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP353244 Whirlpool Hose
152219077 Whirlpool Refrigerator Clip
16WPW10074580 Whirlpool Agitator Inner Cap and Seal
17WPW10072840 Whirlpool Seal Assembly
1880040 Whirlpool Washer Agitator Dog Kit
19WP3952374 Whirlpool Bearing
20285809 Whirlpool Washer Agitator Cam Kit
21WP3363003 Whirlpool Agitator Mover
22285565 Whirlpool Agitator Assembly
23WP3354845 Whirlpool Clip
24WP8543666 Whirlpool Washer
