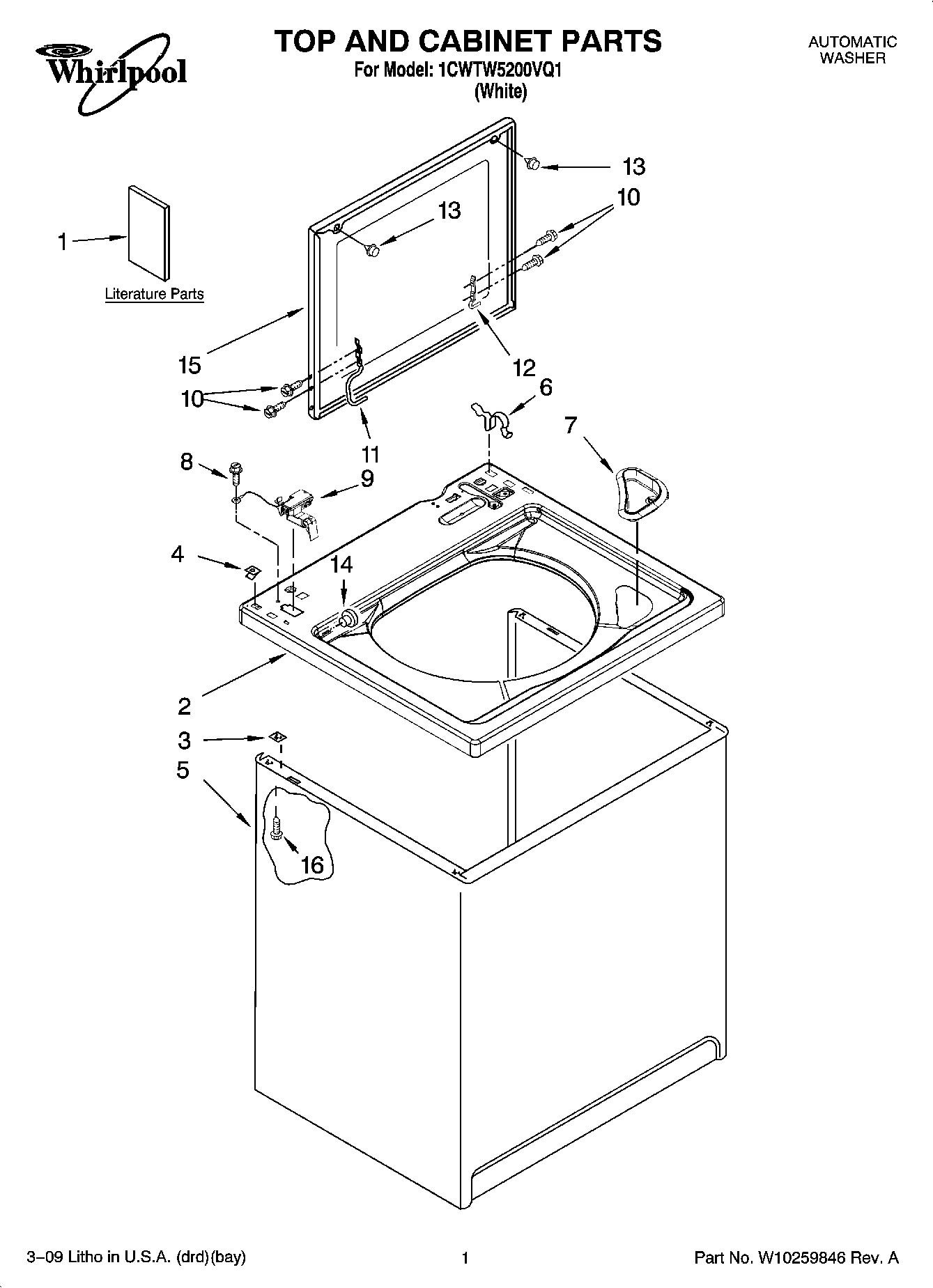

1CWTW5200VQ1 01 – TOP AND CABINET PARTS

1CWTW5200VQ1 01 – TOP AND CABINET PARTS

Written by

in

1CWTW5200VQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Feature Sheet (Spanish)
1Wiring Diagram
1Installation Instructions (English/French)
1Installation Instructions (Spanish)
1Use & Care Guide (English/French)
1Use & Care Guide (Spanish)
1Feature Sheet (English/French)
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WPW10192089 Whirlpool Washer Bleach Dispenser
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
11Hinge, Lid (L.H.)
12WP91770 Whirlpool Hinge
13WP9724509 Whirlpool Bumper
14Bearing, Lid Hinge (2)
15Lid
16W10165554 Whirlpool Screw
