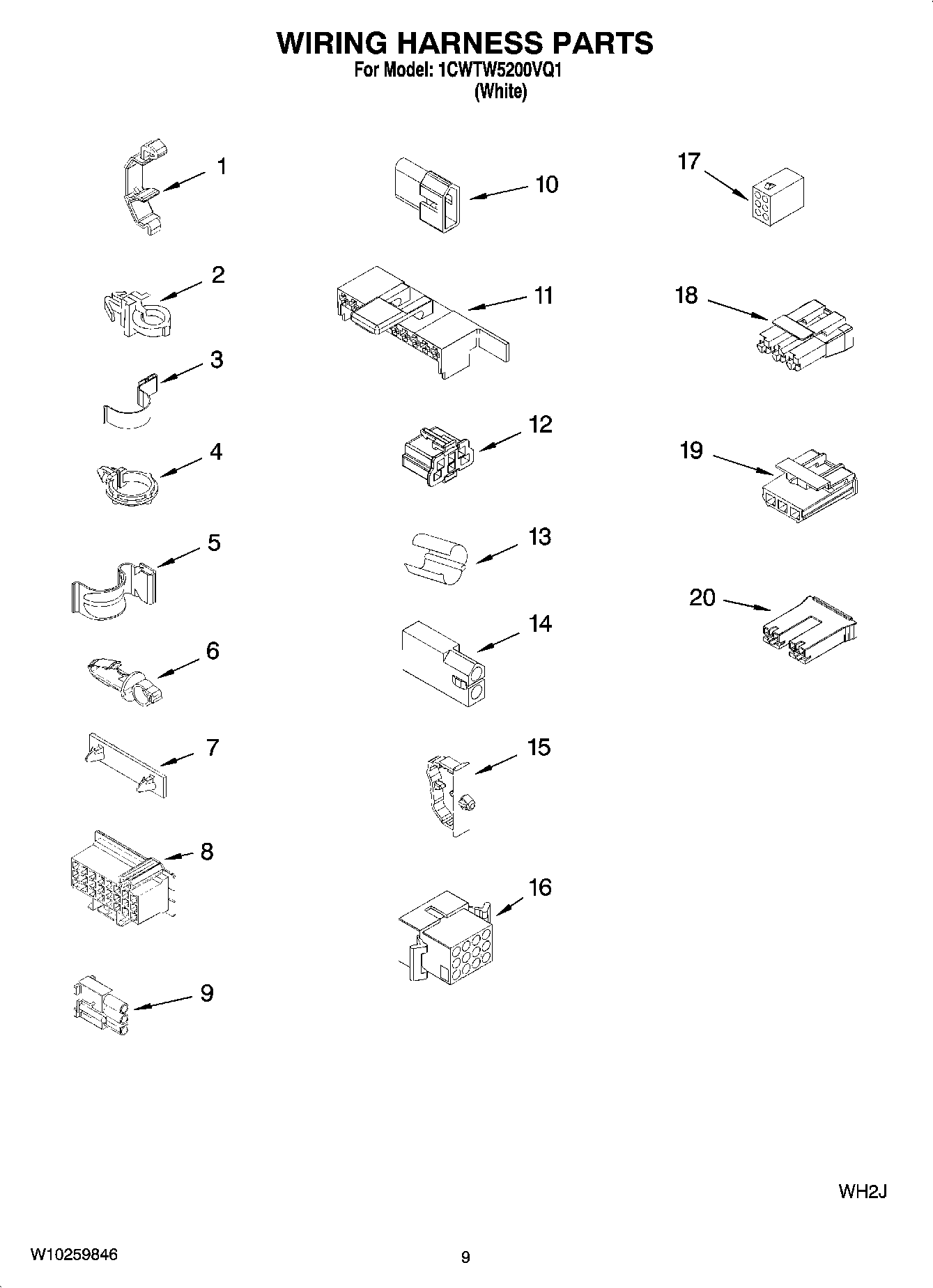

1CWTW5200VQ1 06 – WIRING HARNESS PARTS

1CWTW5200VQ1 06 – WIRING HARNESS PARTS

Written by

in

1CWTW5200VQ1 06 – WIRING HARNESS PARTS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Clip, Harness
7WP389379 Whirlpool Retainer
8W10876590 Whirlpool Connector
8Timer, Block Disconnect (White)
9WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10353424 Whirlpool Connector
11WP62505 Whirlpool Connector
12Block, Disconnect
13Protector, Harness
14Receptacle, Latching (2-Way) (Uses Terminal 94614)
15Clip, Harness
16Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
17Receptacle, (6-Way) (Use Term. 94613)
18WP2172937 Whirlpool Connector
19WP3360056 Whirlpool Connector
203354925 Whirlpool Connector
20WPL 3354926
