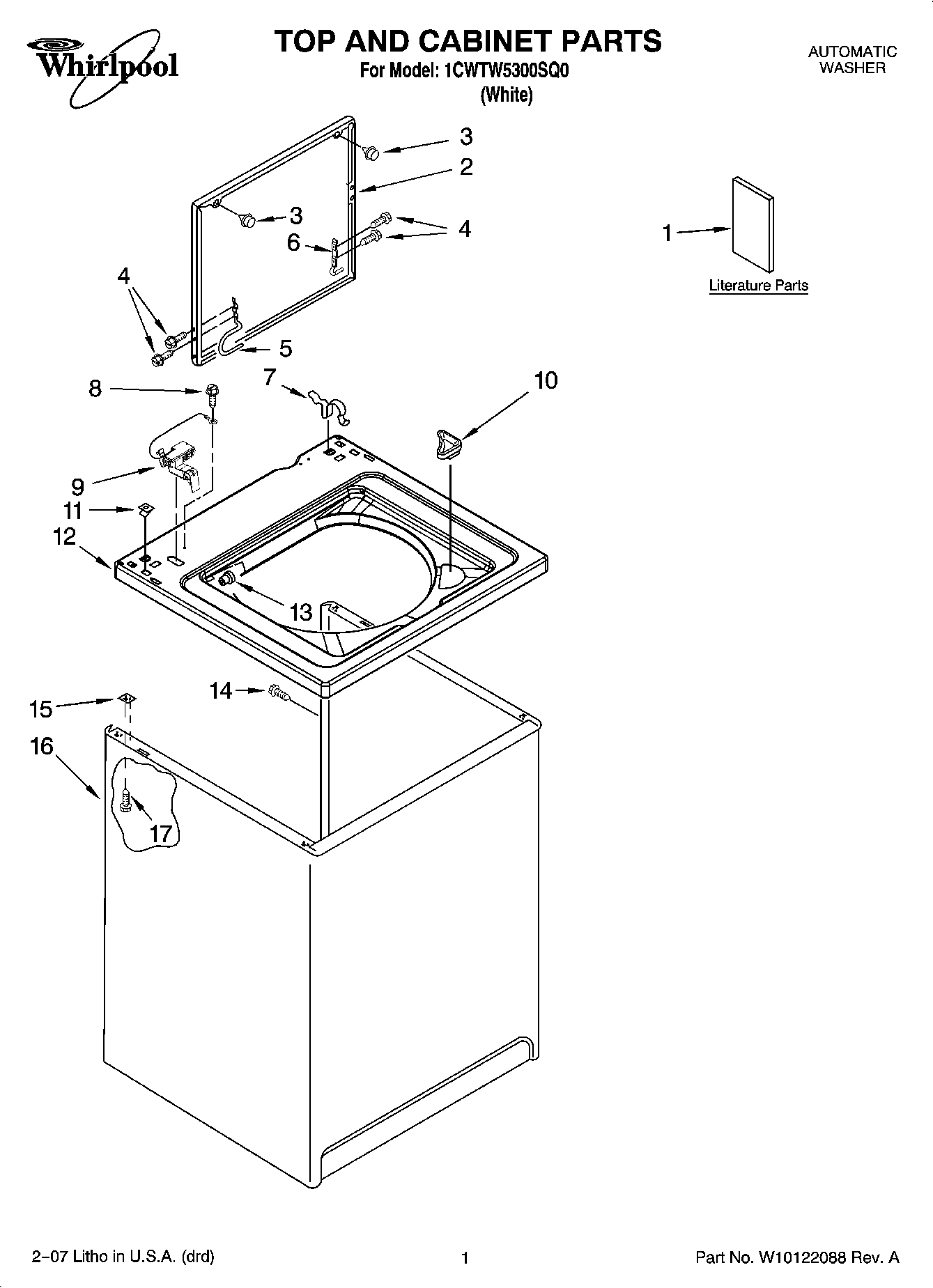

1CWTW5300SQ0 01 – TOP AND CABINET PARTS

1CWTW5300SQ0 01 – TOP AND CABINET PARTS

Written by

in

1CWTW5300SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Feature Sheet
1Use & Care Guide
1Installation Instructions
1Wiring Diagram
2WPW10193857 Whirlpool Lid Assembly
3WP9724509 Whirlpool Bumper
4SCREW
58318088 Whirlpool Hinge Assembly
6WP91770 Whirlpool Hinge
7WP62780 Whirlpool Cabinet Clip
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP3362952 Whirlpool Bezel
11WP357213 Whirlpool Hinge Stopper
12Top (White)
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP308685 Whirlpool Microwave Screw
15WP62750 Whirlpool Spacer
1663424 Whirlpool Cabinet Assembly
17WP3390631 Whirlpool Screw
